Description

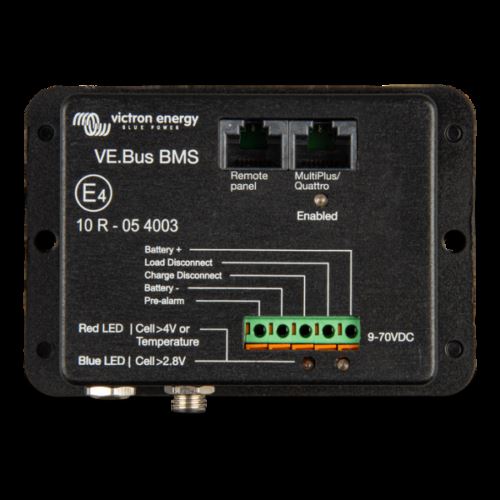

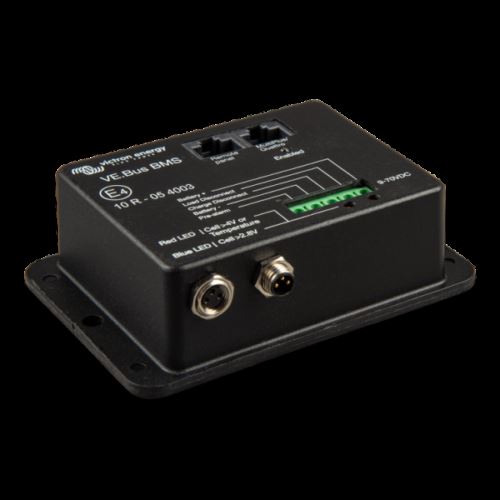

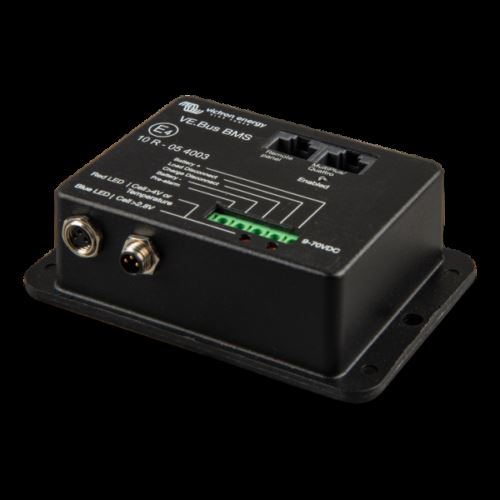

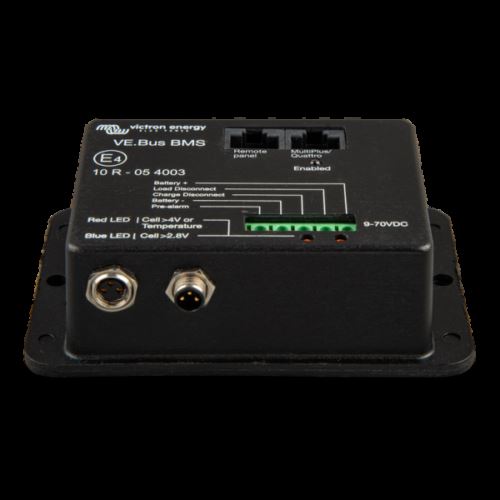

Victron VE.Bus BMS, 5 Year Warranty. The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery.
Each individual cell of a LiFePO4 battery must be protected against over-voltage, under-voltage and over-temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy-chained. Please see our LiFePO4 battery documentation for details.
The BMS will:
Shut down or disconnect loads in case of an imminent cell under voltage.
Reduce charge current in case of imminent cell overvoltage or over temperature (VE.Bus products only, see below).
Shut down or disconnect battery chargers in case of imminent cell overvoltage or over temperature.
SPECIFICATIONS
Product Name: Victron VE.Bus BMS, 5 Year Warranty
SKU: BMS300200000
GTIN (Global Trade Item Number): 8719076021032
Brands: Victron
Product Category: Accessories
Length (mm): 106
Width (mm): 42.5
Height (mm): 23
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
