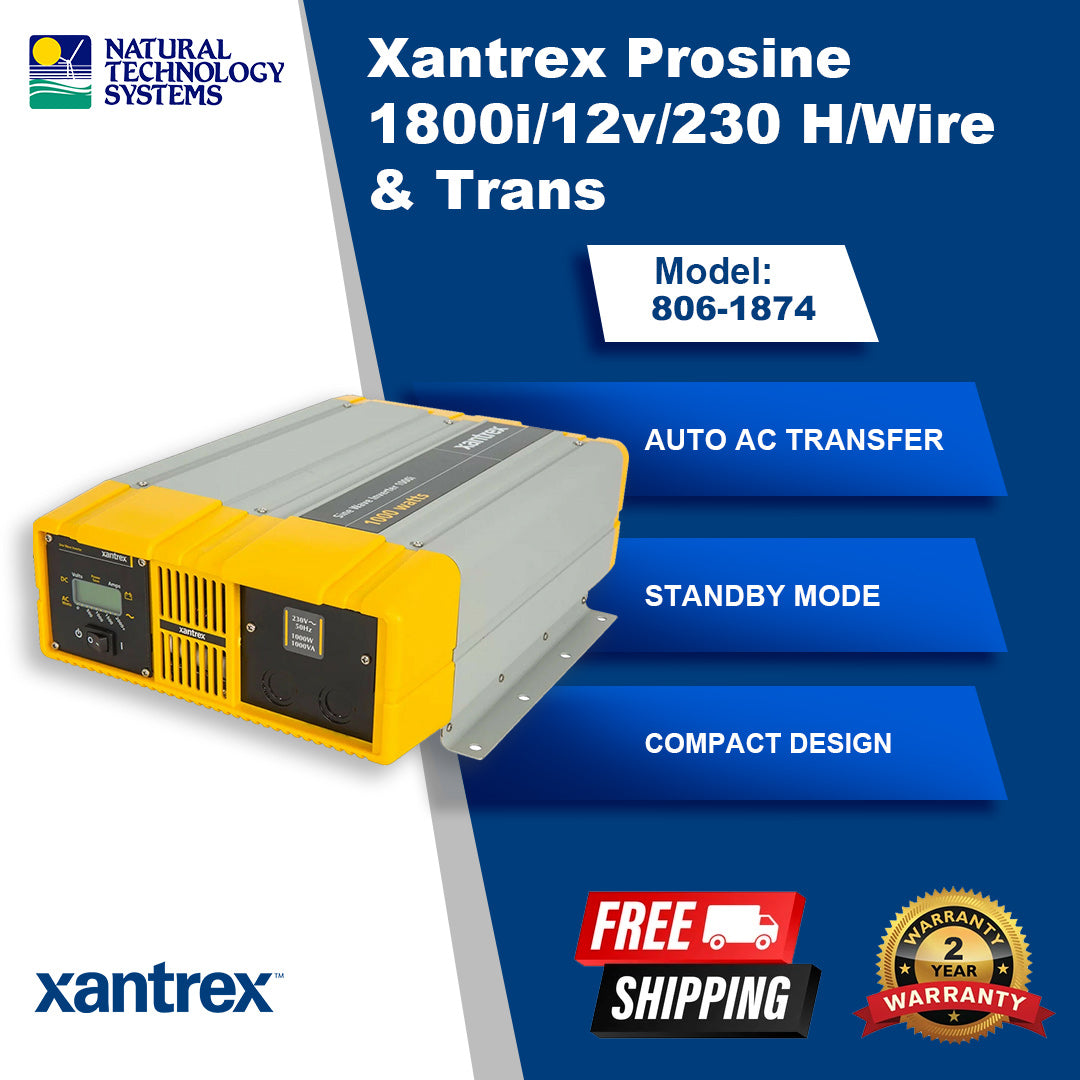

Xantrex PROsine Inverters produce clean, true sine wave AC power from DC battery power. Designed for recreational, industrial and back up power applications. The PROsine inverter's 230-volt, 50-Hertz AC power output is capable of handling both heavy duty AC loads and smaller, multiple AC loads.

Removable LCD remote control panel for inverter control and status.
Easy to use Powersave mode for low stand-by current draw.
Seamless AC mains to inverter transfer switch included (almost no break time on AC transfer). Hardwire terminal strip inside unit for connections
Advanced cooling design to ensure maximum efficiency.
Auto AC transfer switch
1000 watts or 1800 watts of constant power rated at 40° Celsius.
2 year warranty

LIGHT & COMPACT

PROsine is lighter and more compact than other inverters with similar power ratings because it uses high-frequency switching technology in the power conversion process. The power ratings of PROsine are taken at 40° Celsius, and this coupled with the unique cooling tunnel design means the heat is quickly removed from the unit. This cooling tunnel design helps PROsine to provide power for loads up to 50% greater than its constant output.

FEATURES

INNOVATIVE FEATURES

PROsine features, as standard, a removable LCD remote control panel. This panel can be located anywhere you choose & provides status information such as battery voltage, DC amperage being consumed and the AC wattage of your appliances. More importantly it provides an on/off switch to completely shutdown the unit when not in use (zero amperage drain on battery).

The DC battery cable connection points are 8mm bolt posts that allows for DC cable connection of any size battery cable in a 180° rotation – Remember: Battery cables are the lifeline to your inverter. The bigger the better.

One of the best features of the PROsine is the seamless AC automatic transfer switch. This allows for the easy integration into the onboard AC power system to provide seamless integration between the mains / generator power and inverter power.

POWERSAVE MODE

All inverters use DC power while not being used, and PROsine can easily be switched into powersave mode (by the remote control panel), which drops the stand by current to less than .1 of an amp. Power is restored if you turn an appliance on (2.5 second search mode), or simply switch the inverter back into normal power mode, with a stand by current of around .75 amps.

Standby Mode – A valuable power saving feature which automatically turns your inverter ON and OFF with load.
Compact Design – Use high frequency switching technology for the power conversion process which allows the inverters to be lighter and more compact than others with similar continuous ratings.
Convenience – Removable LCD display which can be mounted remotely for control and monitoring.
Reliability – Backed by a 2 year warranty. Excellent reputation for quality and reliability.
Auto AC Transfer – Incorporates an auto AC transfer switch for automatic transfer from mains or generator supply to inverter supply.

SPECIFICATIONS

Model – Description	PROsine 1800i 12 Volt Inverter
Enerdrive Code	806-1874
Output Power @ 40°C	1800w
Surge Capacity (Peak) @ 40°C	2900w
Peak Output Power (Instant)	4800w
Output Voltage	230 Vac RMS ± 3%
Output Frequency	50 Hz ± 0.05
Output Waveform	True sinewave
Peak Efficiency	0.9
No Load Current Draw (search mode)	<0.125 amp
No Load Current Draw (idle mode)	<0.183 amp
Input Voltage Range	10 – 16 Vdc
Transfer Time	Max 2 cycles (typically 1 cycle) <2.5 secs with Powersave “ON”
Max Current Transfer Relay	15A
Operating Temperature Range	0°C to 60°C
Display	LCD (can be mounted remotely) (Requires extension cable. Please advise when ordering).
Battery Connection	Hardwire
Mounting Bracket	Built in
Internal DC Fuse	Yes – Not User Replaceable
Auto AC Transfer Switch	Yes
Dimensions (HxWxL)	115x280x390 mm
IP Rating	IP20
Weight	7.5 Kg
Warranty	2 Years

WARRANTY

2-year warranty - Xantrex warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions) for up to 2 years from the date of purchase.
