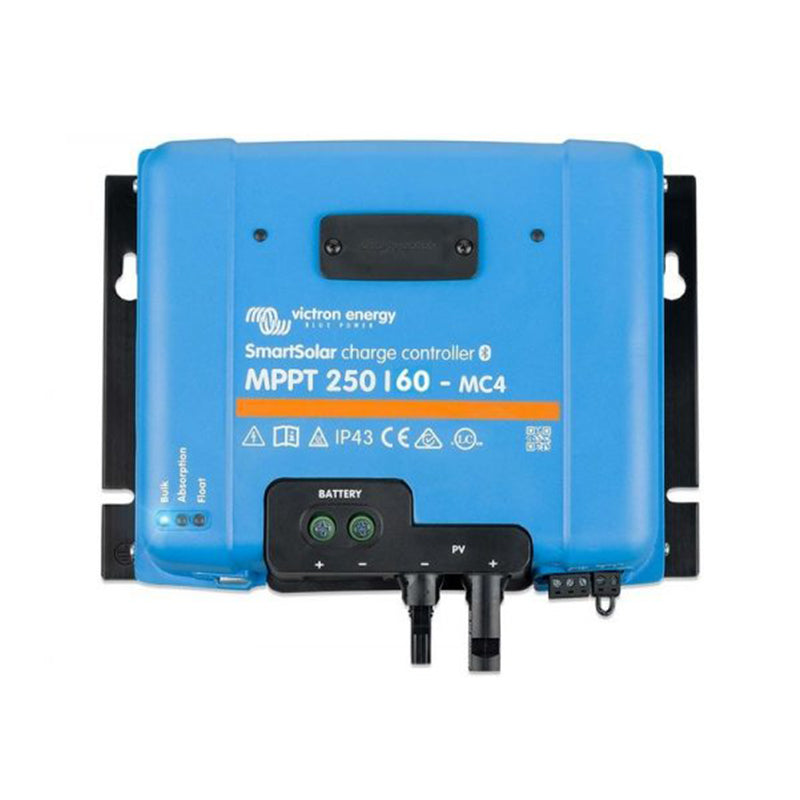

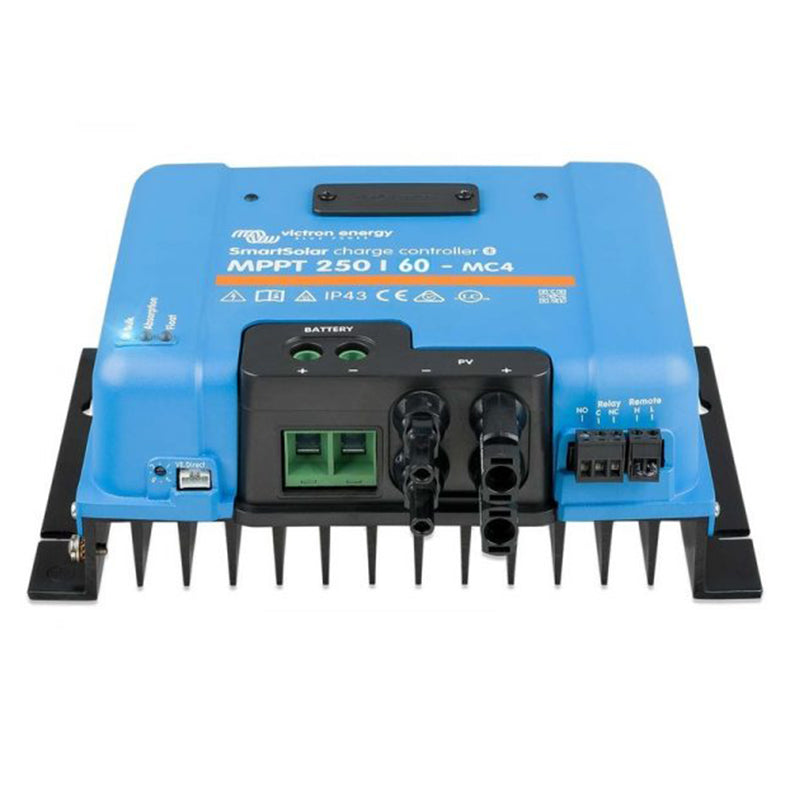

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Bluetooth Smart built-in: dongle not needed- The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.
VE.Direct- For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultra-fast Maximum Power Point Tracking (MPPT)- Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions- If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency- No cooling fan. Maximum efficiency exceeds 99%.
Flexible charge algorithm- Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Programming, real-time data and history display options- Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
Programmable relay- Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events.
Optional: pluggable LCD display- Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display.
Remote on-off- To connect for example to a VE.BUS BMS.
Extensive electronic protection- Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
Internal temperature sensor- Compensates absorption and float charge voltage for temperature.
|SmartSolar Charge Controller||MPPT||MPPT||MPPT||MPPT|
|Battery Voltage||12 / 24 / 48V Auto Select(Software tool needed to select 36V)|
|Rated charge current||60A||70A||85A||100A|
|Nominal PV power, 12V 1a,b)||860W||1000W||1200W||1450W|
|Nominal PV power, 24V 1a,b)||1720W||2000W||2400W||2900W|
|Nominal PV power, 48V 1a,b)||3440W||4000W||4900W||5800W|
|Max. PV short circuit current 2)||50A (max 30A per MC4 conn.)||70A (max 30A per MC4 conn.)|
|Maximum PV opencircuit voltage||250V absolute maximum coldest conditions|
|245V start-up and operating maximum|
|Self-consumption||Less than 35mA @ 12V / 20mA @ 48V|
|Charge voltage 'absorption'||Default setting: 14,4 / 28,8 / 43,2 / 57,6V|
|(adjustable with: rotary switch, display, VE.Direct or Bluetooth)|
|Charge voltage 'float'||Default setting: 13,8 / 27,6 / 41,4 / 55,2V|
|(adjustable: rotary switch, display, VE.Direct or Bluetooth)|
|Charge algorithm||multi-stage adaptive|
|Temperature compensation||-16 mV / -32 mV / -64 mV / °C|
|Protection||Battery reverse polarity (fuse, not user accessible)|
|PV reverse polarity / Output short circuit / Over temperature|
|Operating temperature||-30 to +60°C (full rated output up to 40°C)|
|Maximum altitude||5000m (full rated output up to 2000m)|
|Data communication port||VE.Direct or Bluetooth|
|Remote on/off||Yes (2 pole connector)|
|AC rating: 240VAC / 4A|
|DC rating: 4A up to 35VDC, 1A up to 60VDC|
|Parallel operation||Yes (not synchronized)|
|Colour||Blue (RAL 5012)|
|PV terminals 3)||35 mm² / AWG2 (Tr models)|
|Two sets of MC4 connectors (MC4 models 250/60 and 250/70)|
|Three sets of MC4 connectors (MC4 models 250/85 and 250/100)|
|Battery terminals||35mm² / AWG2|
|Protection category||IP43 (electronic components), IP22 (connection area)|
|Dimensions (h x w x d) in mm||Tr models: 185 x 250 x 95||Tr models: 216 x 295 x 103|
|MC4 models: 215 x 250 x 95||MC4 models: 246 x 295 x 103|
|Safety||EN/IEC 62109-1, UL 1741, CSA C22.2|
|1a) If more PV power is connected, the controller will limit input power.|
|1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V.|
|2) A PV array with a higher short circuit current may damage the controller.|
|3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels|
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
