Description

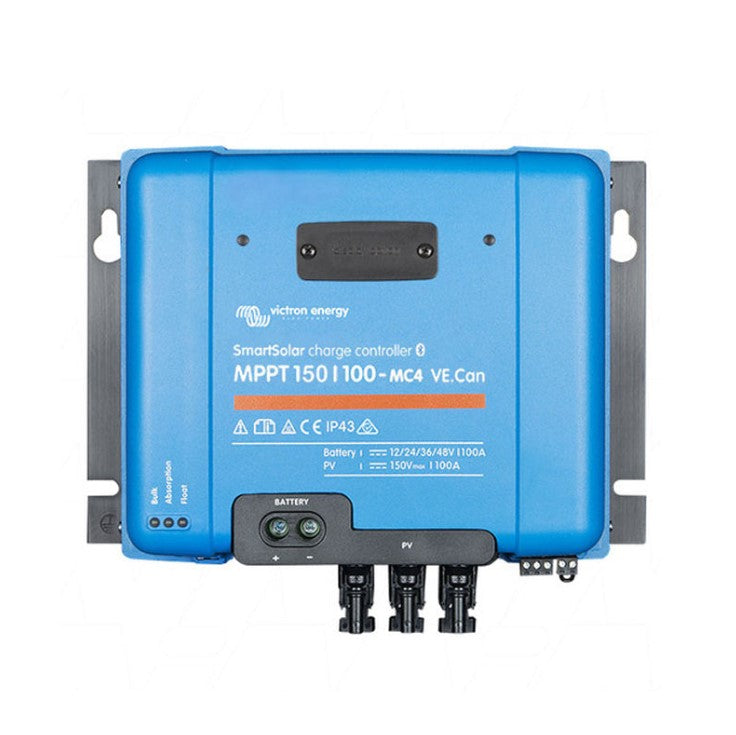

| Product Name | Victron SmartSolar MPPT 150/100-Tr VE.Can SCC115110411 | Victron SmartSolar MPPT 150/100-MC4 VE.Can SCC115110511 |
| DESCRIPTIONS | Victron SmartSolar MPPT 150 VOC / 100A Tr VE.Can Charge Controller | A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. |
| FEATURES | >Solar charge controller | > Ultra Fast Maximum Power Point Tracking |
| >MPPT: Ultra Fast Maximum Power Point Tracking | >Remote Monitoring and Control | |
| >Control Your Charger Remotely | >Optional SmartSolar Control Display | |
| > Daisy Chain Additional Units | > Ultra-fast Maximum Power Point Tracking (MPPT) | |
| > Remote Monitoring and Control | >Advanced Maximum Power Point Detection in case of partial shading conditions | |
| > SmartSolar Control Display | > Outstanding conversion efficiency | |
| > Flexible charge algorithm | ||
| > Extensive electronic protection | ||
| > Internal temperature sensor | ||
| > Bluetooth Smart built-in: dongle not needed | ||
| > VE.Direct | ||
| > Remote on-off | ||
| > Programmable relay | ||
| > Optional: pluggable LCD display |
SPECIFICATIONS
| Product Name | Victron SmartSolar MPPT 150/100-Tr VE.Can SCC115110411 | Victron SmartSolar MPPT 150/100-MC4 VE.Can SCC115110511 |
| SKU | SCC115110411 | SCC115110511 |
| GTIN (Global Trade Item Number) | 8719076050339 | 8719076050360 |
| Brands | Victron | Victron |
| Product Category | Solar Charge Controllers | Solar Charge Controllers |
| Model | SCC115110411 | SCC115110511 |
| Net Weight (kg) | 4.5 | 4.5 |
| Efficiency | 98% (Max) | 98% (Max) |
| Humidity | 95%, non-condensing | 95%, non-condensing |
| Voltage | 12/24/48V Auto Select (36V: manual) | 12 / 24 / 48V Auto Select |
| Nominal PV Power: | 12V - 1200W | 24V - 2400W | 12V: 1450W | 24V: 2900W | 36V: 4350W | 48V: 5800W |
| Operating Temperature Range: | -30 to +60°C (full rated output up to 40°C) | -30 to +60°C (full rated output up to 40°C) |
| Amps | 100.0 Amps | 100.0 Amps |
| Charge voltage 'absorption'Default Setting | 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) | 14.4 / 28.8 / 43.2 / 57.6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Protection | PV reverse polarity / Output short circuit / Over temperature | Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature |
| Dimensions | 103 x 295 x 216 (D x W x H) | 103 x 295 x 246 mm |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
