Description
FEATURES
MPPT: Ultra Fast Maximum Power Point Tracking:
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control:

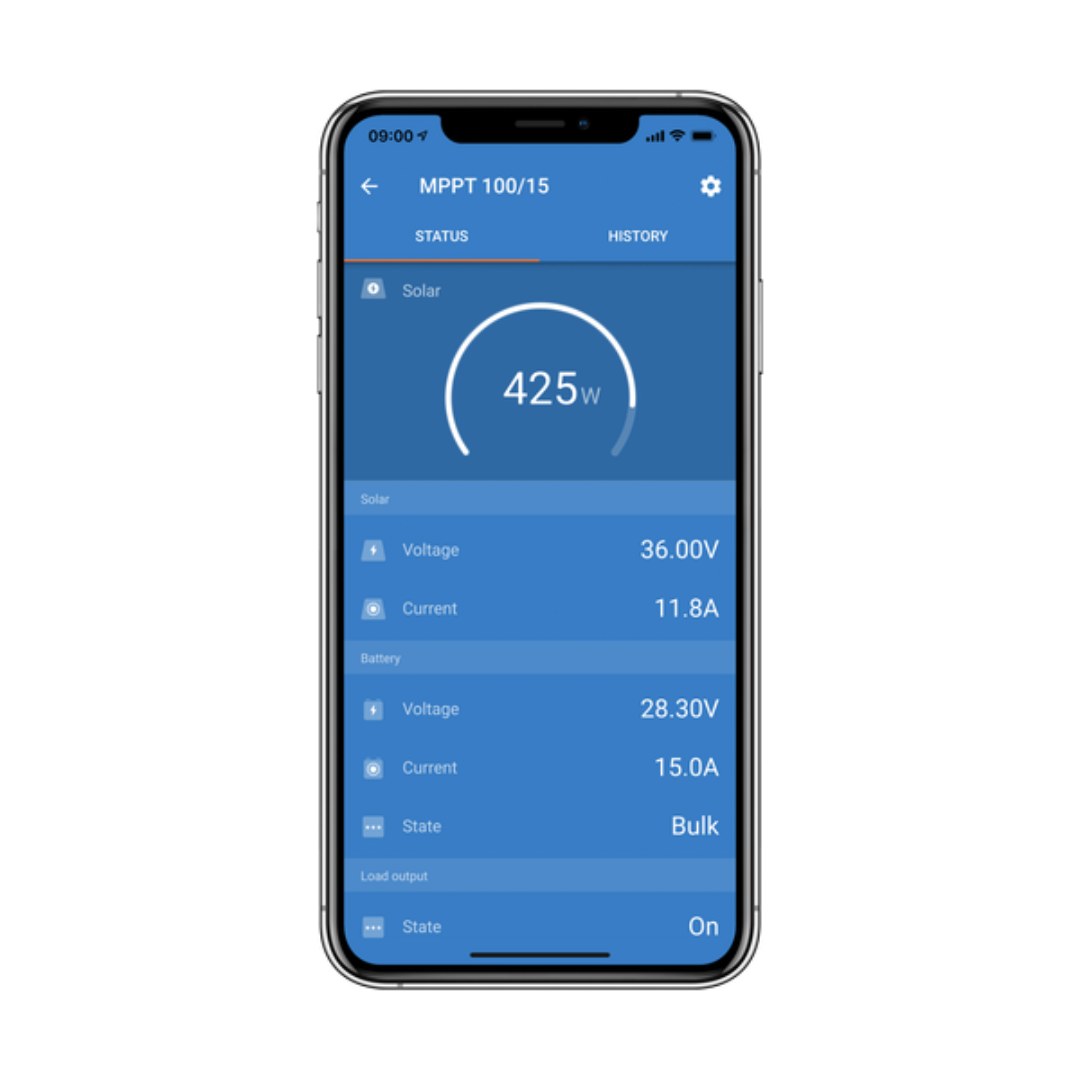

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Load output:
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day.
Bluetooth Smart built-in: dongle not needed:
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.
VE.Direct:
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Load output:
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay).
Battery Life: intelligent battery management:
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
VE.Direct
Programmable battery charge algorithm:
See the software section on our website for details
Day/night timing and light dimming option:
See the software section on our website for details

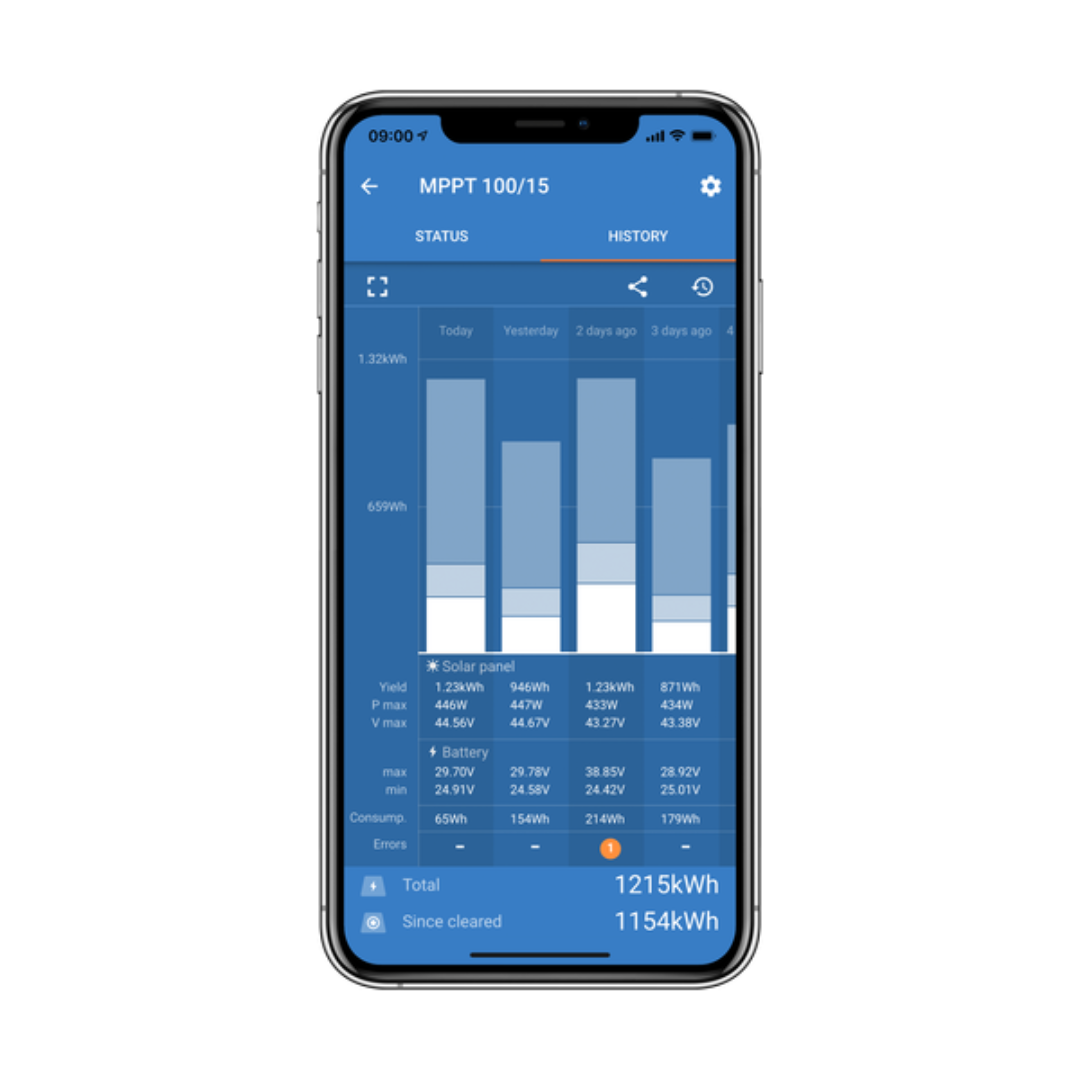

Programming, real-time data and history display options:
Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
SPECIFICATIONS

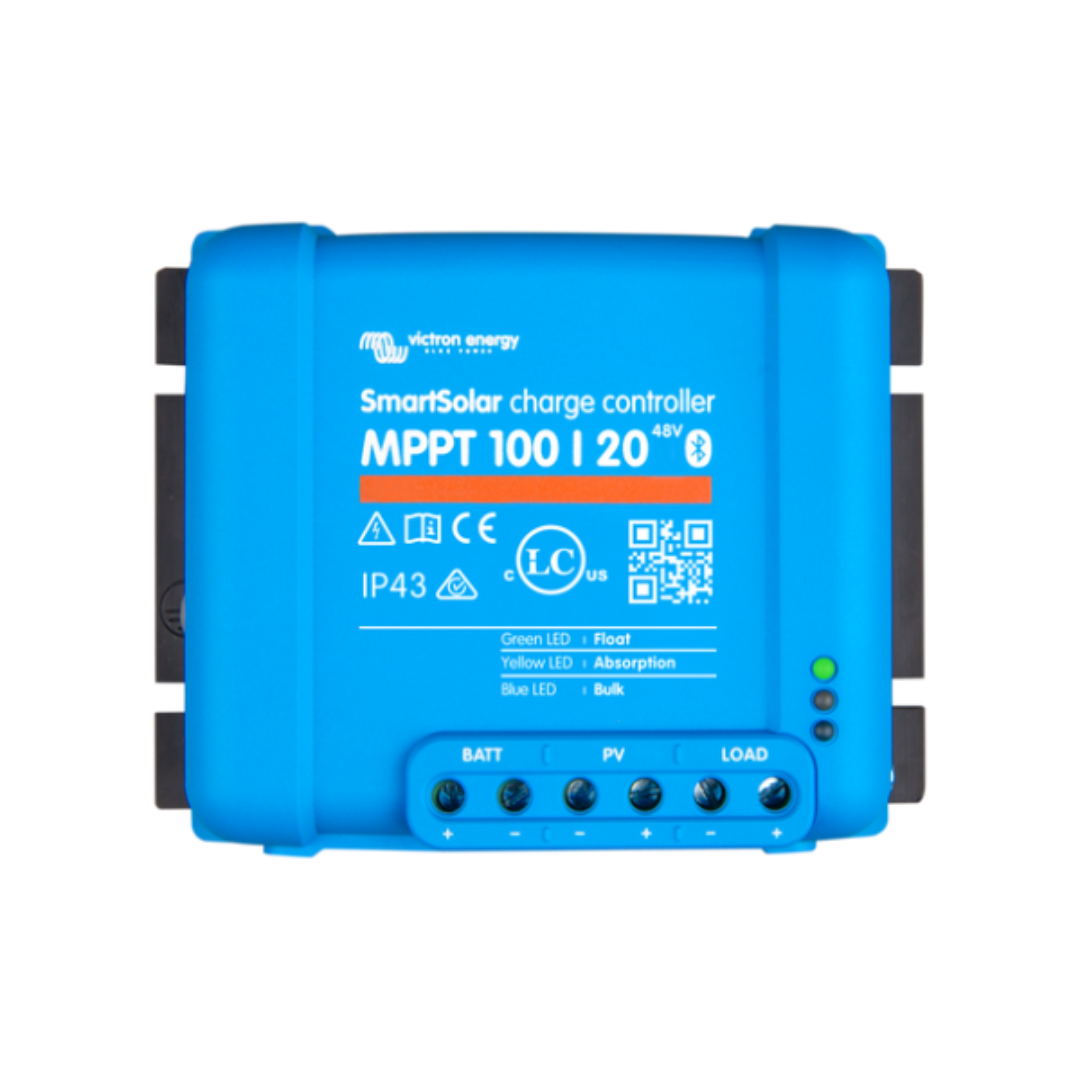

| Product Name | Victron SmartSolar MPPT 12/24V Charge Controller 100/20 up to 48V SCC110020160R |
| SKU | SCC110020160R |
| GTIN (Global Trade Item Number) | 8719076043027 |
| Brands | Victron |
| Product Category | Solar Charge Controllers |
| Amps | 20.0 Amps |
| Voltage | 12V | 24V | 48V |
| Nominal PV Power | 290W | 580W | 1160W |
| Efficiency | 98% (Peak) |
| Operating Temperature Range | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Dimensions | 60 x 113 x 100 (D x W x H) |
| Net Weight (kg) | 0.7 Kg |
| Charge voltage 'absorption' | 57.6V (adjustable) |
| Protection | Battery reverse polarity (fuse), Output short circuit and Over temperature |
| NOTE | * iPhone is not included. |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
