Victron Skylla-TG Charger 24/100(1+1) GL 120-240V SDTG2401003

Warranty Option: Standard 5 Years Warranty
Sale price$3,045.00

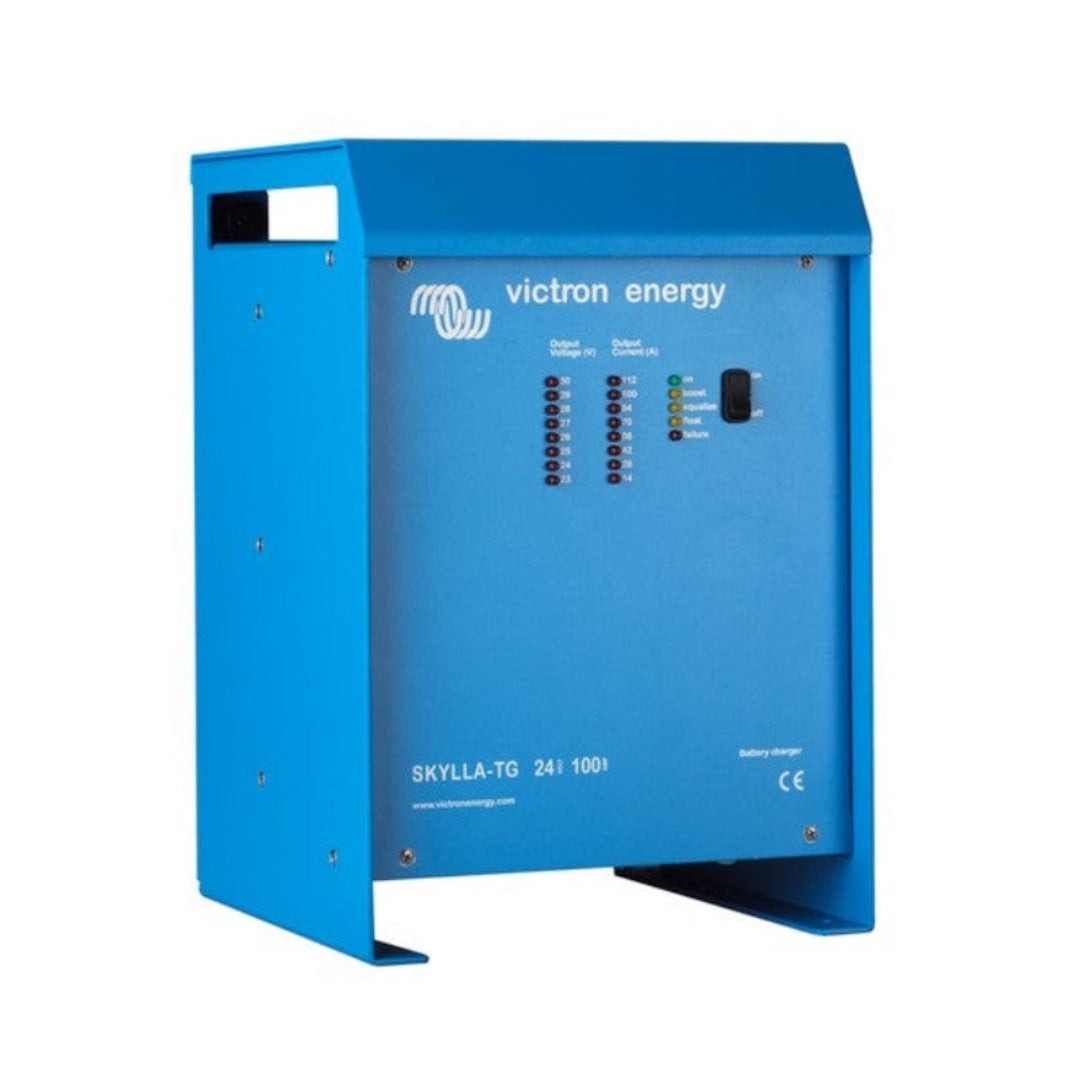

Victron Skylla-TG 24/100 (1+1) 120-240V Charger, 5-Year Warranty. One full-rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows for measuring battery temperature and compensating charge voltage accordingly.


Universal 90-265 V AC input voltage range and also suitable for DC supply:

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
The chargers will also accept a 90-400 V DC supply.

Germanischer Lloyd approval:
The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1.
Category C applies to equipment protected from the weather.
EMC 1 applies to conduct and radiated emission limits for equipment installed on the bridge of a ship.

The approval to GL C, EMC1 implies that the Chargers also comply with IEC 60945-2002, category ‘protected’ and ‘equipment installed on the bridge of a ship’.

The GL certification applies to 185-265 V AC supply.

Other features:

Microprocessor control
Can be used as a power supply
Battery temperature sensor for temperature-compensated charging
Battery voltage sensing to compensate for voltage loss due to cable resistance

Other Skylla Chargers:

Standard 185-265 V AC models with additional output to charge a starter battery
GMDSS models, with all required monitoring and alarm functions.


Product Name
Victron Skylla-TG Charger 24/100(1+1) GL 120-240V SDTG2401003
SKU SDTG2401003
GTIN (Global Trade Item Number) 8719076025795
Brands Victron
Product Category Battery Chargers
Model SDTG2401003
Output Current Rating (Amps) 100.0 Amps
Operating Temperature Range -40 to +50°C (-40 - 122°F) Full output current up to 40°C
Humidity max 95%
Output System Voltage 24V
Charge current 100 A
Battery Capacity 500-1000 Ah
Dimensions 365 x 250 x 257 mm (L x W x H)
Net Weight (kg) 10.0 Kg
Charge voltage 'absorption' 28.5V
Charge Voltage Float - Wet (25 degrees)** 26.5V
Protection category IP 21
Battery-connection M8 bolts
Input Voltage 90-265 V AC | 90-400 V DC
Can be used as power supply Yes
Manufacturers Warranty 5 Years


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.


The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
