Description
FEATURES
Perfect chargers for any type of battery:
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system.
In particular, sealed maintenance-free batteries must be charged correctly in order to ensure long service life.
Suitable for AC and DC supply (AC-DC and DC-DC operation):
Except for the 3-phase input models, the chargers also accept a DC supply.
Controlled charging:
Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the characteristic and charges more rapidly than other processes.
Use of TG Chargers as power supply:
As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available.
Two outputs to charge 2 battery banks (24V models only):
The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.
To increase battery life: temperature compensation:
Every Skylla TG Charger comes with a battery temperature sensor. When connected, the charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries that otherwise might be overcharged and dry out due to venting.
Battery voltage sense:
In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.
SPECIFICATIONS
|
Product Name |

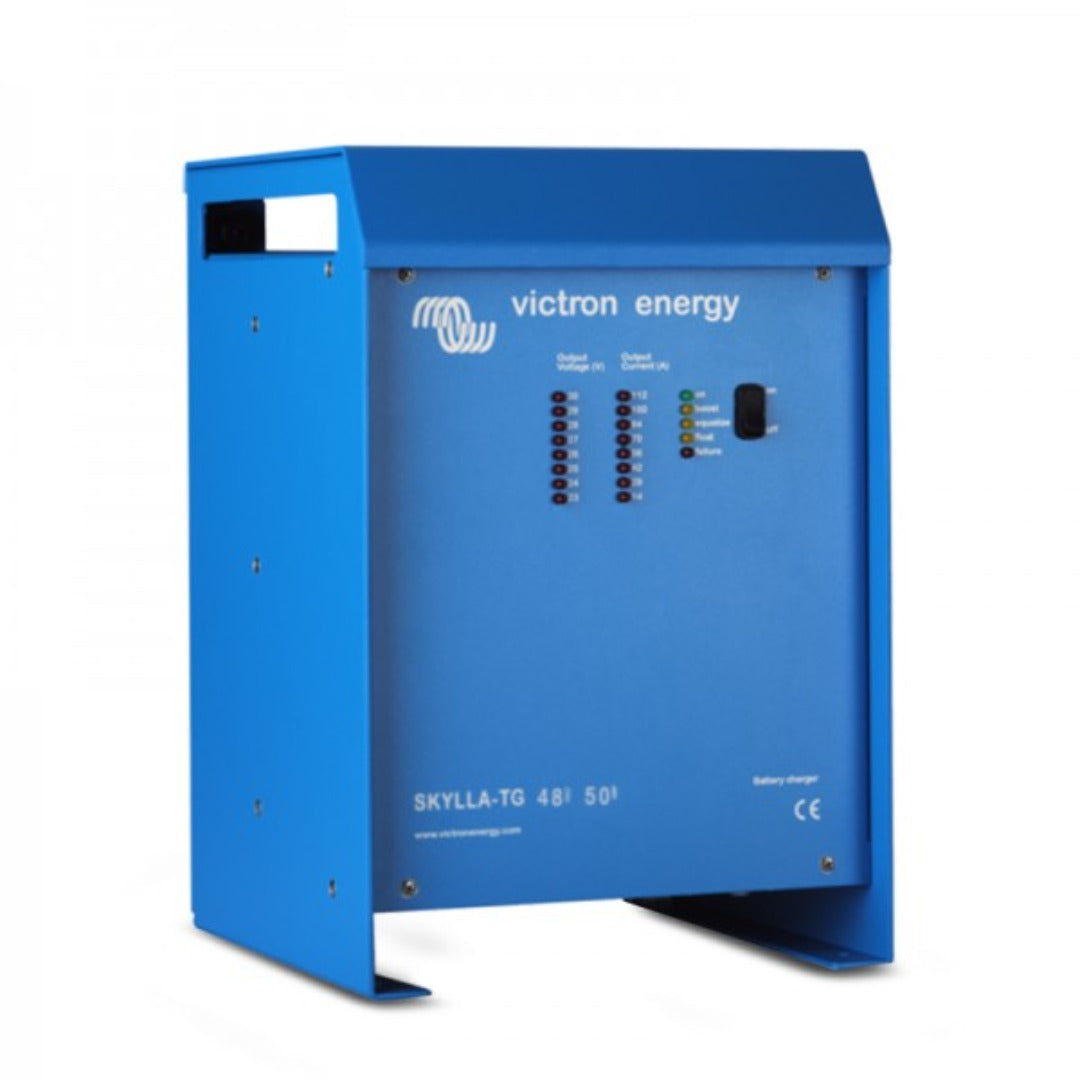

Victron Skylla-TG (1+1) Charger 48/50 SDTG4800501 |
| SKU | SDTG4800501 |
| GTIN (Global Trade Item Number) | 08719076025818 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Model | SDTG4800501 |
| Output Current Rating (Amps) | 50.0 Amps |
| Operating Temperature Range | -40 to +50°C (-40 - 122°F) |
| Humidity | max 95% |
| Output System Voltage | 48V |
| Charge current | 50 A |
| Battery Capacity | 250-500 Ah |
| Dimensions | 365 x 250 x 257 mm (L x W x H) |
| Net Weight (kg) | 10.0 Kg |
| Charge voltage 'absorption' | 57V |
| Charge Voltage Float - Wet (25 degrees)** | 53V |
| Protection category | IP 21 |
| Battery-connection | M8 bolts |
| Input Voltage | 185-264 V AC | 180-400 V DC |
| Can be used as power supply | Yes |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
