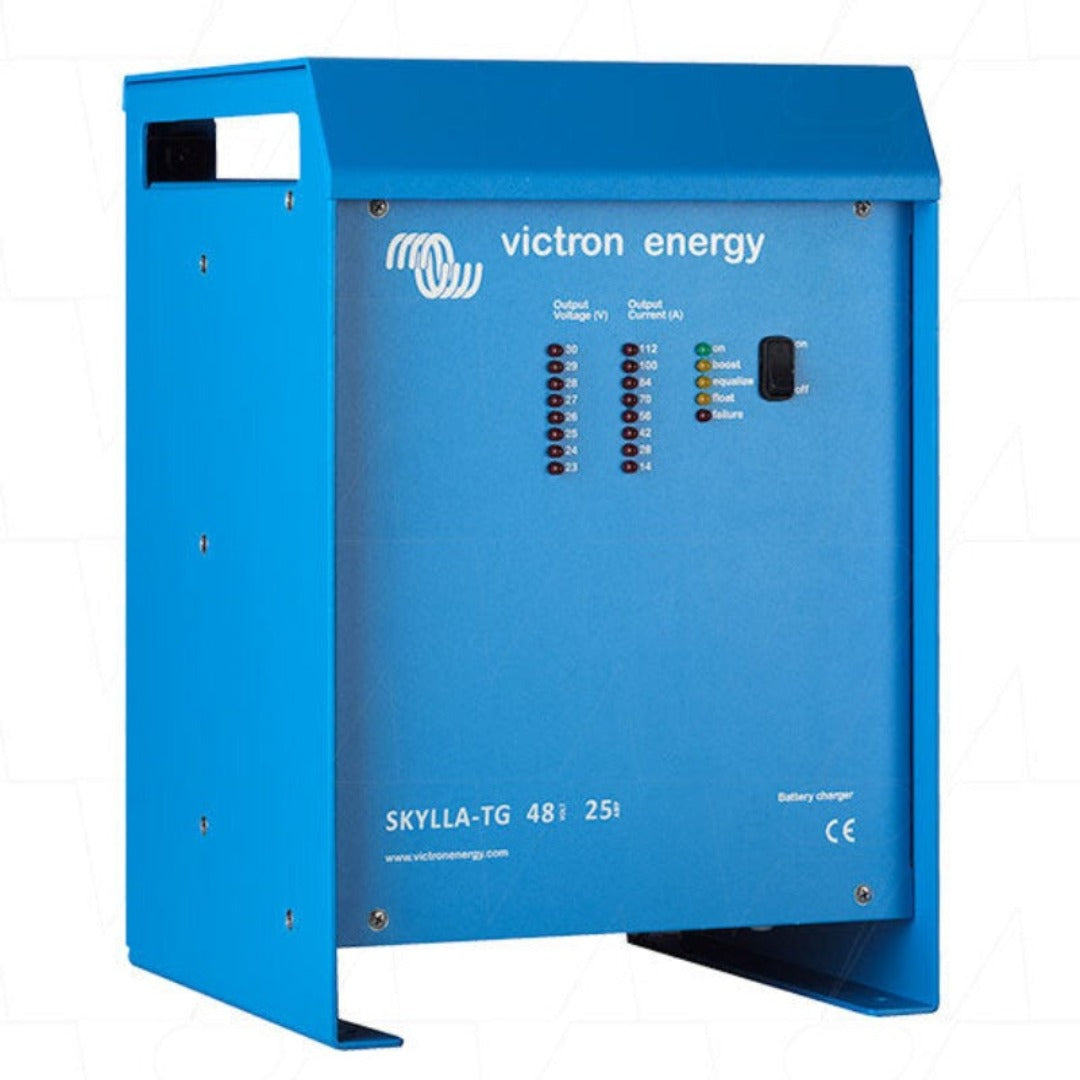

Victron Skylla-TG Charger 48/25(1) 230V SDTG4800251


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$1,520.00

Description

Victron Skylla-TG 48/25 (1+1) Charger, 5 Year Warranty. One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

FEATURES

Perfect chargers for any type of battery:
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system.
In particular, sealed maintenance-free batteries must be charged correctly in order to ensure long service life.

Suitable for AC and DC supply (AC-DC and DC-DC operation):
Except for the 3-phase input models, the chargers also accept a DC supply.

Controlled charging:
Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use of TG Chargers as power supply:
As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or
large buffer capacitors are not available.

Two outputs to charge 2 battery banks (24V models only):
The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.

To increase battery life: temperature compensation:
Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed
batteries that otherwise might be overcharged and dry out due to venting.

Battery voltage sense:
In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense the facility so that the battery always receives the correct charge voltage.

SPECIFICATIONS

Product Name Victron Skylla-TG Charger 48/25(1) 230V SDTG4800251
SKU SDTG4800251
GTIN (Global Trade Item Number) 8719076025801
Brands Victron
Product Category Battery Chargers
Model SDTG4800251
Output Current Rating (Amps) 25.0 Amps
Operating Temperature Range -40 to +50°C (-40 - 122°F)
Humidity max 95%
Output System Voltage 48V
Charge current 25 A
Battery Capacity 125-250 Ah
Dimensions 365 x 250 x 147 mm (L x W x H)
Net Weight (kg) 5.5 Kg
Charge voltage 'absorption' 57V
Charge Voltage Float - Wet (25 degrees)** 53V
Protection category IP 21
Battery-connection M8 bolts
Input Voltage 185-264 V AC | 180-400 V DC
Can be used as power supply Yes
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
