Description

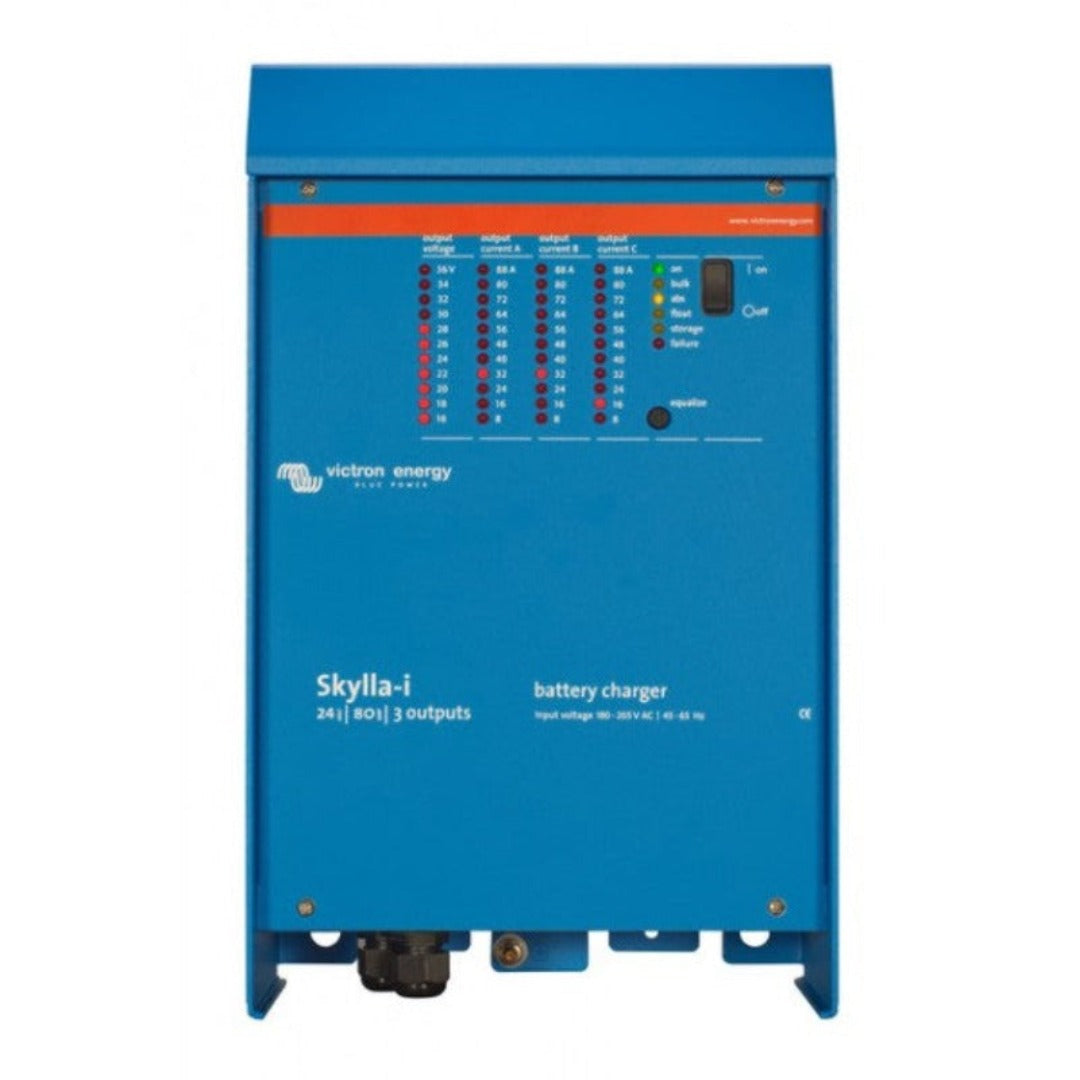

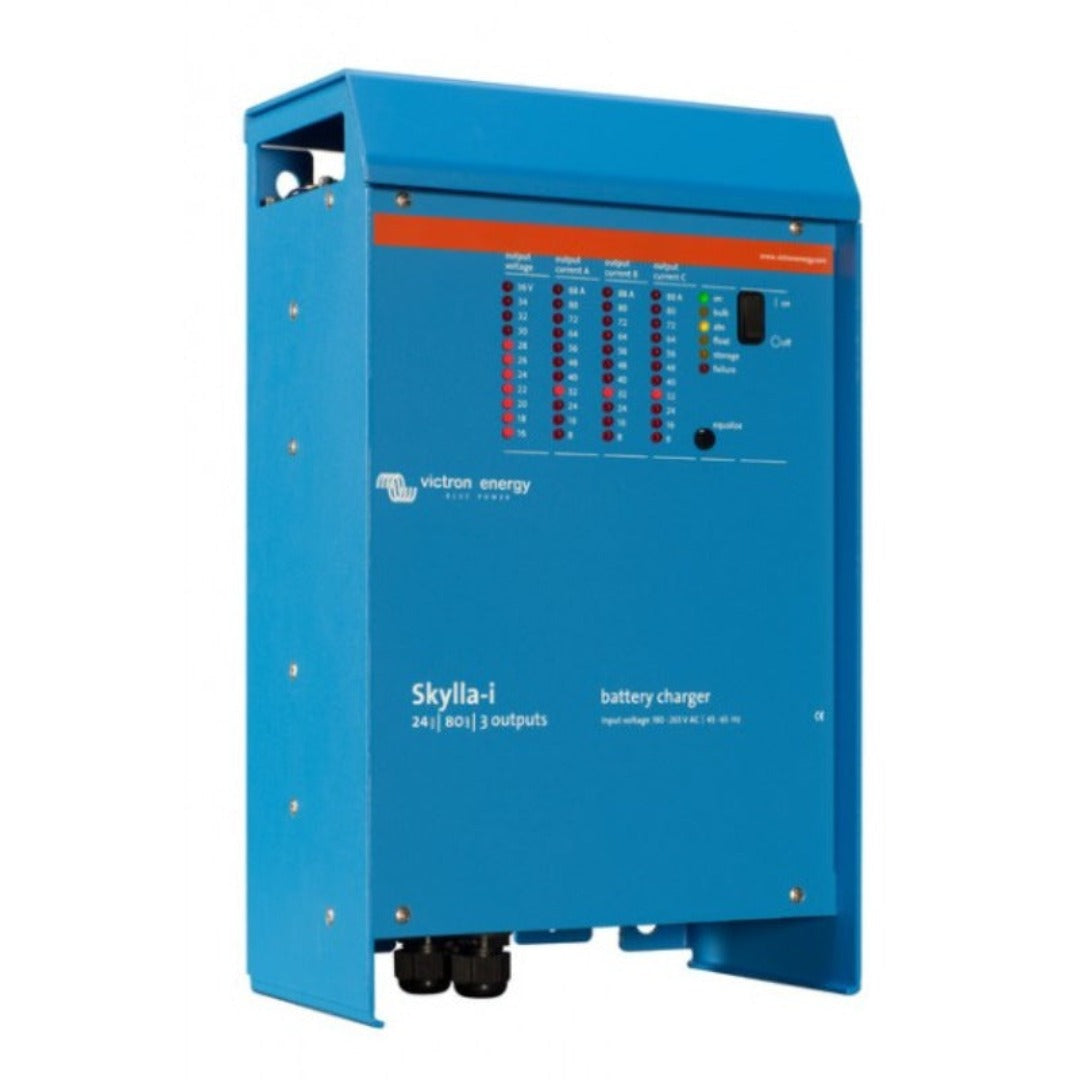

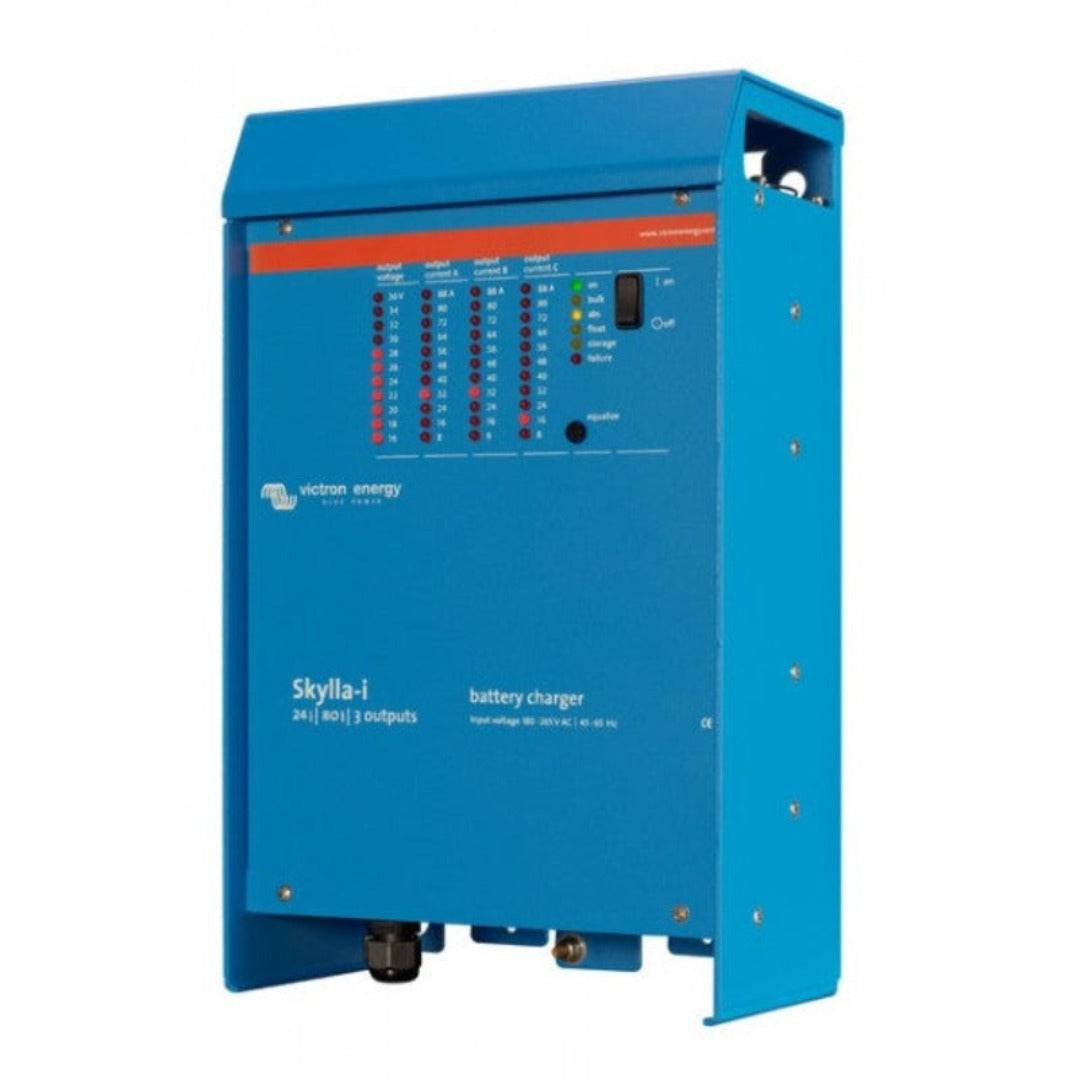

Victron Skylla-i 24/80 (3) 230V Battery Charger, 5 Year Warranty. A modern and powerful battery charger that withstands the rigors of an adverse environment: heat, humidity and salt air.
FEATURES
- The right amount of charge for a lead-acid battery: variable absorption time
- BatterySafe mode: preventing damage due to excessive gassing
- Storage mode: less maintenance and aging when the battery is not in use
- Smaller and lighter compared to similar models
- NMEA2000 Canbus connection
- PowerControl: set a maximum shore power
- Remote Control
- Li-ion (LiFePo4) ready
SPECIFICATIONS
| Product Name |
Victron Skylla-i 24/80 230V Battery Charger (3) SKI024080002 |
| SKU | SKI024080002 |
| GTIN (Global Trade Item Number) | 8719076026235 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Model | SKI024080002 |
| Output Current Rating (Amps) | 80.0 Amps |
| Operating Temperature Range | -20 to 60°C (Full output current up to 40°C) |
| Humidity | max 95% |
| Output System Voltage | 24V |
| Charge current | 80 A |
| Battery Capacity | 400-800 Ah |
| Dimensions | 405 x 250 x 150 mm (L x W x H) |
| Net Weight (kg) | 7.0 Kg |
| Charge Algorithm | 3 stage, with on-off control or CAN bus control |
| Charge voltage 'absorption' | 28.8 V | High: 29.4 V | Li-ion: 28.4 V |
| Charge Voltage Float - Wet (25 degrees)** | Normal: 27.6 V | High: 27.6 V | Li-ion: 27.0 V |
| Charge voltage 'storage' | Normal: 26.4 V | High: 26.4 V | Li-ion: 27.0 V |
| Protection | Battery reverse polarity (fuse), Output Short circuit and Over Temperature |
| Protection category | IP 21 |
| Battery-connection | M8 bolts |
| Input Voltage | 185 - 265 VAC, 45 - 65 Hz |
| Can be used as power supply | Yes |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
