Description
FEATURES
Two AC Inputs & two AC Outputs:
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads.
Unique PowerAssist feature:
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Virtually unlimited power thanks to parallel operation:
Up to 6 Quattros can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible.
Remote Monitoring and Control:
Monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems.
Two AC inputs with integrated transfer switch:
The Quattro can be connected to two independent AC sources, for example, the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.
Two AC Outputs:
The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected.
Virtually unlimited power thanks to parallel operation:
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140.
Split phase options:
Two units can be stacked to provide 120-0-120V, and additional units can be paralleled up to a total of 6 units per phase, to supply up to 30kW / 36kVA of split phase power.
Three-phase capability:
Three units can be configured for three-phase output.
PowerControl – Dealing with limited generator, shore side, or grid power:
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input.
PowerAssist – Boosting shore or generator power:
This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source.
Solar energy: AC power is available even during a grid failure:
The Quattro can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring:
In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
Off-grid, grid interactive, and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control:
Several options are available: Battery Monitor, Multi Control Panel, Color Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control:
Victron Ethernet Remote, Venus GX, and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring:
When connected to the Ethernet, systems with a Color Control panel can be accessed and settings can be changed.
SPEICIFICATIONS
|
Product Name |

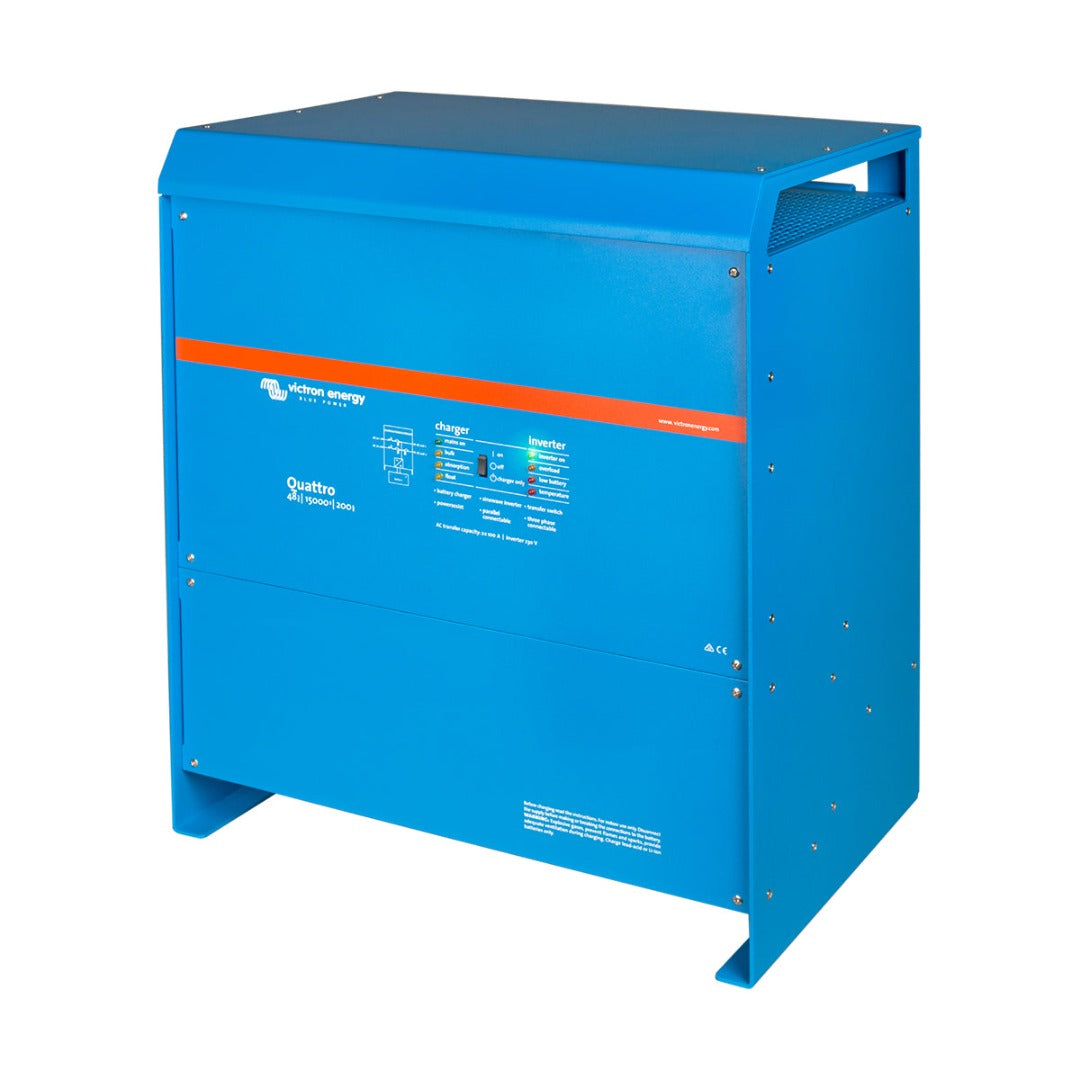

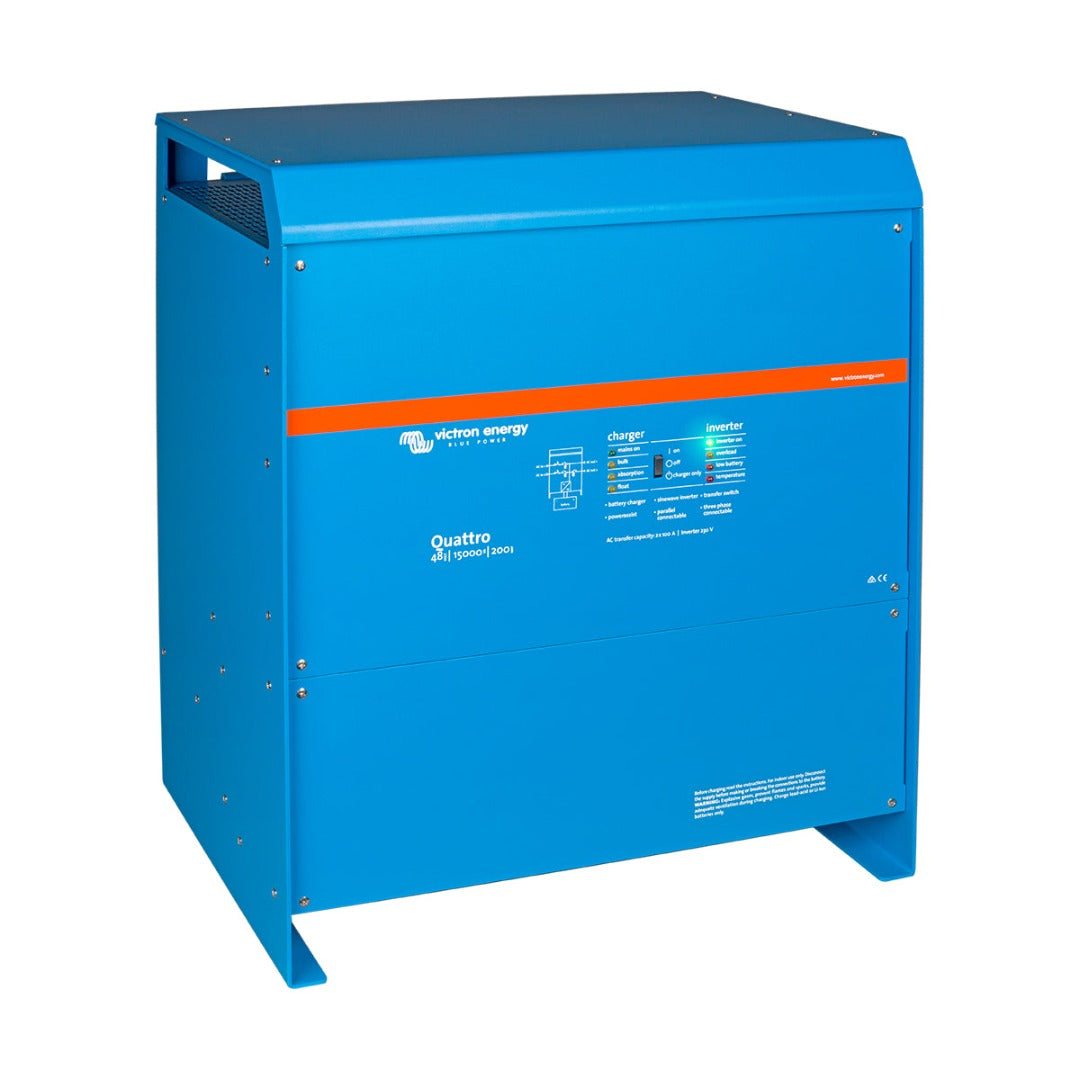

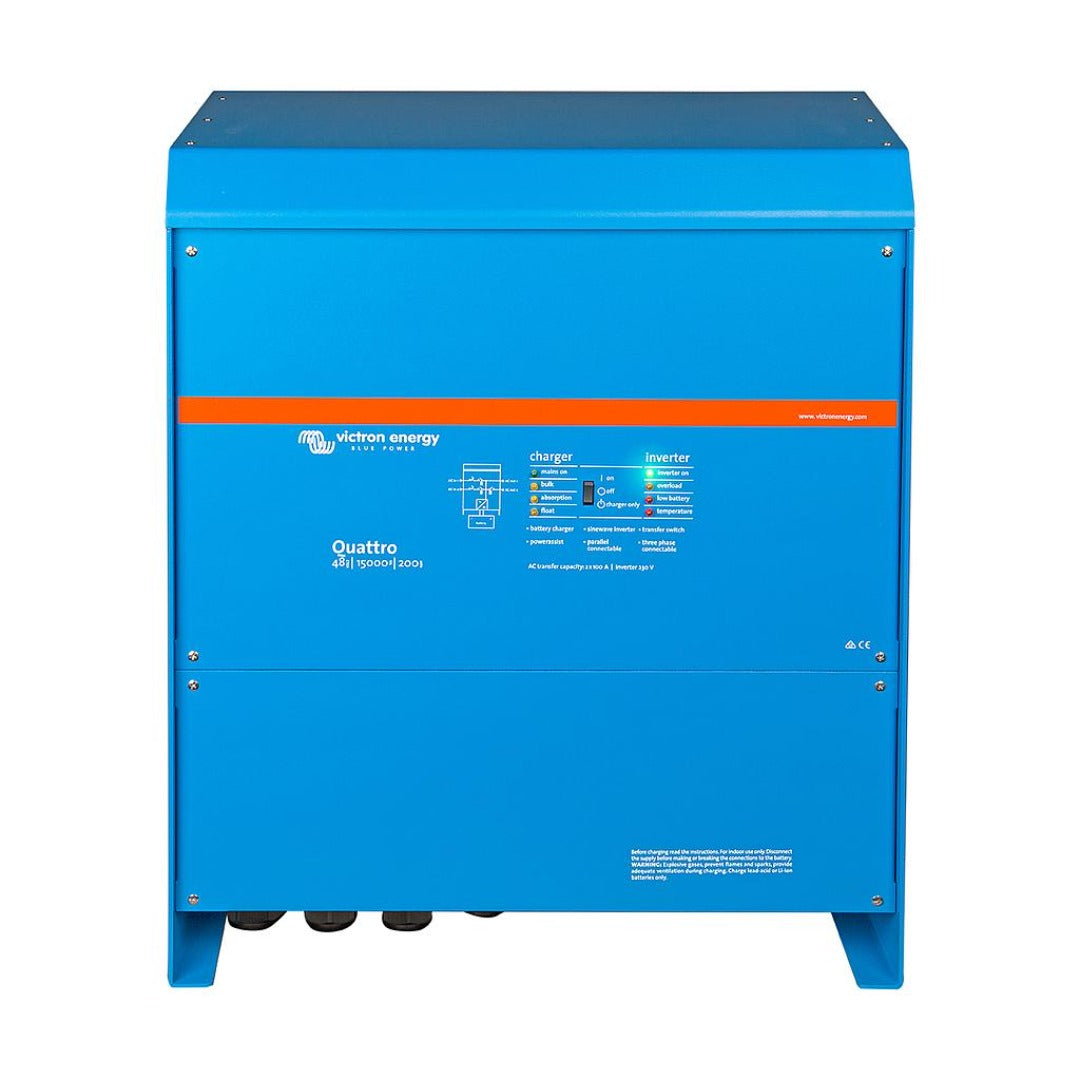

Victron Quattro Inverter Charger 48/15000/200 -100/100 QUA483150000 |
| SKU | QUA483150000 |
| GTIN (Global Trade Item Number) | 8719076037347 |
| Brands | Victron |
| Product Category | Power Inverter Chargers |
| Model | Quattro 48/15000/200 |
| Product Type | Inverter and charger in one package |
| Output Current Rating (Amps) | 200.0 Amps |
| Wattage | 12000W |
| Peak Power | 25000W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 12000W (continuous output power at 25°C) | 10000W (continuous output power at 40°C) | 7000W (continuous output power at 65°C) |
| Input Voltage | 38-66V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz | 1 |
| Inverter Output Continuous Watts | 12000W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 57.6V |
| Charge Voltage Float - Wet (25 degrees)** | 55.2V |
| Charge voltage 'storage' | 52.8V |
| Inverter Output Nominal Efficiency | 96% (maximum) |
| No load power consumption | 80W | 30W in search mode |
| Product Dimensions (mm) LxWxH | 488 x 344 x 572 |
| Net Weight (kg) | 72.0 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
