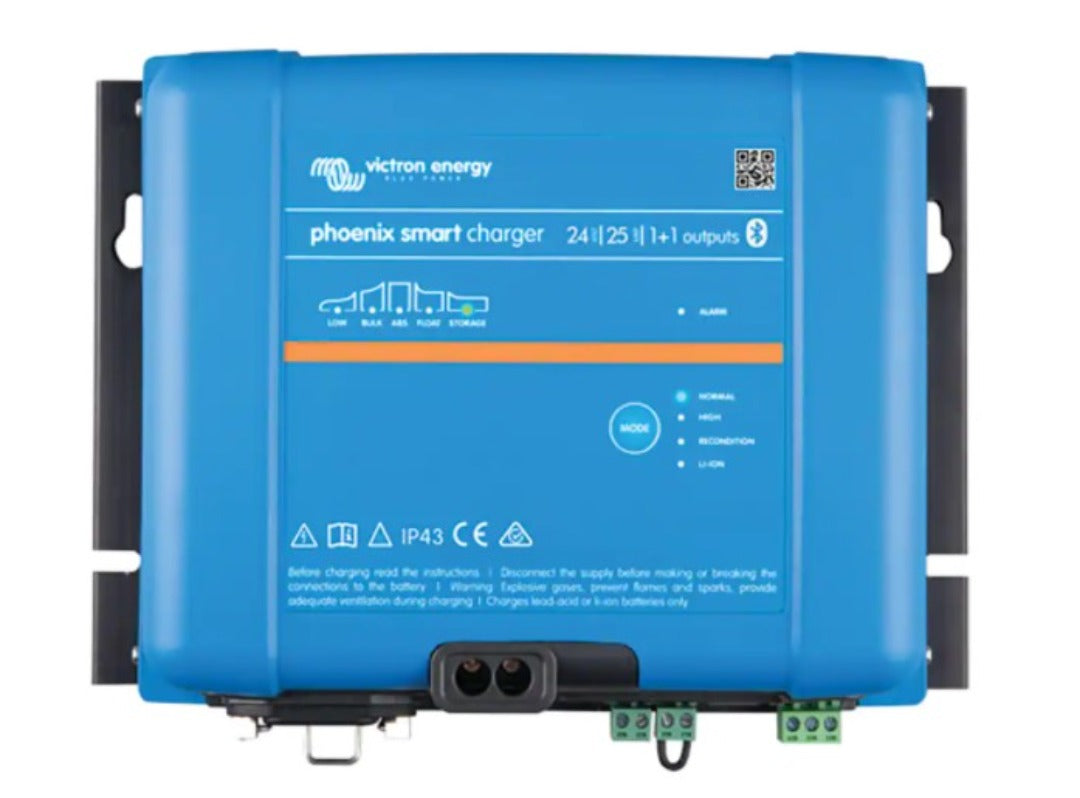

Victron Phoenix Smart IP43 24/25 Battery Charger 1+1 230V PSC242551085


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$800.00

Description

FEATURES

Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.

Phoenix Smart (3): three full current outputs to charge 3 battery banks
Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.

Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.

Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used.

The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery.

Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached

Less maintenance and aging when the battery is not in use: the Storage Mode
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.

Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.

Remote on-off
The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.

VE.Direct interface
For a wired data connection to a Color Control panel, PC or other devices.
Please see the VictronConnect app under Downloads / Software on our website.

Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device
to trip on an alarm or other events.

SPECIFICATIONS

Product Name Victron Phoenix Smart IP43 24/25 Battery Charger 1+1 230V PSC242551085
SKU PSC242551085
GTIN (Global Trade Item Number) 8719076041641
Brands Victron
Product Category Battery Chargers
Model PSC242551085
Output Current Rating (Amps) 25.0 Amps
Efficiency 94%
Operating Temperature Range -20 to 60°C (0 - 140°F)
AC Input Connection IEC 320 C14 inlet with retainer clip (AC cord with country specific plug must be ordered separately)
Humidity Max 95%
Output System Voltage 24V
Charge current 25 A
Dimensions 180 x 249 x 100 mm (L x W x H)
Net Weight (kg) 3.5 Kg
Charge Algorithm 5 stage adaptive
Charge voltage 'absorption' Normal: 28,8V High: 29,4V Li-ion: 28,4V
Charge Voltage Float - Wet (25 degrees)** Normal: 27,6V High: 27,6V Li-ion: 27,0V
Charge voltage 'storage' Normal: 26,4V High: 26,4V Li-ion: 27,0V
Protection category IP43 (electronic components), IP22 (connection area)
Battery-connection Screw terminals 16 mm² (AWG6)
Input Voltage 230 VAC (range: 210 – 250 V
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
