Description
FEATURES
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Phoenix Smart (1+1): two outputs to charge 2 battery banks
The second output, limited to approximately 3A and with a slightly lower output voltage, is intended to top up a starter battery.
Phoenix Smart (3): three full current outputs to charge 3 battery banks
Each output can supply the full rated output current. But the total of the 3 outputs combined can never exceed the current rating of the charger.
Automatic voltage compensation
The charger compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases. Please see the manual for details.
Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage
The Phoenix Smart Charger features our well-known ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimize the charge process relative to the way the battery is being used.
The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery will be fully charged.
Preventing damage due to excessive gassing: the BatterySafe mode
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached
Less maintenance and aging when the battery is not in use: the Storage Mode
The Storage Mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the Storage Mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery.
Also charges Li-ion (LiFePO₄) batteries
Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port.
Alternatively full control of voltage and current can be achieved with Bluetooth.
Fully programmable charge algorithm
The charge algorithm can be programmed with help of Bluetooth or the VE.Direct interface.
Remote on-off

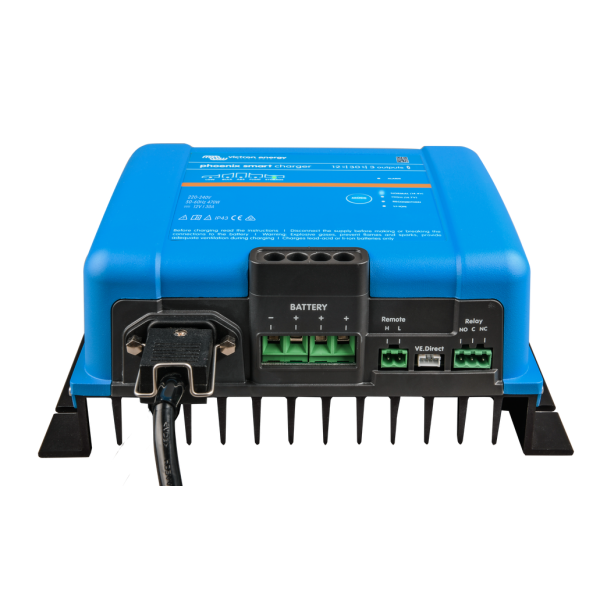

The remote on/off consists of two terminals: Remote H and Remote L.
A remote on/off switch or relay contact can be connected between H and L.
VE.Direct interface
For a wired data connection to a Color Control panel, PC or other devices.
Please see the VictronConnect app under Downloads / Software on our website.
Programmable relay
Can be programmed using the VE.Direct interface or a Bluetooth enabled device
to trip on an alarm or other events.
Learn more about batteries and battery charging
For more information about adaptive charging please look under Downloads / White papers on our
website.
SPECIFICATIONS

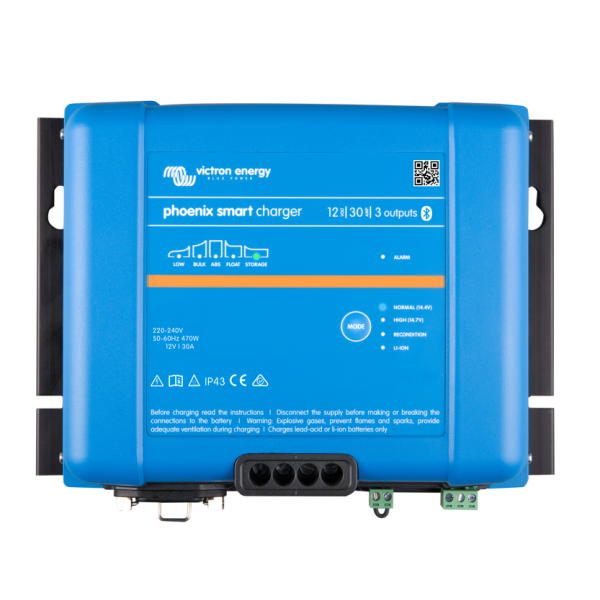

| Product Name | Victron Phoenix Smart IP43 12/30 Battery Charger (3) 230V PSC123053085 |
| SKU | PSC123053085 |
| GTIN (Global Trade Item Number) | 8719076041917 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Model | PSC123053085 |
| Output Current Rating (Amps) | 30.0 Amps |
| Efficiency | 94% |
| Operating Temperature Range | -20 to 60°C (0 - 140°F) |
| AC Input Connection | IEC 320 C14 inlet with retainer clip (AC cord with country specific plug must be ordered separately) |
| Humidity | Max 95% |
| Output System Voltage | 12V |
| Charge current | 30 A |
| Dimensions | 180 x 249 x 100 mm (L x W x H) |
| Net Weight (kg) | 3.5 Kg |
| Charge Algorithm | 5 stage adaptive |
| Charge voltage 'absorption' | Normal: 14,4V High: 14,7V Li-ion: 14,2V |
| Charge Voltage Float - Wet (25 degrees)** | Normal: 13,8V High: 13,8V Li-ion: 13,5V |
| Charge voltage 'storage' | Normal: 13,2V High: 13,2V Li-ion: 13,5V |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Battery-connection | Screw terminals 16 mm² (AWG6) |
| Input Voltage | 230 VAC (range: 210 – 250 V |
| Manufacturers Warranty | 5 Years |
| Battery-connection | Black and Red cable of 1,5 meter |
| Input Voltage | 180 - 265 VAC, 45 - 65 Hz |
| Can be used as power supply | Yes |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
