Description
Inverters convert stored direct current(DC) power in your batteries into alternating power (AC) power, like the kind you get in your home, so you can run your electrical appliances wherever you are. There are two types of inverters pure sine wave and modified sine wave. Modified sine wave inverters are a more basic form of technology than pure sine wave inverters, they produce power which is perfectly adequate for powering simple electronics. Use modified sine wave inverters to provide power for your less sensitive appliances like phone chargers, heaters and air conditioners. Modified inverters are best suited for resistive loads which don't have a start up surge.
FEATURES
VE.Direct communication port:The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)

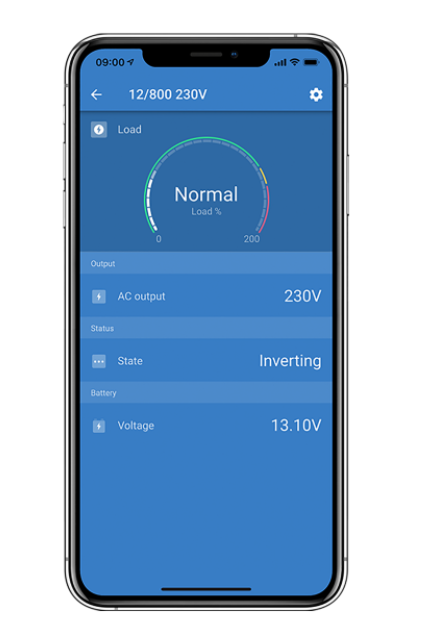

- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Monitoring:
- In- and output voltage, % load and alarms
Proven reliability:
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power:
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode:
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off:

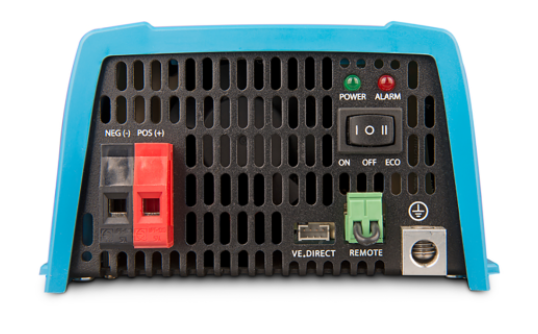

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

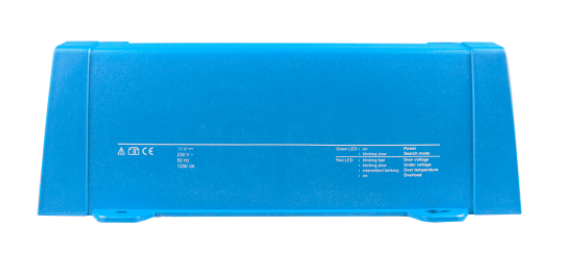

LED diagnosis:
Please see manual for a description.
To transfer the load to another AC source: the automatic transfer switch:
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
*Bluetooth dongle to be purchased separately
SPECIFICATIONS

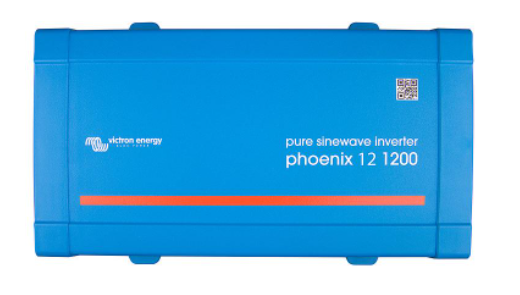

| 12 Volt Phoenix Inverter | 12/1200 |
| Cont. power at 25°C | 1200VA |
| Cont. power at 25°C / 40°C | 1000/850W |
| Peak power | 2200W |
| Output AC voltage / frequency (adjustable) | 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% |
| Input voltage range | 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V |
| DC low shut down (adjustable) | 9,3 / 18,6 / 37,2V |
| DC low restart and alarm (adjustable) | 10,9 / 21,8 / 43,6V |
| Battery charged detect (adjustable) | 14,0 / 28,0 / 56,0V |
| Max. efficiency | 91/91/92% |
| Zero-load power | 7/8/10W |
| Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable) |
1/1.5/3.0 |
| ECO mode stop and start power setting | Adjustable |
| Protection | a - f |
| Operating temperature range | -40 to +65°C (fan assisted cooling)Derate 1,25% per °C above40°C |
| Humidity (non-condensing) | max 95% |
| ENCLOSURE | |
| Material & Colour | Steel chassis and plastic cover (blue Ral 5012) |
| Battery-connection | Screw terminals |
| Maximum cable cross-section | 35/25/25mm2 / AWG 2/4/4 |
| Standard AC outlets | 230V: Schuko (CEE 7/4), IEC-320 (male plug included)120V: Nema 5-15R |
| Protection category | IP 21 |
| Weight | 7.4kg |
| Dimensions (H x W x D) | 117 x 232 x 362mm |
| ACCESSORIES | |
| Remote on-off | Yes |
| Automatic transfer switch | Filax |
| STANDARDS | |
| Safety | EN-IEC 60335-1 / EN-IEC 62109-1 |
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
