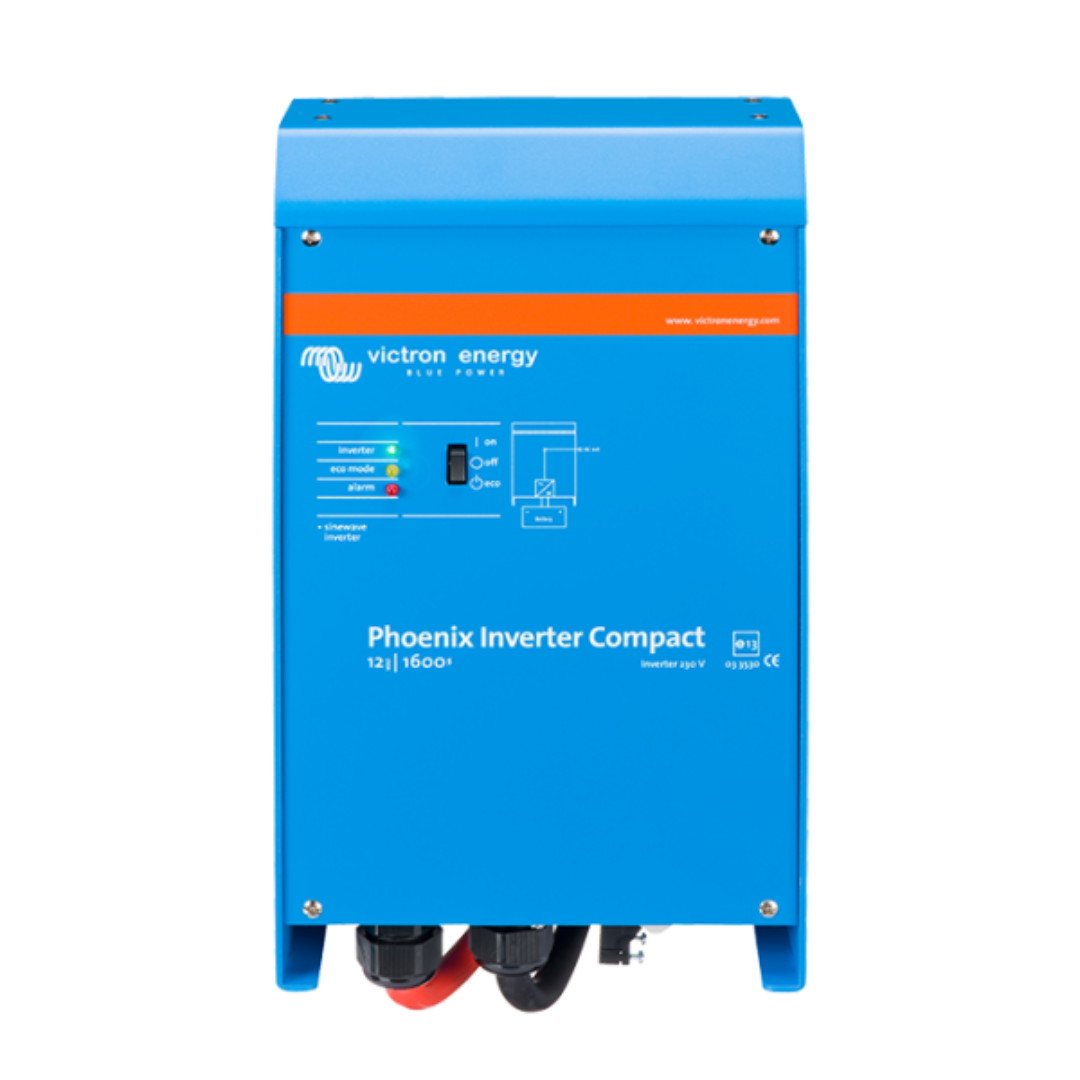

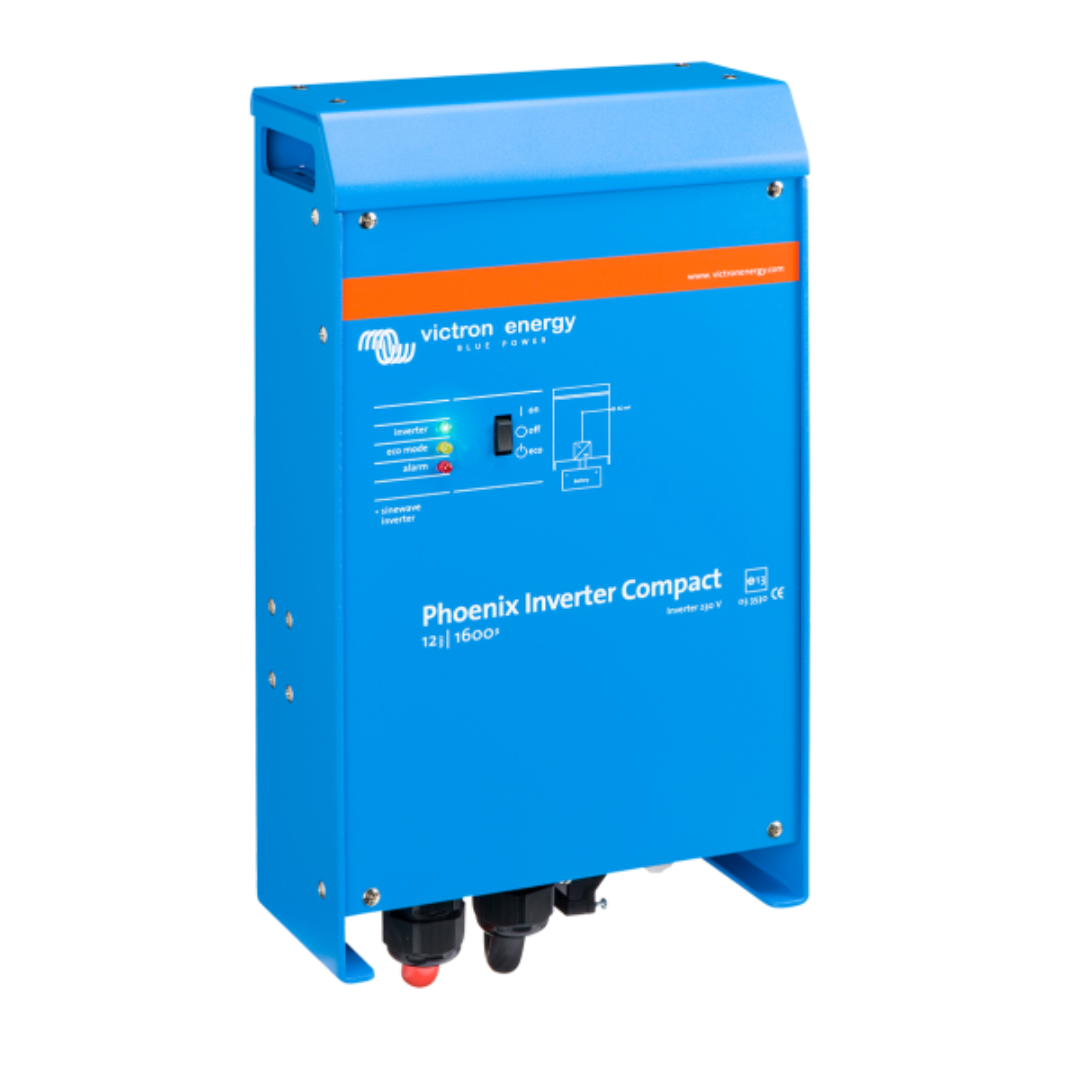

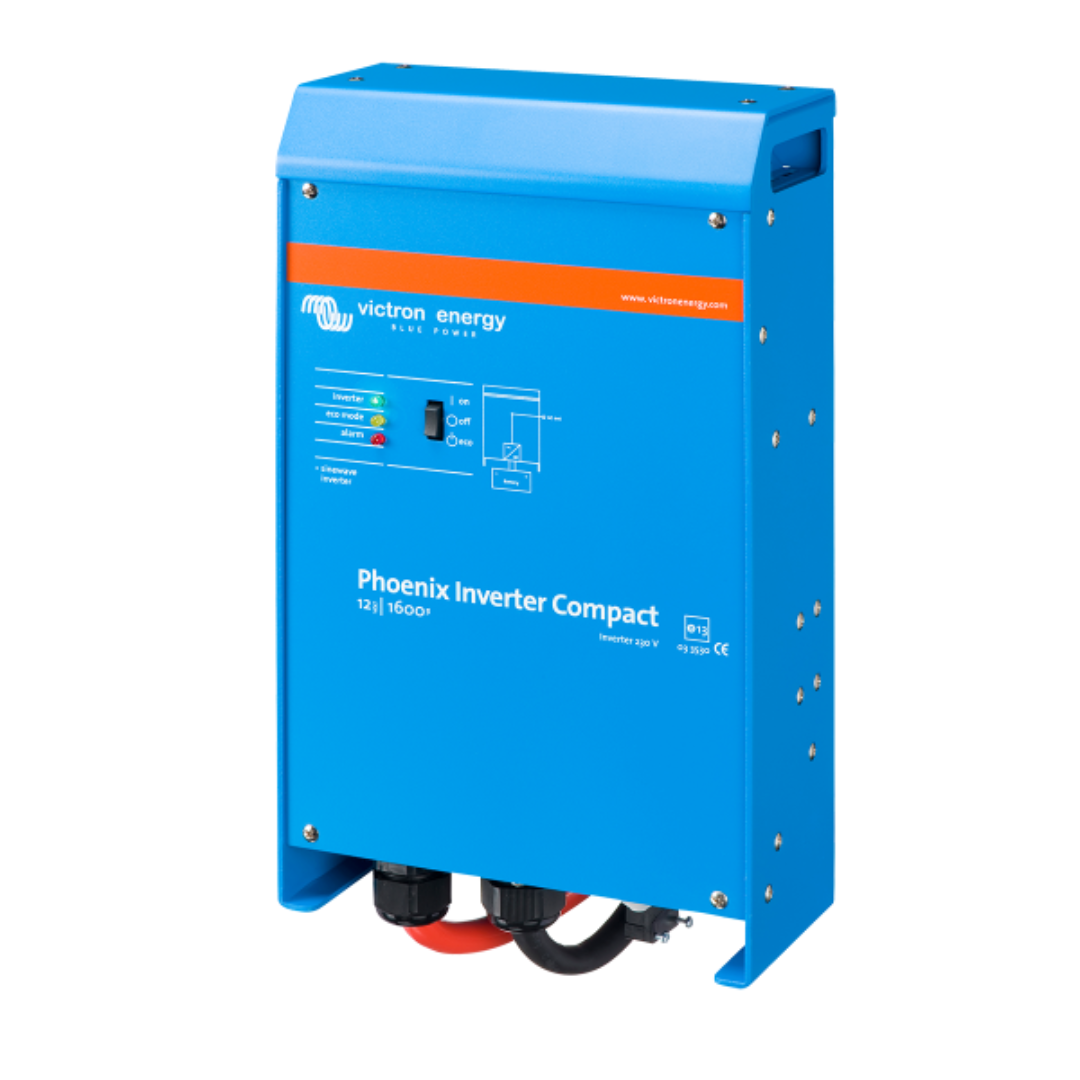

Victron Phoenix Inverter Compact 12/1600 230V VE.Bus CIN121620000

Warranty Option: Standard 5 Years Warranty
Sale price$1,360.00


Victron Phoenix Inverter Compact 12V / 1600VA, 5-Year Warranty. The Phoenix Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for a wide range of applications.

The Phoenix Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.


SinusMax - Superior engineering:

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.

Extra start-up power:

A unique feature of the SinusMax technology is very high start-up power. Conventional high-frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors, and similar appliances.

Virtually unlimited power thanks to parallel and 3-phase operation capability:

Up to 6 units of inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3 phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch:

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface:

All models have an RS-485 port. All you need to connect to your PC is Victron's MK3-USB VE. Bus to USB interface. Together with Victron's VEConfigure software, which can be downloaded free of charge from Victron's website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings, and programming the relay. This relay can for example be used to signal several alarm conditions or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

New applications of high-power inverters:

The possibilities of paralleled high-power inverters are truly amazing.


Product Name Victron Phoenix Inverter Compact 12/1600 230V VE.Bus CIN121620000
SKU CIN121620000
GTIN (Global Trade Item Number) 8719076021636
Brands Victron
Product Category Power Inverters
Model CIN121620000
Wattage 1300W
Peak Power 3000
Output Voltage and Frequency Output voltage: 230 VAC ±2% Frequency: 50 Hz ± 0,1% (1)
Protection IP 21
Input Voltage 9,5 – 17V 19 – 33V 38 – 66V
Operating Temperature Range -40 to +65ºC (fan-assisted cooling)
Humidity Max 95%
Dimensions 110 x 214 x 375
Battery-connection battery cables of 1.5 meters included
Protection category IP21
Efficiency 94
Net Weight (kg) 10.0 Kg


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.


The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
