Description

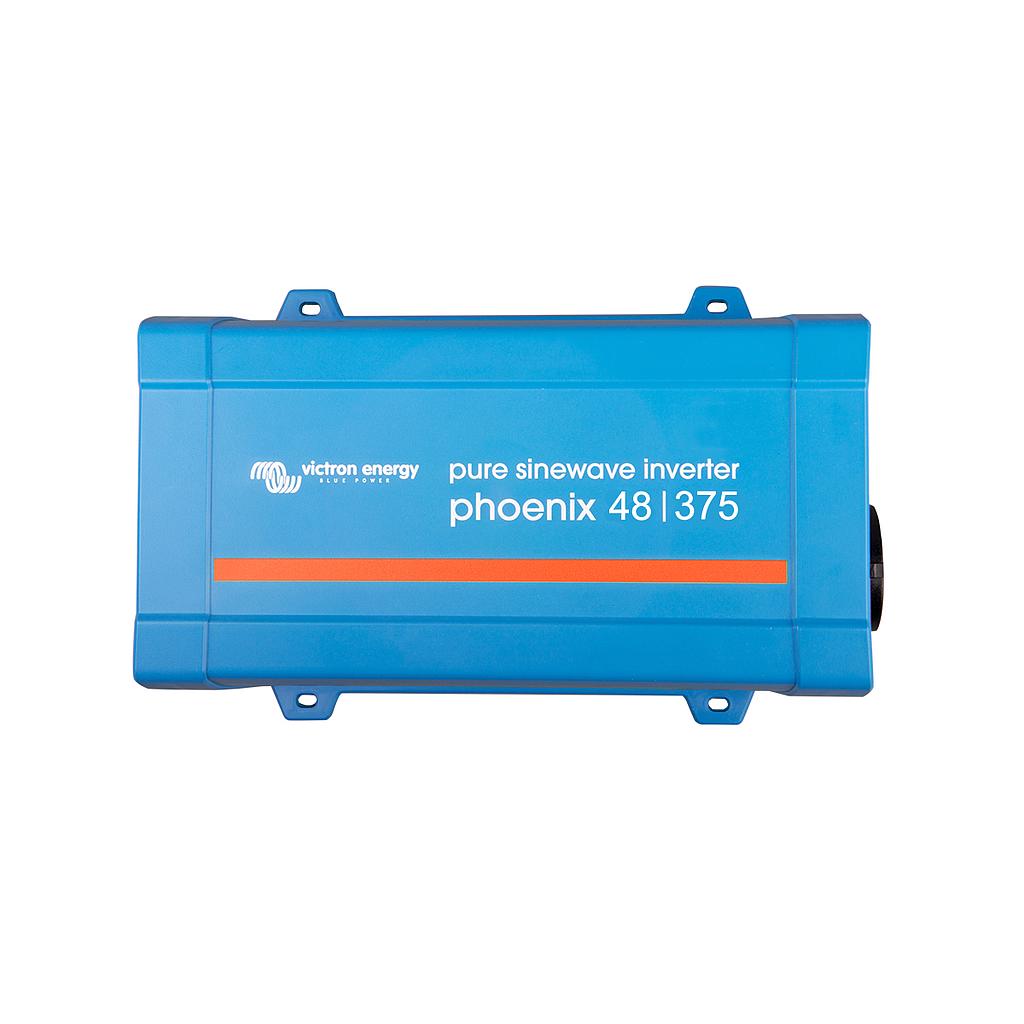

Victron Phoenix Pure Sine Wave Inverter 48V / 375VA VE.Direct AU/NZ, 5 Year Warranty. Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
VE.Direct communication port:
The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
FEATURES
Monitoring:
In- and output voltage, % load and alarms
Proven reliability:
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power:
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode:
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off:
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
LED diagnosis:
Please see manual for a description.
To transfer the load to another AC source: the automatic transfer switch:
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
DC connection with screw terminals:
No special tools are needed for installation.
SPECIFICATIONS
| Product Name | Victron Phoenix Inverter 48V/375VA VE.Direct AU/NZ PIN483750300 |
| SKU | PIN483750300 |
| GTIN (Global Trade Item Number) | 8719076034155 |
| Brands | Victron |
| Product Category | Power Inverters |
| Model | PIN483750300 |
| Wattage | 300W |
| Peak Power | 700W |
| Output Voltage and Frequency | 230VAC or 120VAC +/- 3% | 50Hz or 60Hz +/- 0,1% |
| Protection | a) output short circuit, b) overload, c) battery voltage too high, d) battery voltage too low, e) temperature too high, f) DC ripple too high |
| Input Voltage | 36.8 - 62.0V |
| Operating Temperature Range | -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C |
| Humidity | Max 95% |
| Dimensions | 260 x 165 x 86 |
| Battery-connection | Screw terminals |
| Protection category | IP 21 |
| Continuous Power at 25°C, Cos Phi 1 | 300W |
| Continuous Power at 40°C, Cos Phi 1 | 260W |
| Efficiency | 90% |
| Net Weight (kg) | 3.0 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
