Description

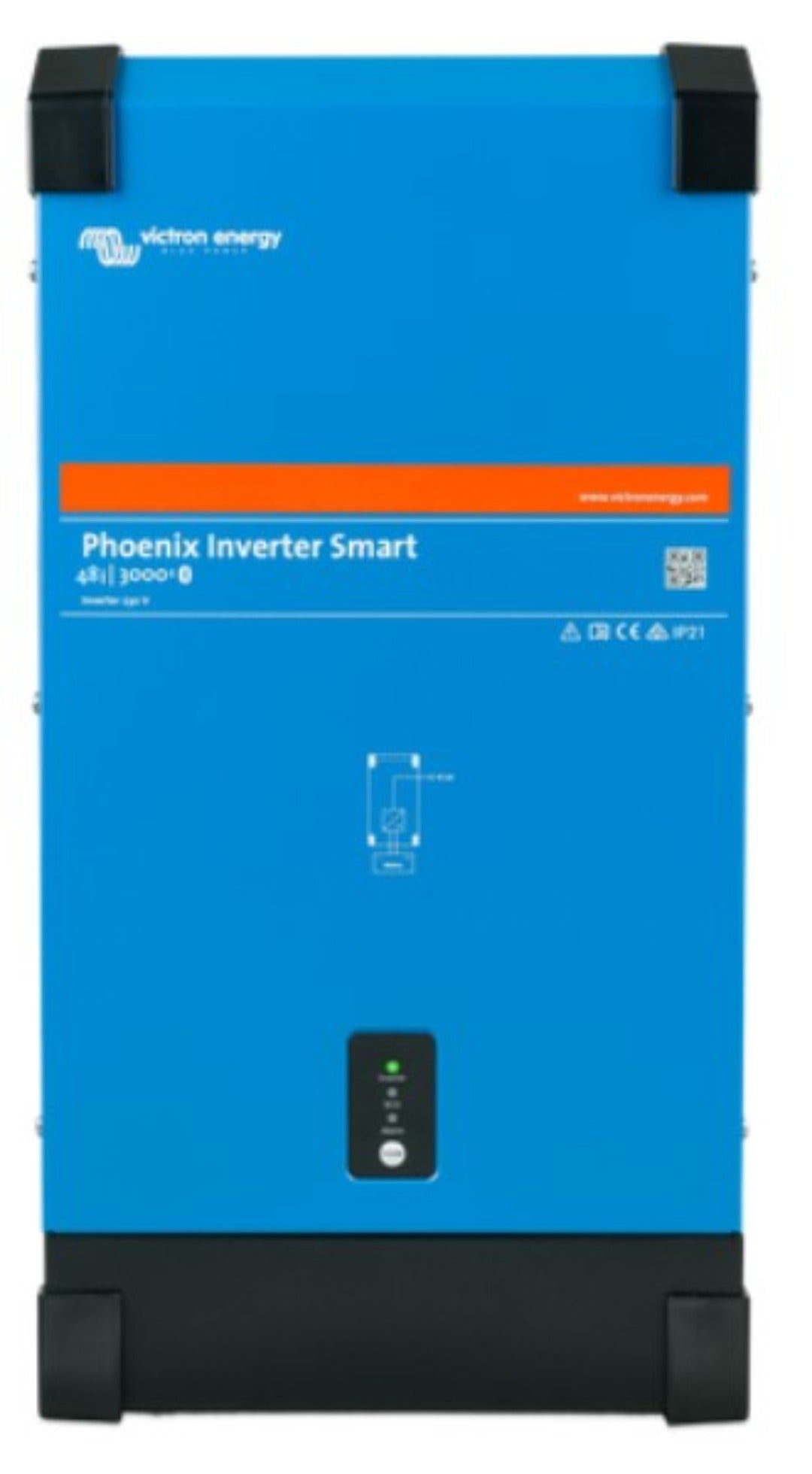

Victron Phoenix Inverter 48V / 3000VA 230V Smart, 5 Year Warranty. The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing. Models are available in 1600VA, 2000VA and 3000VA for 12, 24 or 48V systems.
It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.

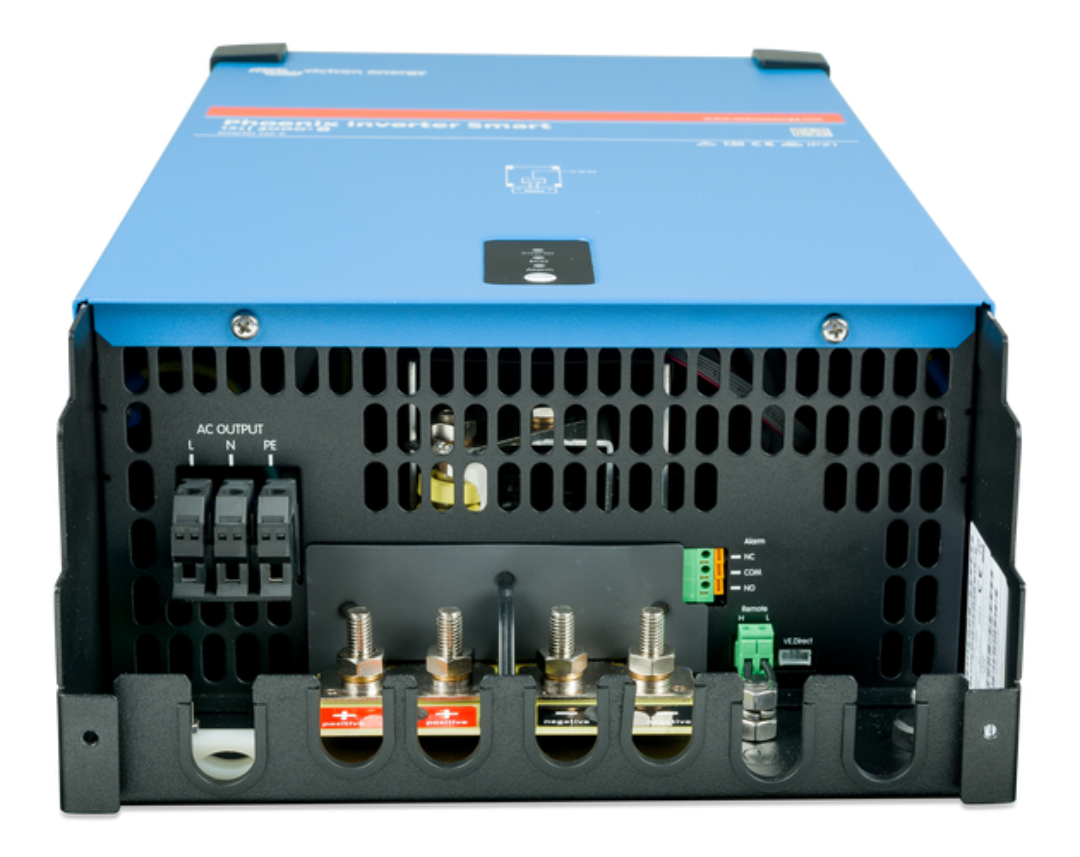

Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within VictronConnect.
Models:
12 / 24 / 48 Volt
FEATURES
Bluetooth built-in: fully configurable with a tablet or smartphone
- Low battery voltage alarm
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage: 210 - 245V
- Frequency: 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
- Alarm relay
Monitoring:
- In- and output voltage, load and alarms
VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.
Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
LED diagnosis
Please see manual for a description.
To transfer the load to another AC source: the automatic transfer switch
For Victron low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
SPECIFICATIONS
| Product Name | Victron Phoenix Inverter 48V/3000VA 230V Smart PIN482300000 |
| SKU | PIN482300000 |
| GTIN (Global Trade Item Number) | 8719076047384 |
| Brands | Victron |
| Product Category | Power Inverters |
| Model | PIN482300000 |
| Wattage | 2400W |
| Peak Power | 6000VA |
| Output Voltage and Frequency | 230VAC ±2% 50 Hz or 60Hz ± 0,1% (1) |
| Input Voltage | 37.2 – 68V |
| Operating Temperature Range | -40 to +65ºC (fan assisted cooling) |
| Humidity | Max 95% (non-condensing) |
| Dimensions | 485 mm x 285 mm x 150 mm (24V/48V) (H x W x D) |
| Battery-connection | 2+2 M8 bolts |
| Protection category | IP21 |
| Continuous Power at 25°C, Cos Phi 1 | 2400W |
| Continuous Power at 40°C, Cos Phi 1 | 2200W |
| Efficiency | 95% |
| Net Weight (kg) | 19.0 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
