Victron Phoenix Inverter 24/5000 230V Smart PIN242500000


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$2,905.00

Description

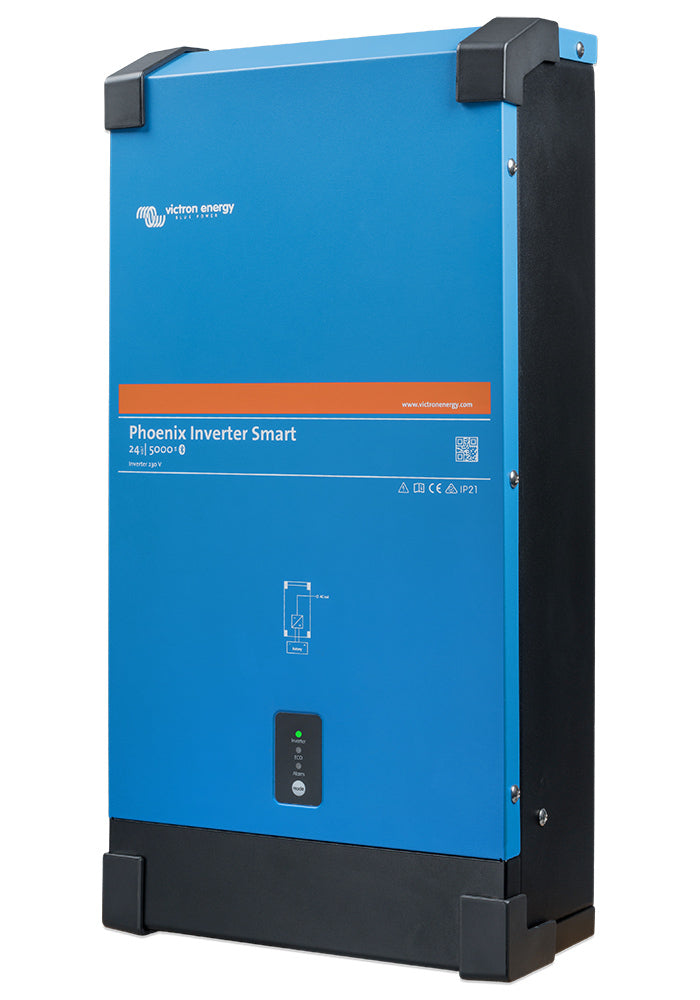

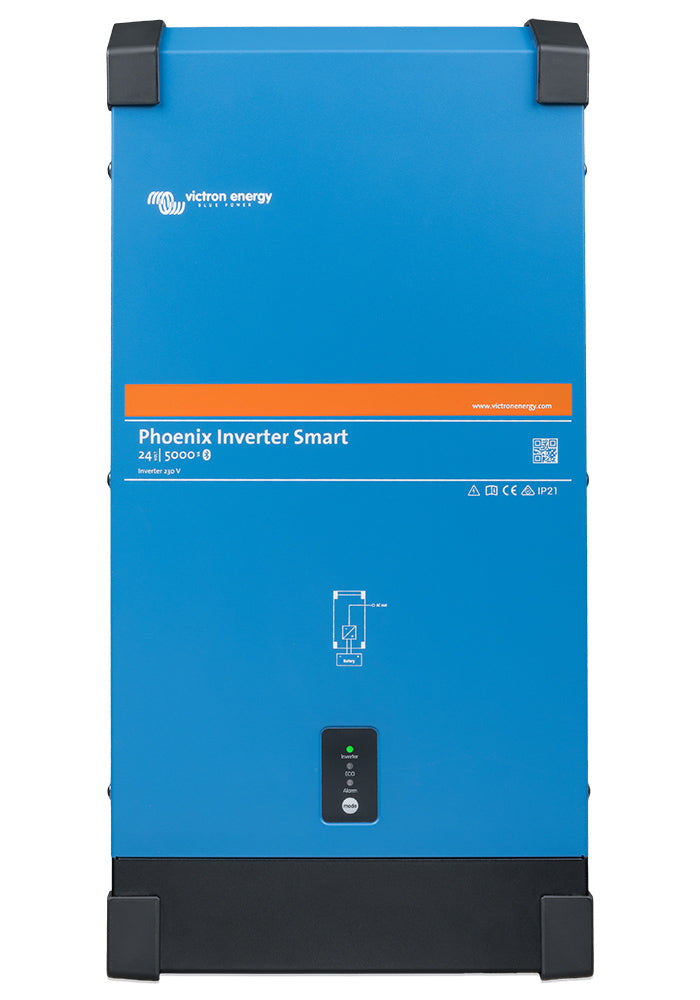

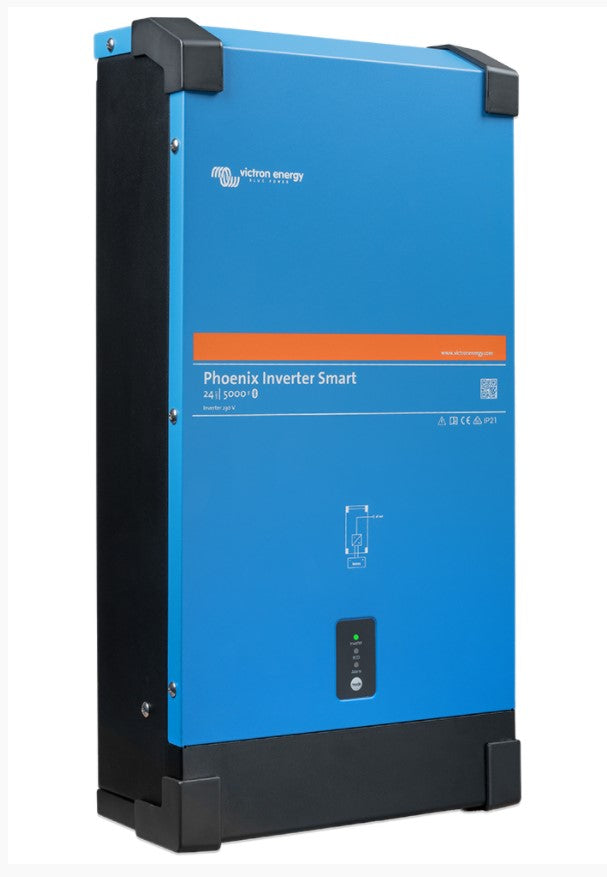

Phoenix Inverter Smart 24V/5000VA 230V Smart with Bluetooth built-in.

The Phoenix Inverter Smart is an efficient and reliable inverter. Built on Victrons' proven and field tested Phoenix inverter platform, it now comes with a new slimmer design and full metal casing.

It’s powerful enough to supply most common plug in appliances in your car, boat, caravan, RV or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.
Installation is simpler than ever before with terminals now more accessible for the installer, enabling a more professional finish.

Bluetooth is built-in, and makes setting up your high power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode and more, all from within Victron Connect.

FEATURES

Bluetooth built-in: fully configurable with a tablet or smartphone
  • Low battery voltage alarm
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage: 210 - 245V
  • Frequency: 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level
  • Alarm relay
  • Monitoring: In and output voltage, load and alarms
VE.Direct communication port - The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability - The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power - Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools

Remote on/off - A remote on/off switch or relay contact can be connected to a two pole connector. Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

SPECIFICATIONS


 SKU: PIN242500000
 Battery: 24V
 Watts (0.8PF): 4000W
 Output VA: 5000VA
 Manufacturer: Victron
 MPN: PIN242500000
 Shipping Weight: 33.00kg

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
