Description

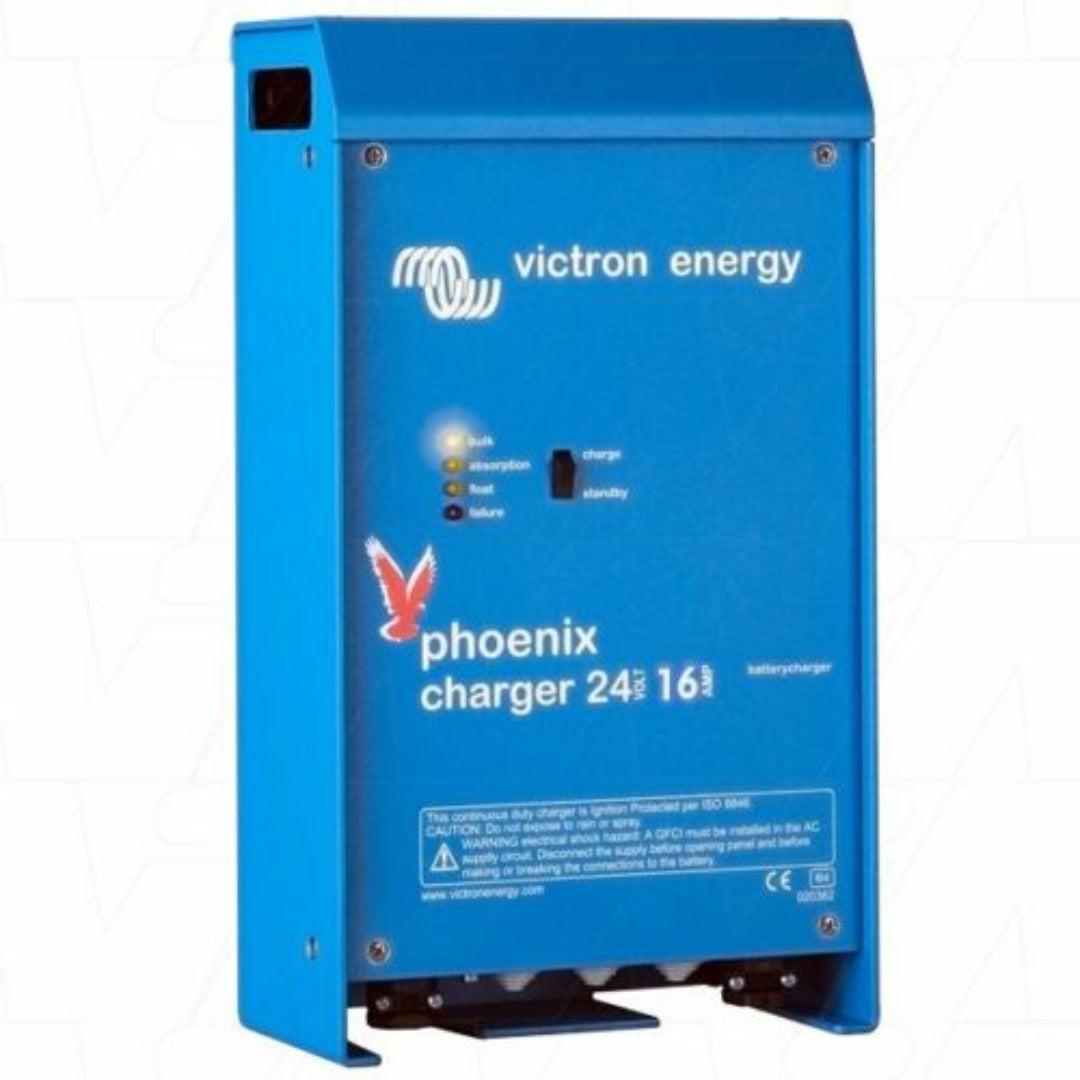

Victron Phoenix Charger 24/16 (2+1) 120-240V, 5 Year Warranty. Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
FEATURES
The right amount of charge: variable absorption time:
When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
Preventing damage due to excessive gassing: the BatterySafe mode:
If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
Less maintenance and aging when the battery is not in use: the Storage mode:
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
To increase battery life: temperature compensation:
Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.
Battery voltage sense:
In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.
Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation):
The chargers will accept a 90-400 V DC supply.
Computer interface:
Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with our VEConfigure software, which can be downloaded free of charge from Victron's website and the data link MK2-USB, all parameters of the chargers can be customized.
SPECIFICATIONS
| Product Name |
Victron Phoenix Charger 24/16 (2+1) 120-240V PCH024016001 |
| SKU | PCH024016001 |
| GTIN (Global Trade Item Number) | 8719076023272 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Output Current Rating (Amps) | 16.0 Amps |
| Operating Temperature Range | -20 to 60°C (0 - 140°F) |
| AC Input Connection | Screw-clamp 4 mm2 (AWG 11) |
| Humidity | Max 95% |
| Output System Voltage | 24V |
| Charge current | 16A |
| Dimensions | 350 x 200 x 108 mm (L x W x H) |
| Net Weight (kg) | 3.8 Kg |
| Charge voltage 'absorption' | 28,8 |
| Charge Voltage Float - Wet (25 degrees)** | 27,6 |
| Protection category | IP 21 |
| Battery-connection | M6 studs |
| Input Voltage | 90-265 (VAC) |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
