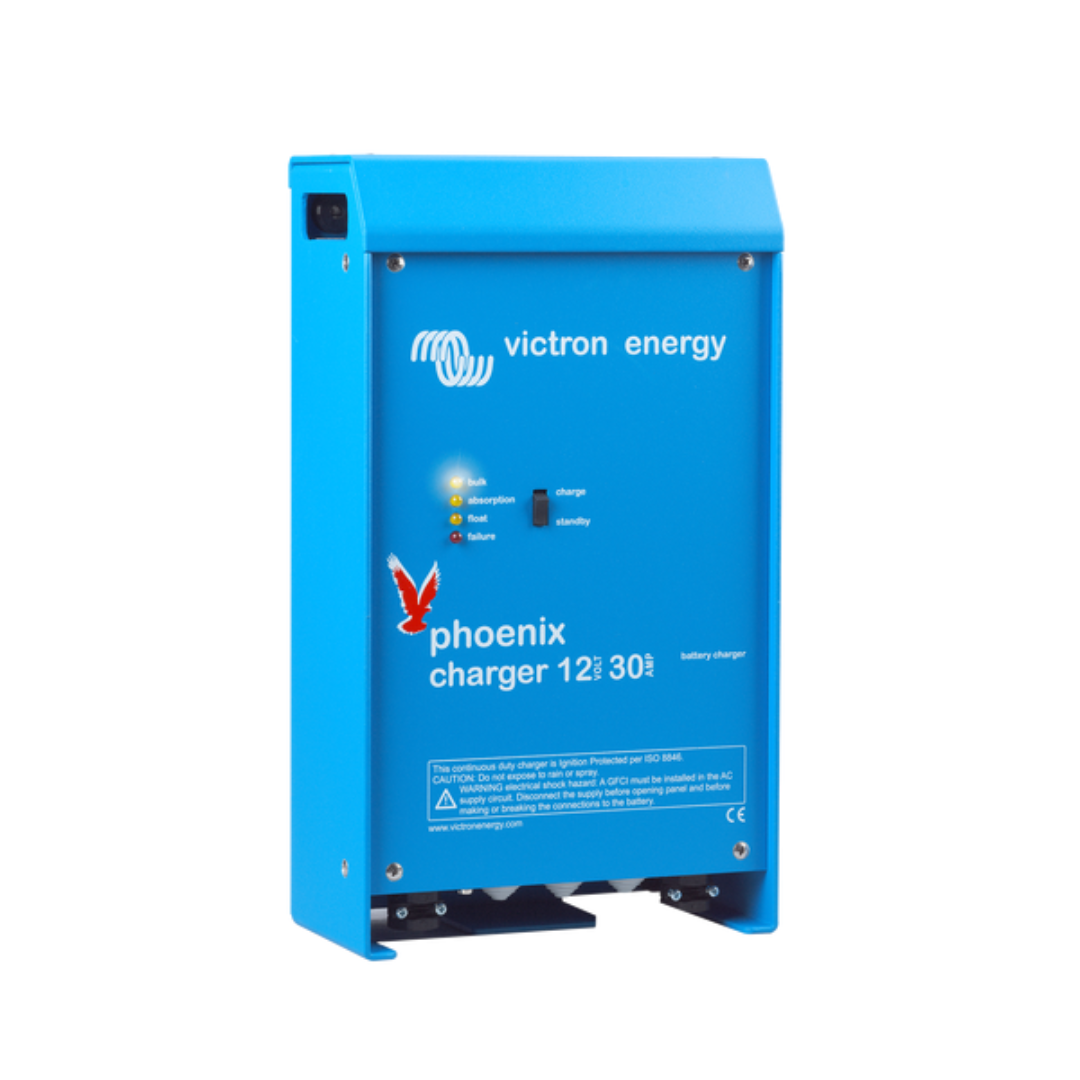

Victron Phoenix Charger 12/30 (2+1) 120-240V PCH012030001


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$827.00

Description

Victron Phoenix Charger 12/30 (2+1) 120-240V, 5 Year Warranty. Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

FEATURES

The right amount of charge: variable absorption time:

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode:

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Phoenix Charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and aging when the battery is not in use: the Storage mode:

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This
feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

To increase battery life: temperature compensation:

Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense:

In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Universal 90-265 V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation):

The chargers will accept a 90-400 V DC supply.

Computer interface:

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with our VEConfigure software, which can be downloaded free of charge from Victron's website and the data link MK2-USB, all parameters of the chargers can be customized.

SPECIFICATIONS

Product Name Victron Phoenix Charger 12/30 (2+1) 120-240V PCH012030001
SKU PCH012030001
GTIN (Global Trade Item Number) 8719076023258
Brands Victron
Product Category Battery Chargers
Output Current Rating (Amps) 30.0 Amps
Operating Temperature Range -20 to 60°C (0 - 140°F)
AC Input Connection Screw-clamp 4 mm2 (AWG 11)
Humidity Max 95%
Output System Voltage 12V
Charge current 30A
Dimensions 350 x 200 x 108 mm (L x W x H)
Net Weight (kg) 3.8 Kg
Charge voltage 'absorption' 14,4
Charge Voltage Float - Wet (25 degrees)** 13,8
Protection category IP 21
Battery-connection M6 studs
Input Voltage 90-265 (VAC)
Manufacturers Warranty 5 Years

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
