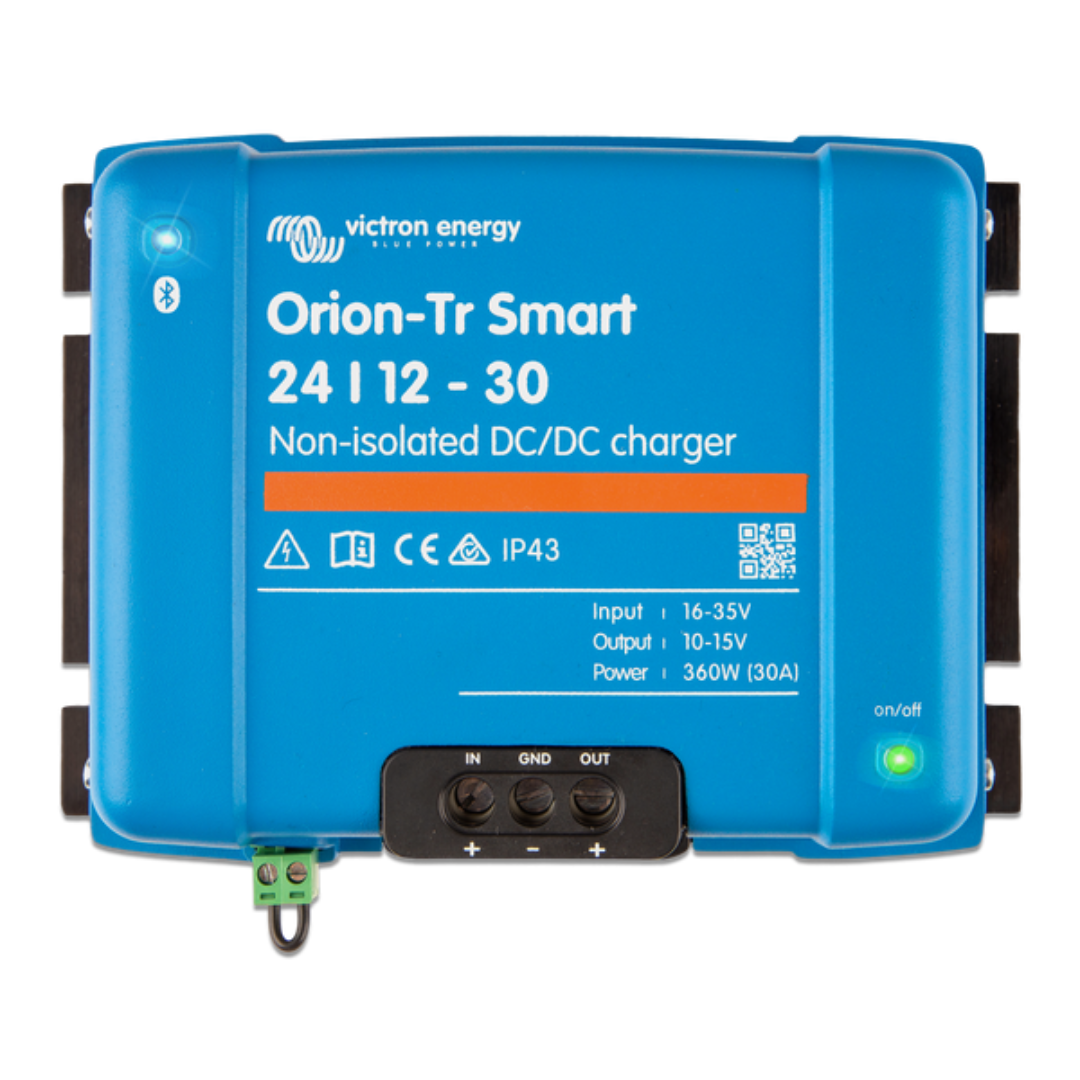

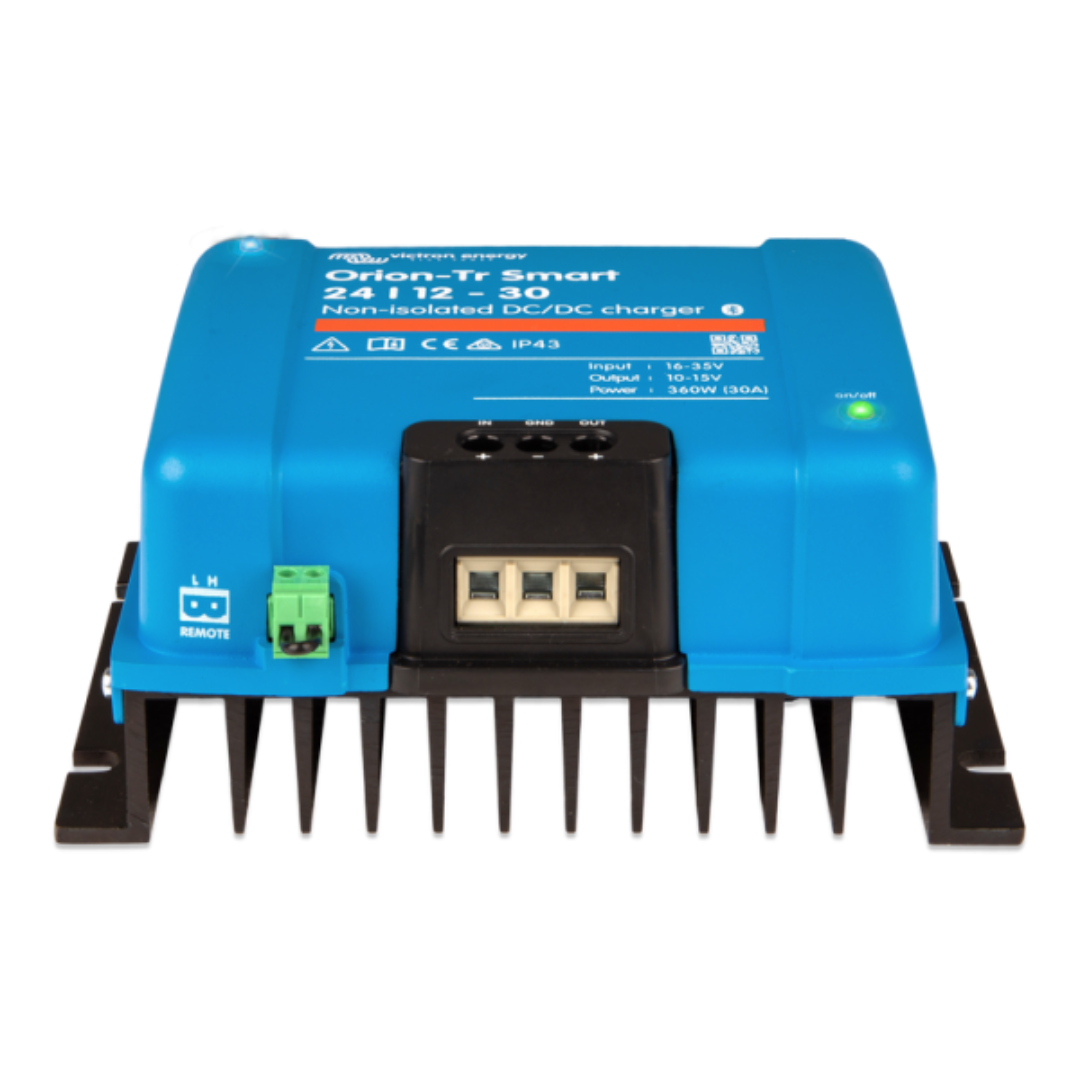

Victron Orion-Tr Smart 24/12-30A (360W) Non-isolated DC-DC charger, 5 Year Warranty. The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
- Limiting corrosion (Typically marine applications).
- Preventing noise on one battery system from effecting the other battery system.
- The DC to DC charger can remain cheaper
- Solar can be charging into the battery system simultaneously with the on-board vehicle charging
- You can purchase the correct solar regulator to match your solar panels, which will provide the best efficiency for solar charging.
|Product Name||Victron Orion-Tr Smart Non-isolated DC-DC Charger 24/12-30A 360W ORI241236140|
|GTIN (Global Trade Item Number)||8719076048978|
|Product Category||Battery Chargers|
|Output Current Rating (Amps)||30.0 Amps|
|DC Input Voltage||20-35V|
|DC Output Voltage||12,2V|
|Standby Current||Less than 1 mA|
|Operating Temperature Range||-20 to +55°C (derate 3% per °C above 40°C)|
|Humidity||Max. 95% non-condensing|
|Output System Voltage||24V|
|Short Circuit Current Isc(A)||60A|
|Dimensions||130 x 186 x 80 mm (L x W x H)|
|Net Weight (kg)||1.8 Kg|
|Under Voltage Shutdown||14V|
|Maximum Charge Current||45A|
|No load power consumption||<100 mA|
|Manufacturers Warranty||5 Years|
