Description

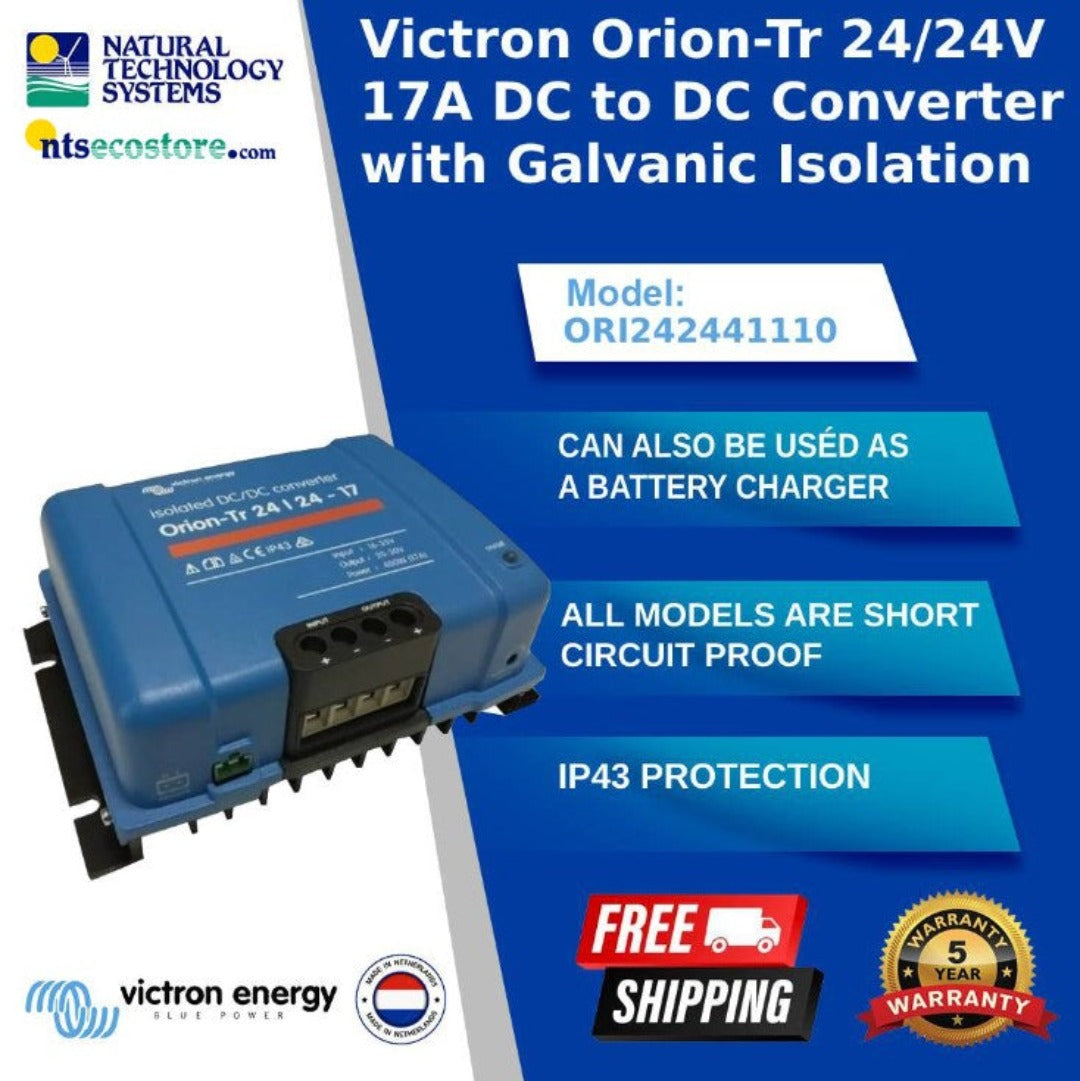

| Product Name | Victron Orion-Tr Isolated DC-DC Converter 24/24-5A 120W ORI242410110R | Victron Orion-Tr Isolated DC-DC Converter 24/24-12A 280W ORI242428110 | Victron Orion-Tr Isolated DC-DC Converter 24/24-17A 400W ORI242441110 |
| DESCRIPTIONS | Experience the power of adaptability with the Victron Orion-Tr Isolated DC-DC Converter 24/24V. This exceptional converter offers versatile power solutions to cater to your specific needs. With three model types to choose from, you have the flexibility to select the perfect converter that aligns with your energy requirements and application demands. | ||
| FEATURES | >Remote on-off | ||
| >Adjustable output voltage: can also be used as a battery charger | |||
| >All models are short circuit proof and can be paralleled to increase output current | |||
| >IP43 protection | |||
| >Screw terminals | |||
| >Input fuse | |||
SPECIFICATIONS
| Product Name | Victron Orion-Tr Isolated DC-DC Converter 24/24-5A 120W ORI242410110R | Victron Orion-Tr Isolated DC-DC Converter 24/24-12A 280W ORI242428110 | Victron Orion-Tr Isolated DC-DC Converter 24/24-17A 400W ORI242441110 |
| SKU: | ORI242410110R | ORI242428110 | ORI242441110 |
| Brand: | Victron | ||
| GTIN: | 8719076016892 | 8719076035268 | 8719076038856 |
| Product Category: | Converters | ||
| Warranty Period: | 5 Years | ||
| Net Weight (kg): | 0.42 | 1.3 | 1.8 |
| Rating (A): | 5A | 12A | 17A |
| DC Output Voltage: | 20-30V +/- 0,2V | ||
| Dimensions: | 47 x 113 x 100 | 70 x 186 x 130 | |
| DC Input Voltage: | 16-35V | 20-35V | |
| Efficiency: | 87% | 89% | |
| Operating Temperature Range: | -20 to +55°C (derate 3% per °C above 40°C) | ||
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
