Description

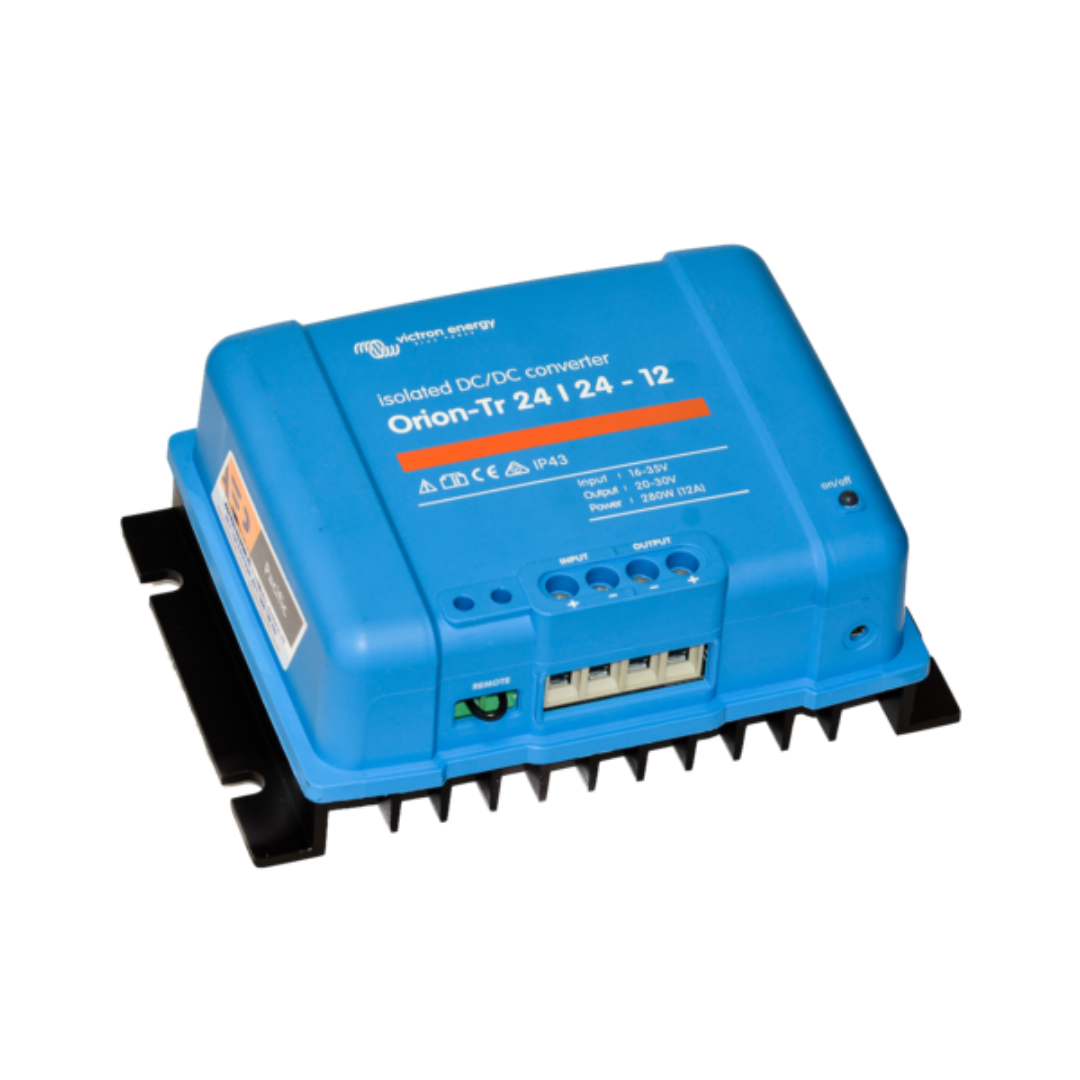

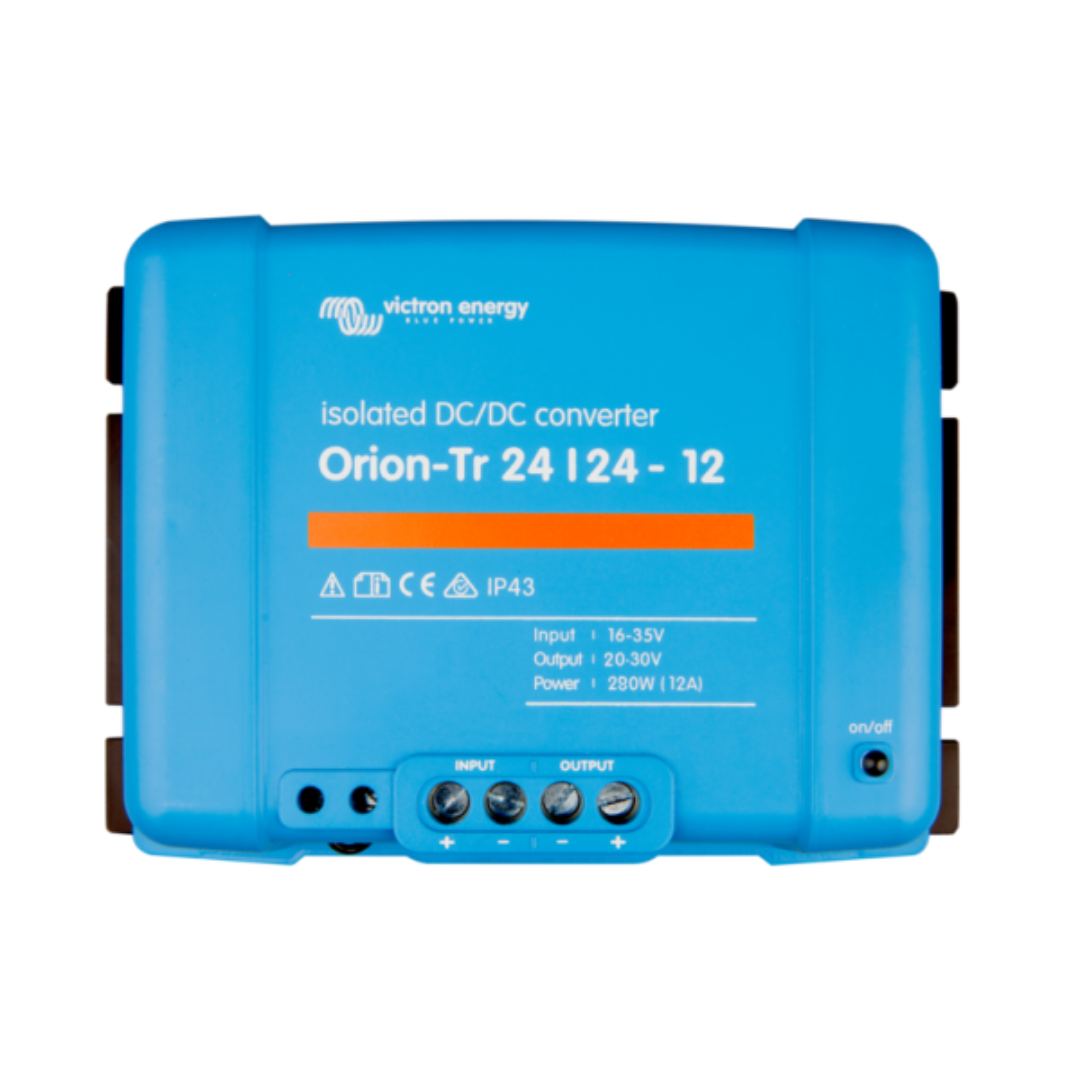

Elevate your power management with the Victron Orion-Tr Isolated DC-DC Converter 24/24-12A 280W ORI242428110. This cutting-edge converter redefines power transformation, offering a seamless and efficient process to ensure a stable energy source for your applications. Whether you're powering intricate electronics or heavy-duty machinery, this converter delivers unmatched performance.
FEATURES
Remote on-off:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current:
An unlimited number of units can be connected in parallel.
IP43 protection:
When installed with the screw terminals oriented downwards.
Screw terminals:
No special tools needed for installation.
Input fuse:
On 12V and 24V input models only.
SPECIFICATIONS
| Product Name |
Victron Orion-Tr Isolated DC-DC Converter 24/24-12A 280W ORI242428110 |
| SKU | ORI242428110 |
| GTIN (Global Trade Item Number) | 8719076035268 |
| Brands | Victron |
| Product Category | Converters |
| Amps | 12.0 Amps |
| DC Input Voltage | 16-35V |
| DC Output Voltage | 20-30V +/- 0,2V |
| Rating (A) | 12A |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Protection category | IP43 |
| Efficiency | 89% |
| Dimensions | 70 x 186 x 130 |
| Net Weight (kg) | 1.3 Kg |
| Manufacturers Warranty | 5 Year Warranty |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
