Description

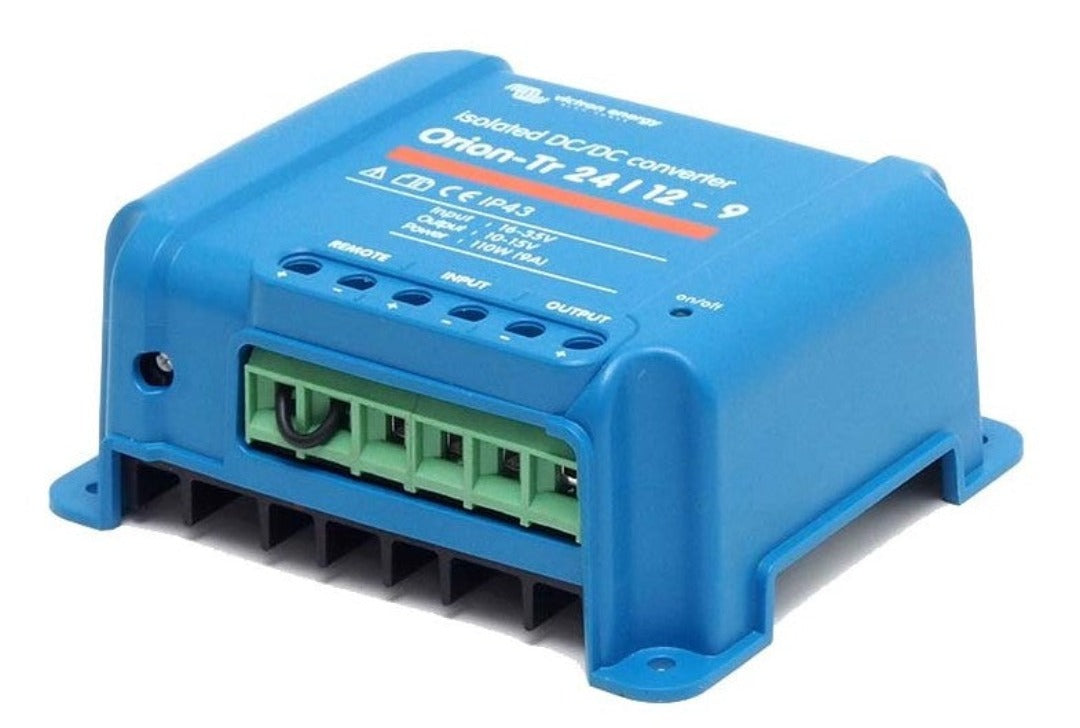

Victron Orion-Tr 24/12V 9A DC to DC Converter with Galvanic Isolation 110W, 5-Year Warranty. Its IP64 enclosure provides superior protection from dust and water, ensuring reliable performance in any environment. Plus, it comes with a full five-year warranty for peace of mind.
FEATURES
Remote on-off:
The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or for example the engine runs/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current:
An unlimited number of units can be connected in parallel.
IP43 protection:
When installed with the screw terminals oriented downward.
Screw terminals:
No special tools are needed for installation.
Input fuse:
On 12V and 24V input models only.
SPECIFICATIONS
| SKU: ORI241210110R |
| Brand: Victron |
| GTIN: 8719076016885 |
| Product Category: Converters |
| Warranty Period: 5 Years |
| Rating (A): 9A |
| DC Output Voltage: 10-15V +/- 0,2V |
| Dimensions: 47 x 113 x 100 |
| Protection category: IP43 |
| DC Input Voltage: 16-35V |
| Net Weight (kg): 0.42 |
| Efficiency: 85% |
| Operating Temperature Range: -20 to +55°C (derate 3% per °C above 40°C) |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
