Description

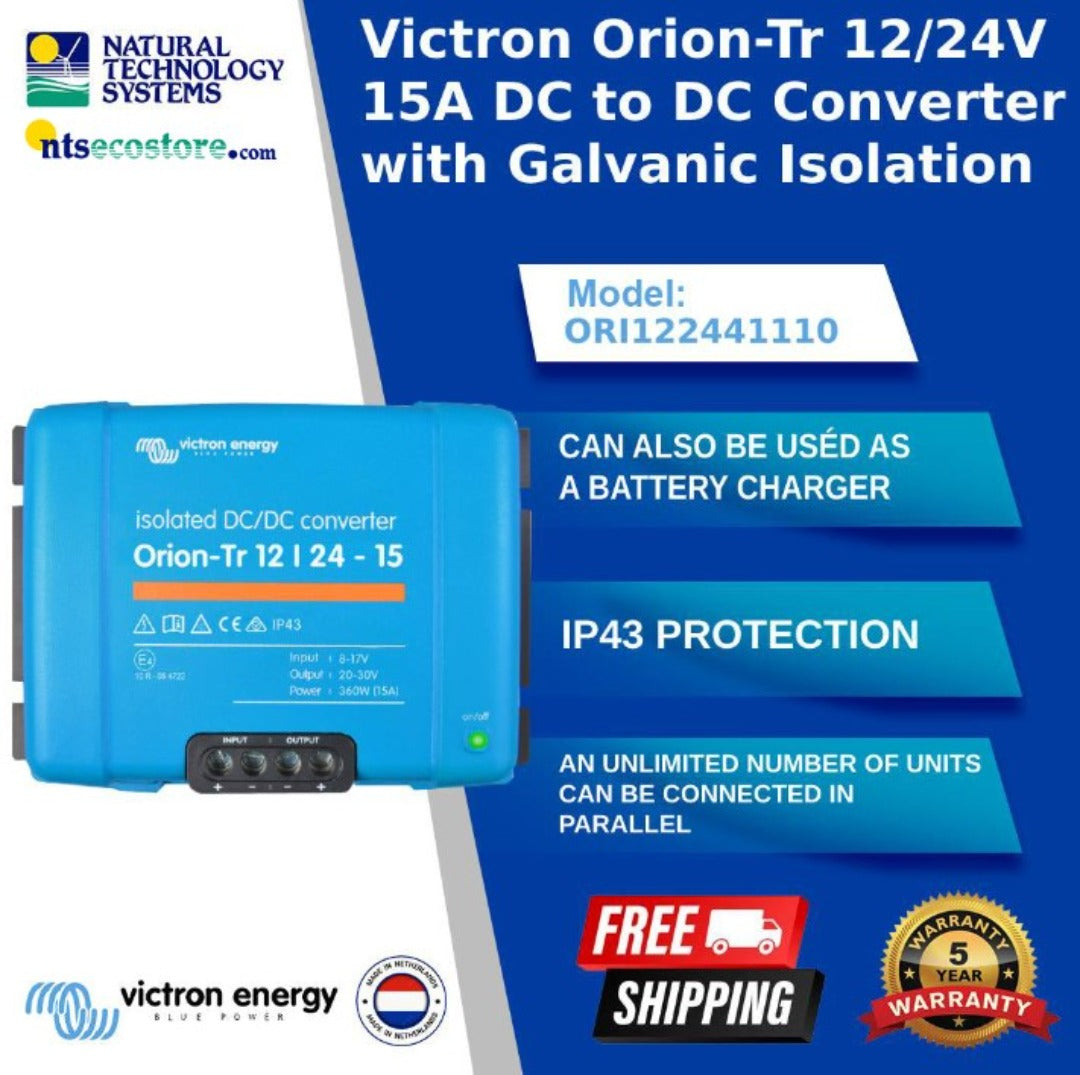

| Product Name | Victron Orion-TR Isolated DC-DC Converter 12/24-5A 120W ORI122410110 | Victron Orion-TR Isolated DC-DC Converter 12/24-10A 240W ORI122424110 | Victron Orion-TR Isolated DC-DC Converter 12/24-15A 360W ORI122441110 |
| DESCRIPTIONS | Victron Orion-TR 12/24V Isolated DC-DC Converter is engineered to withstand vibrations, impacts, and extreme temperature range changes, all while protecting and supplying power to essential devices. It also comes with an extensive 5-year warranty. | ||
| FEATURES | >Remote on-off | ||
| >Adjustable output voltage: can also be used as a battery charger | |||
| >All models are short circuit proof and can be paralleled to increase output current | |||
| >IP43 protection | |||
| >Screw terminals | |||
| >Input fuse | |||
SPECIFICATIONS
| Product Name | Victron Orion-TR Isolated DC-DC Converter 12/24-5A 120W ORI122410110 | Victron Orion-TR Isolated DC-DC Converter 12/24-10A 240W ORI122424110 | Victron Orion-TR Isolated DC-DC Converter 12/24-15A 360W ORI122441110 |
| SKU: | ORI122410110 | ORI122424110 | ORI122441110 |
| Brand: | Victron | ||
| GTIN: | 8719076016724 | 8719076035244 | 8719076038832 |
| Product Category: | Converters | ||
| Warranty Period: | 5 Years | ||
| Net Weight (kg): | 0.42 | 1.3 | 1.8 |
| Rating (A): | 5A | 10A | 15A |
| DC Output Voltage: | 20-30V +/- 0,2V | ||
| Dimensions: | 47 x 113 x 100 | 70 x 186 x 130 | |
| DC Input Voltage: | 8-17V | 10-17V | |
| Efficiency: | 88% | ||
| Operating Temperature Range: | -20 to +55°C (derate 3% per °C above 40°C) | ||
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
