Description
| Product Name | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 5A ORI241205260 | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 10A ORI241210260 | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 20A ORI241220260 |

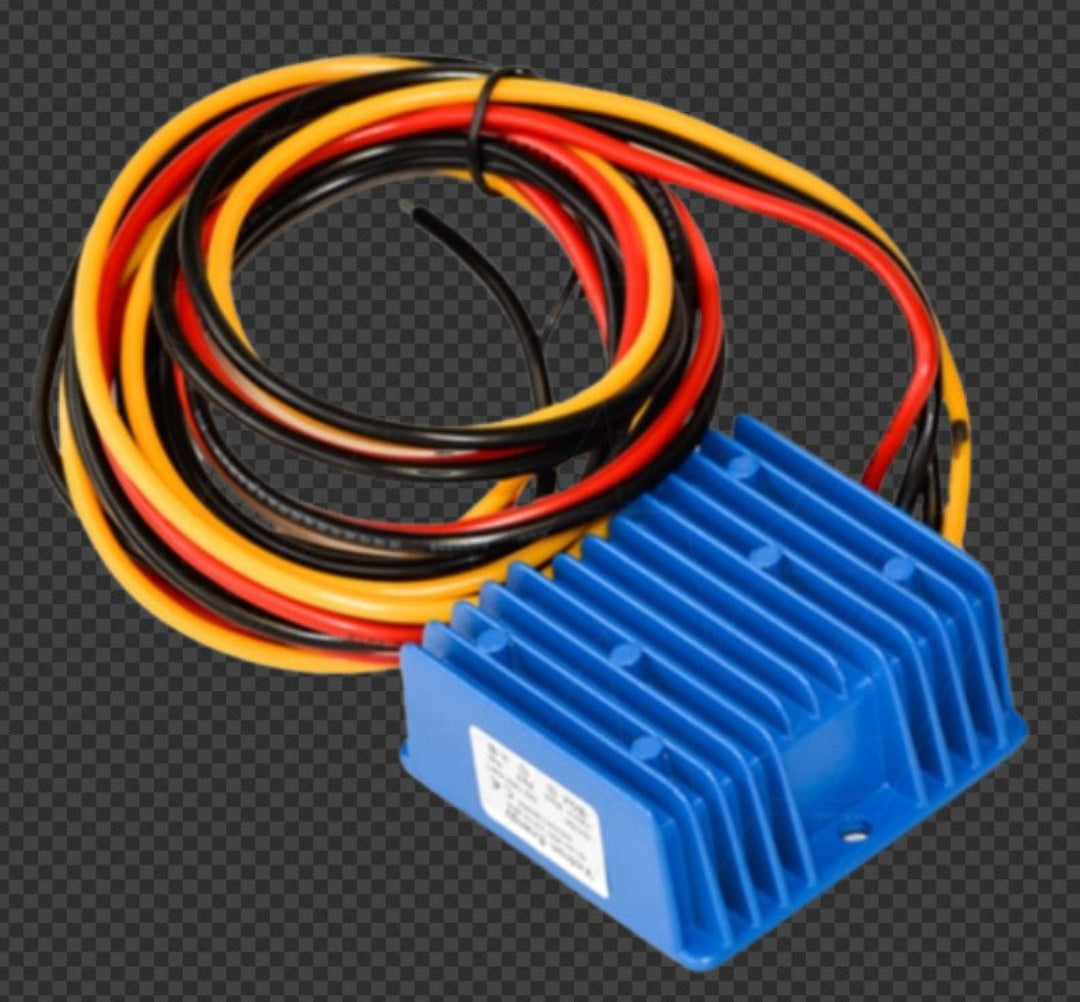

| DESCRIPTIONS | Victron Orion IP67 24/12V DC to DC Converter Non-Isolated 120W. Completely encapsulated: waterproof, shockproof, and ignition protected. Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin. | ||
| FEATURES | Completely encapsulated: waterproof, shockproof, and ignition protected | ||
| Extra-long input and output cables | |||
| Wide input voltage range | |||
| Protected against overheating | |||
SPECIFICATIONS
| Product Name | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 5A ORI241205260 | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 10A ORI241210260 | Victron Orion IP67 24/12V DC-DC Converter Non Isolated 20A ORI241220260 |
| SKU: | ORI241205260 | ORI241210260 | ORI241220260 |
| Brand: | Victron | ||
| GTIN: | 8719076048428 | 8719076048435 | 8719076048442 |
| Product Category: | Converters | ||
| Warranty Period: | 5 Years | ||
| Net Weight (kg): | 0.05 | 0.3 | 0.3 |
| Rating (A): | 5A | 10A | 20A |
| DC Output Voltage: | 12V +/- 3% | ||
| Dimensions: | 20 x 43 x 25 | 32 x 74 x 74 | |
| Short circuit protection: | Yes | ||
| Protection category: | IP67 | ||
| DC Input Voltage: | 15-40VDC | ||
| Overload protection: | Hiccup mode recovers automatically after the fault condition is removed | ||
| Efficiency: | 93% | 95% | |
| Operating Temperature Range: | -20 to +70°C (full rated output up to 40°C) | ||
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
