Description

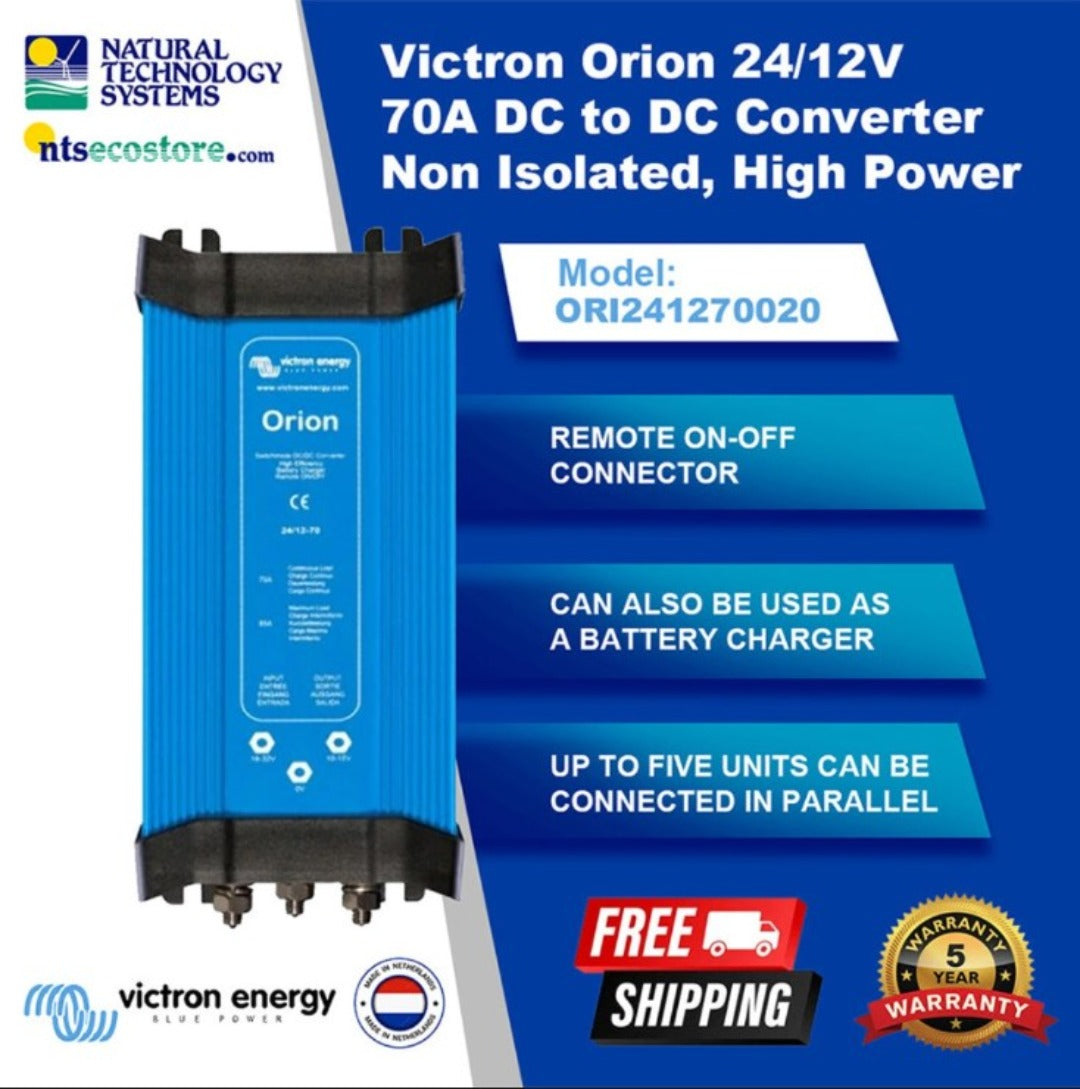

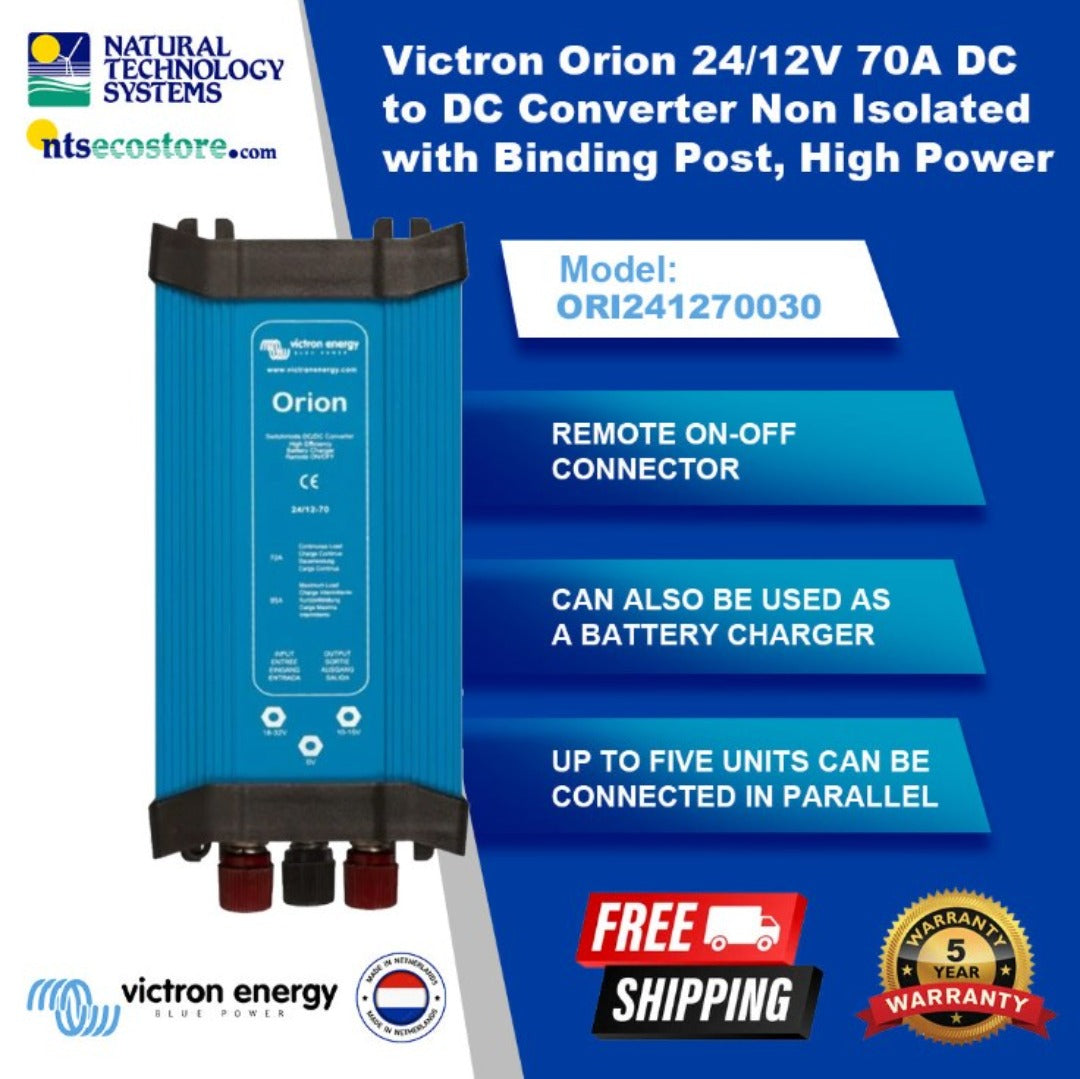

| Product Name | Victron Orion 24/12V DC-DC Converter Non Isolated 25A ORI241225020 | Victron Orion 24/12V DC-DC Converter Non Isolated 40A ORI241240021 | Victron Orion 24/12V DC-DC Converter Non Isolated 70A ORI241270020 | Victron Orion 24/12V DC-DC Converter Non Isolated 70A with Binding Posts ORI241270030 |
| DESCRIPTIONS | Victron Orion 24/12V DC to DC Converter Non-Isolated, High Power, 5-Year Warranty. | |||
| FEATURES | Remote on-off connector | |||
| All models with adjustable output can also be used as battery chargers | ||||
| All models with adjustable output can be paralleled to increase the output current | ||||
SPECIFICATIONS
| Product Name | Victron Orion 24/12V DC-DC Converter Non Isolated 25A ORI241225020 | Victron Orion 24/12V DC-DC Converter Non Isolated 40A ORI241240021 | Victron Orion 24/12V DC-DC Converter Non Isolated 70A ORI241270020 | Victron Orion 24/12V DC-DC Converter Non Isolated 70A with Binding Posts ORI241270030 |
| SKU: | ORI241225020 | ORI241240021 | ORI241270020 | ORI241270030 |
| Brand: | Victron | |||
| GTIN: | 8719076023012 | 8719076038726 | 8719076023043 | 8719076023050 |
| Product Category: | Converters | |||
| Warranty Period: | 5 Years | |||
| Net Weight (kg): | 0.7 | 0.85 | 0.9 | |
| Rating (A): | 25A | 40A | 70A | |
| DC Output Voltage: | Adjustable 10–15V F set 13,2V | |||
| Dimensions: | 160 x 88 x 65 | 185 x 88 x 65 | 195 x 88 x 65 | |
| DC Input Voltage: | 18-35V | |||
| Efficiency: | 96% | 95% | 92% | |
| Operating Temperature Range: | -20 to +55°C | |||
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
