Description

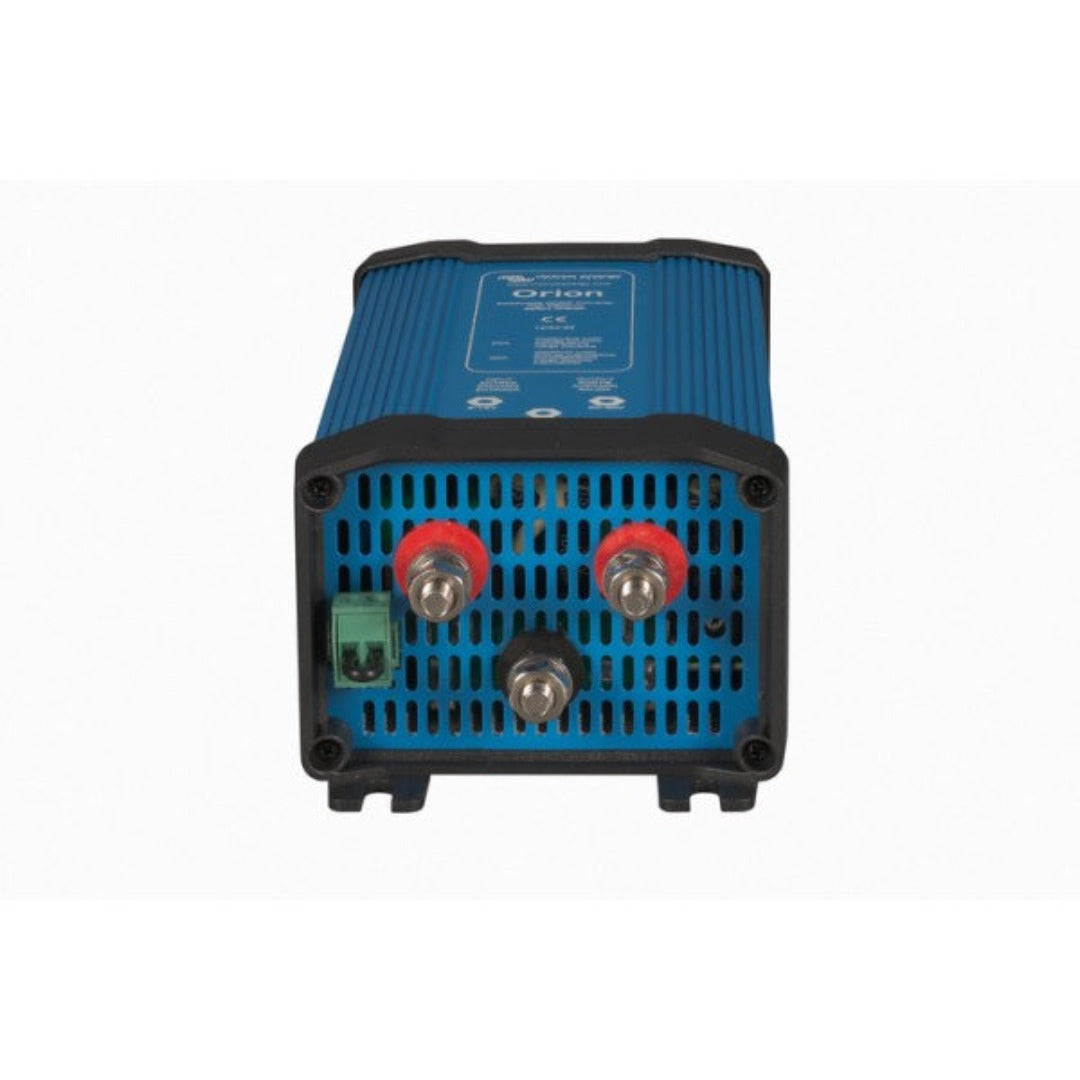

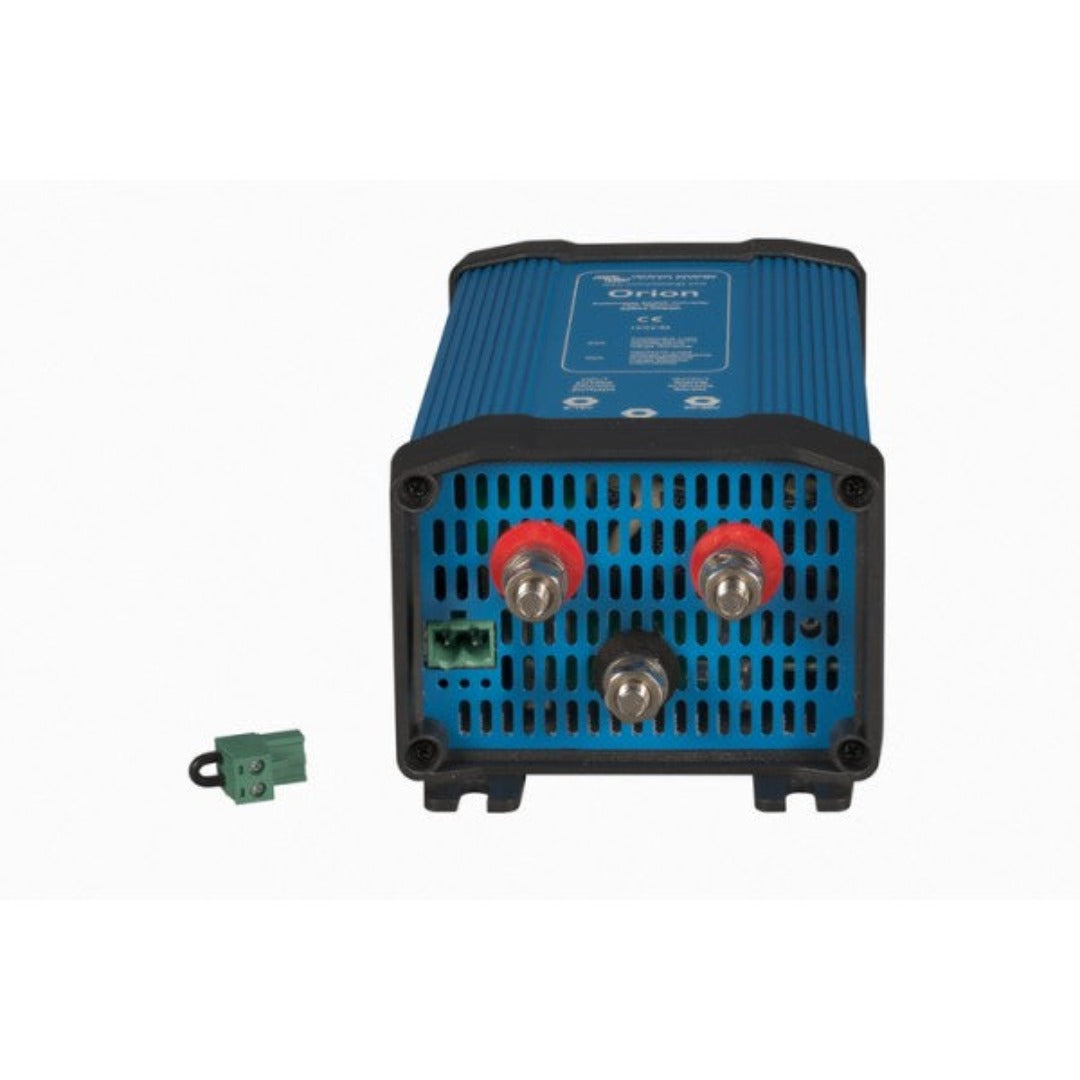

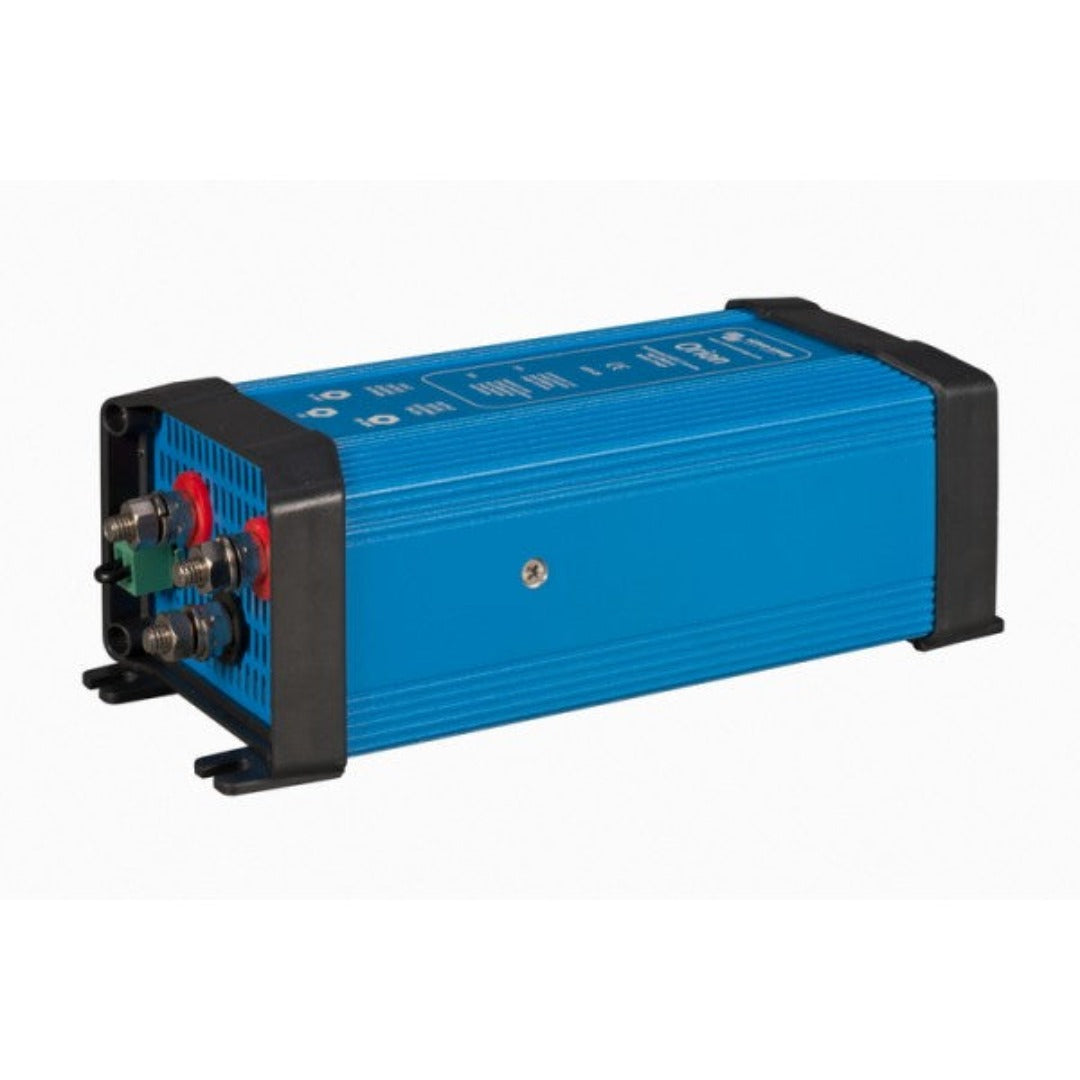

Victron Orion 12/24V 20A DC to DC Converter Non Isolated, High Power, 5 Year Warranty.
FEATURES
Remote on-off connector:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current:
Up to five units can be connected in parallel.
SPECIFICATIONS
|
Product Name |
Victron Orion 12/24V DC-DC Converter Non Isolated 20A ORI122420020 |
| SKU | ORI122420020 |
| GTIN (Global Trade Item Number) | 8719076022763 |
| Brands | Victron |
| Product Category | Converters |
| Amps | 20.0 Amps |
| DC Input Voltage | 9-18V |
| DC Output Voltage | Adjustable 20-30V F set 26,4V |
| Rating (A) | 20A |
| Operating Temperature Range | -20 to +55°C |
| Efficiency | 93% |
| Dimensions | 195 x 88 x 65 |
| Net Weight (kg) | 0.9 Kg |
| Manufacturers Warranty | 5 Year Warranty |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
