Description

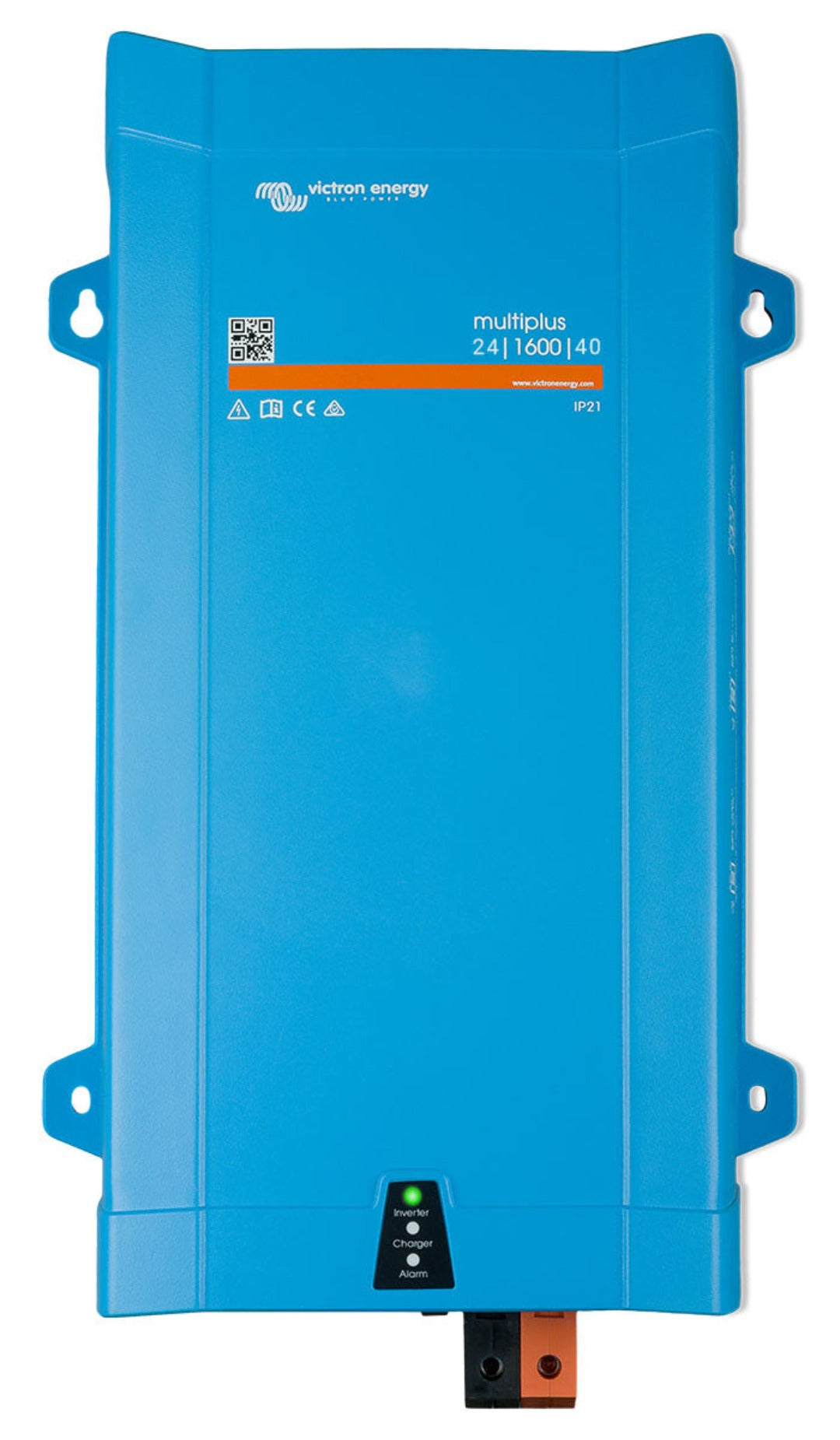

Victron MultiPlus Inverter Charger 24V / 1600VA / 40A, Battery Charger with 16A AC Transfer Switch, 5 Year Warranty.
FEATURES
Multifunctional:
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
Uninterrupted AC power (UPS function):
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control:
Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for-hire vehicles and more...
Proven reliability:
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
PowerControl - Dealing with limited generator, shore side, or grid power:
With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for
charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power:
Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately
compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
High start-up power:
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
SPECIFICATIONS
| Product Name | Victron MultiPlus Inverter Charger 24/1600/40-16 PMP242160000 |
| SKU | PMP242160000 |
| GTIN (Global Trade Item Number) | 8719076044987 |
| Brands | Victron |
| Product Category | Power Inverter Chargers |
| Model | MultiPlus 24/1600/40 |
| Product Type | MultiPlus Inverter/Charger |
| Output Current Rating (Amps) | 40.0 Amps |
| Wattage | 1300W |
| Peak Power | 2800W |
| Output Voltage and Frequency | 230VAC ± 2% / 50Hz ± 0,1% (1) |
| Output Power | 1300W (continuous output power at 25°C) | 1100W (continuous output power at 40°C) | 800W (continuous output power at 65°C) |
| Input Voltage | 19 – 33V |
| Operating Temperature Range | -40 to +65°C (fan assisted cooling) |
| AC Input | 187-265 VAC | 45 – 65 Hz |
| Inverter Output Continuous Watts | 1300W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 28.8V |
| Charge Voltage Float - Wet (25 degrees)** | 27.6V |
| Charge voltage 'storage' | 26.4V |
| Inverter Output Nominal Efficiency | 94% (maximum) |
| No load power consumption | 9W | 3W in search mode |
| Product Dimensions (mm) LxWxH | 120 mm x 265 mm x 470 mm |
| Net Weight (kg) | 10.2 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
