Description
The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
FEATURES
Uninterrupted AC Power (UPS Function):
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control:
Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more.
Proven reliability:
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
PowerControl - Dealing with limited generator, shore side or grid power (800VA/1200VA):
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power (800VA/1200VA):
Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
High start-up power:
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode:
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay:
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on / off / charger on:
Three pole connector.
SPECIFICATIONS
| Product Name |

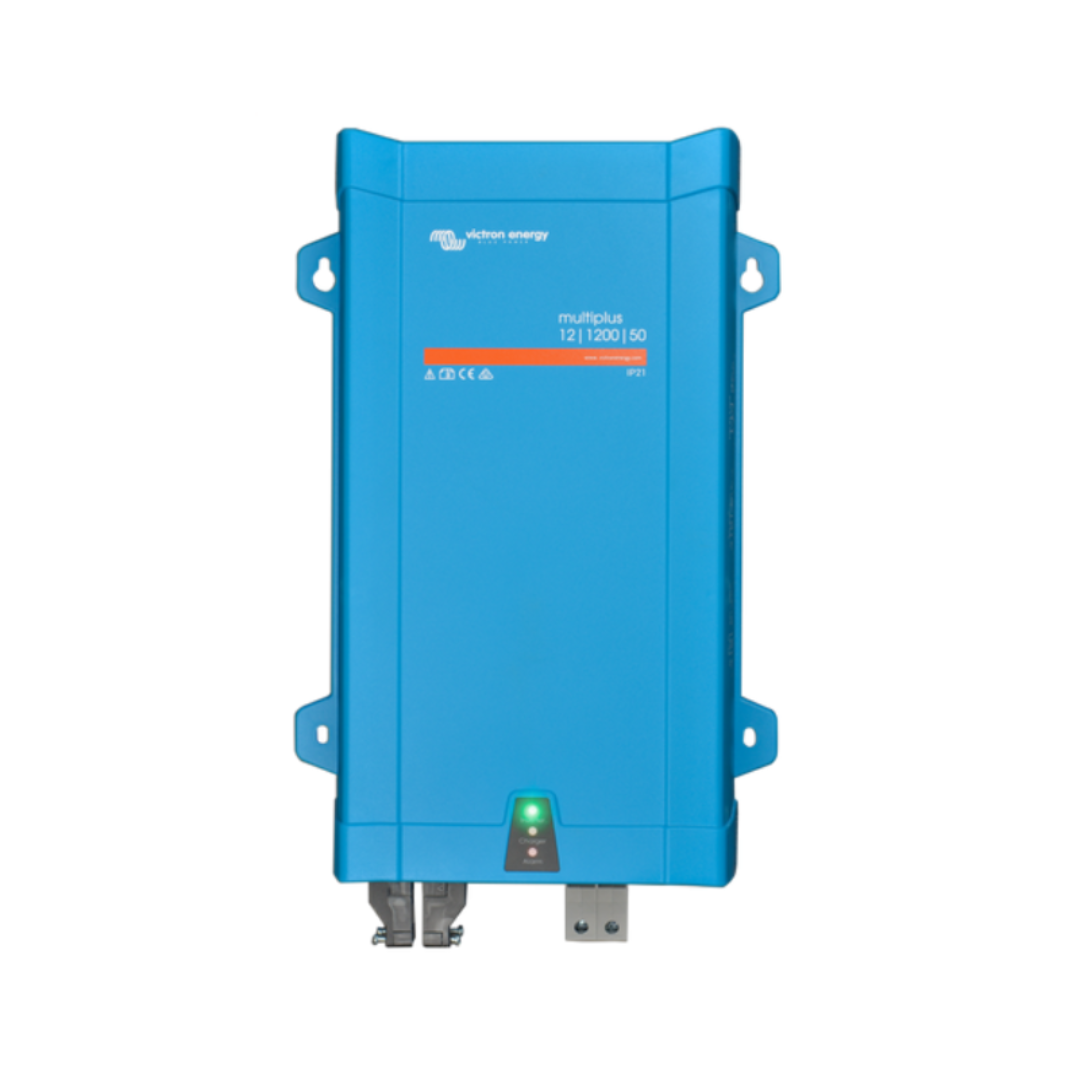

Victron MultiPlus Inverter Charger 12/1200/50-16 PMP122120000 |
| SKU | PMP122120000 |
| GTIN (Global Trade Item Number) | 8719076039310 |
| Brands | Victron |
| Product Category | Power Inverter Chargers |
| Model | MultiPlus 12/1200/50 |
| Product Type | Inverter and charger in one package |
| Output Current Rating (Amps) | 50.0 Amps |
| Wattage | 1000W |
| Peak Power | 2400W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 1000W (continuous output power at 25°C) | 900W (continuous output power at 40°C) | 600W (continuous output power at 65°C) |
| Input Voltage | 9.5-17V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz |
| Inverter Output Continuous Watts | 1000W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 14.4V |
| Charge Voltage Float - Wet (25 degrees)** | 13.8V |
| Charge voltage 'storage' | 13.2 |
| Inverter Output Nominal Efficiency | 93% (maximum) |
| No load power consumption | 10W | 2W in search mode |
| Product Dimensions (mm) LxWxH | 250mm x 100mm x 406mm |
| Net Weight (kg) | 8.2 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
