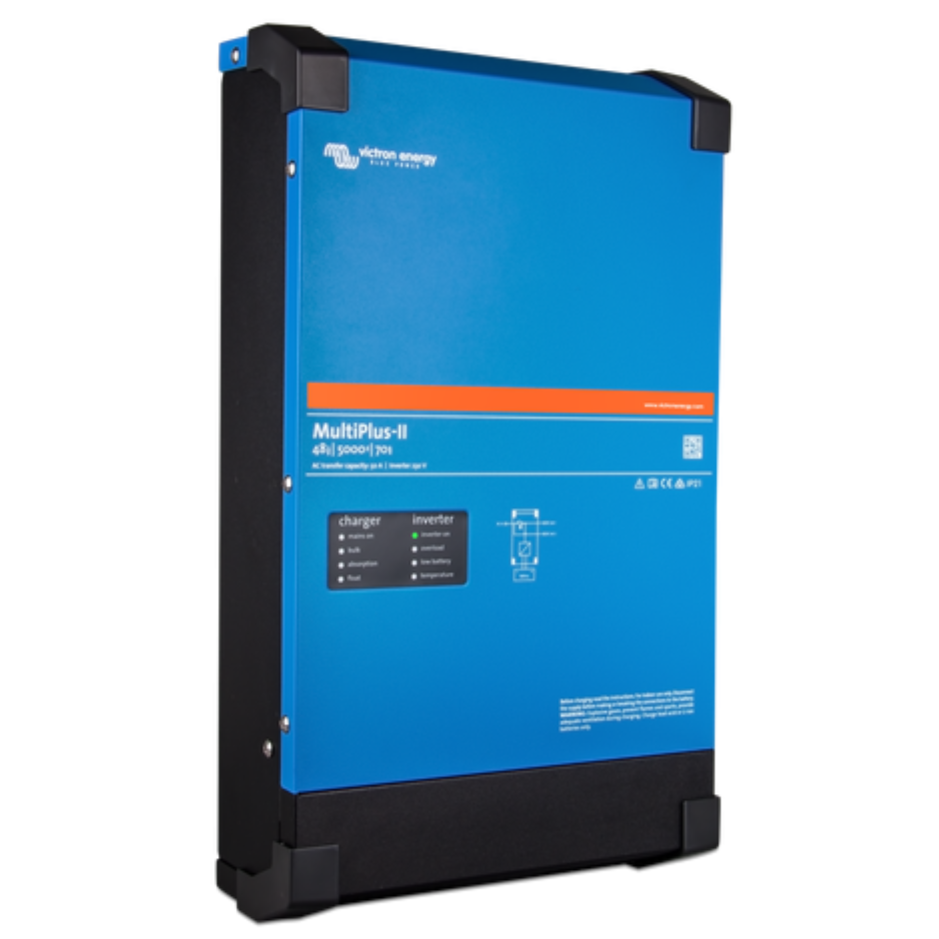

Victron MultiPlus-II Inverter Charger 48/5000/70-50 PMP482505010


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$2,530.00

Description

Victron Multiplus-II Inverter Charger 48V / 5000VA / 70A Battery Charger with 50A AC Transfer Switch, 5 Year Warranty. The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

FEATURES

PowerAssist:

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads.

Remote Monitoring and Control:

Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems.

A MultiPlus, plus ESS (Energy Storage System) functionality:

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external currentsensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A.

PowerControl and PowerAssist - Boosting the capacity of the grid or a generator:

A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension.

Solar energy: AC power available even during a grid failure:

The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.

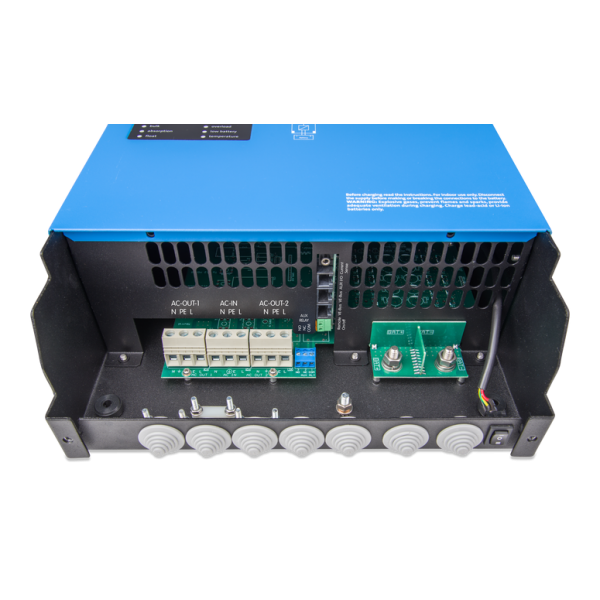

Two AC Outputs:

The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected.

Virtually unlimited power thanks to parallel and three phase operation:

Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity.

On-site system configuring, monitoring and control:

Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed).

Remote configuring and monitoring:

Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

SPECIFICATIONS

Product Name Victron MultiPlus-II Inverter Charger 48/5000/70-50 PMP482505010
SKU PMP482505010
GTIN (Global Trade Item Number) 8719076047599
Brands Victron
Product Category Power Inverter Chargers
Model MultiPlus 48/5000/70
Product Type Wattage
Output Current Rating (Amps) 70.0 Amps
Wattage 4000W
Peak Power 9000W
Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%
Output Power 4000W (continuous output power at 25­­°C) | 3700W (continuous output power at 40­­°C) | 3000W (continuous output power at 65­­°C)
Input Voltage 38-66V
Operating Temperature Range -40 to +65°C
AC Input 187-265VAC | 45-65Hz
Inverter Output Continuous Watts 4000W (continuous output power at 25­­°C)
Charge voltage 'absorption' 57.6V
Charge Voltage Float - Wet (25 degrees)** 55.2V
Charge voltage 'storage' 52.8V
Inverter Output Nominal Efficiency 96% (maximum)
No load power consumption 18W | 2W in search mode
Product Dimensions (mm) LxWxH 320 x 141 x 560
Net Weight (kg) 29.0 Kg

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
