Description

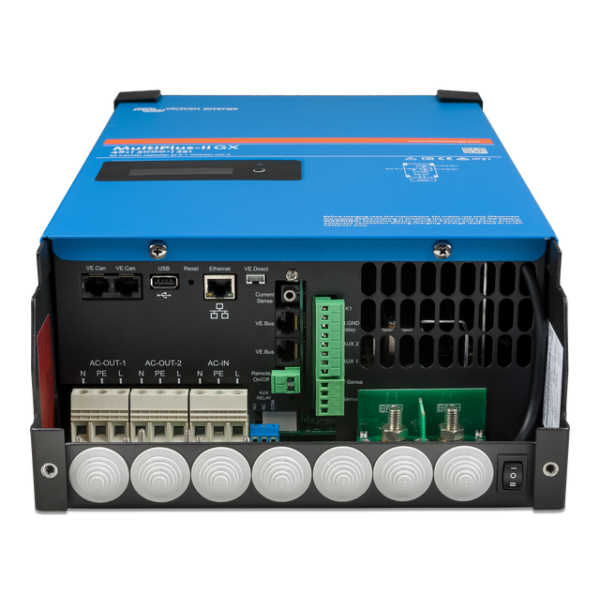

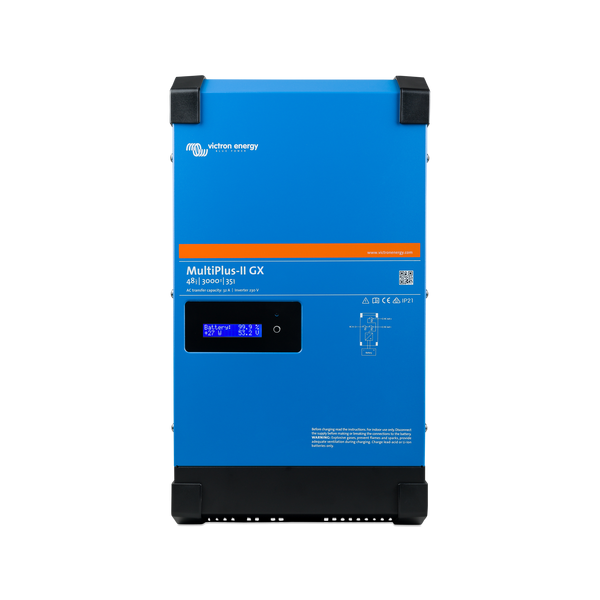

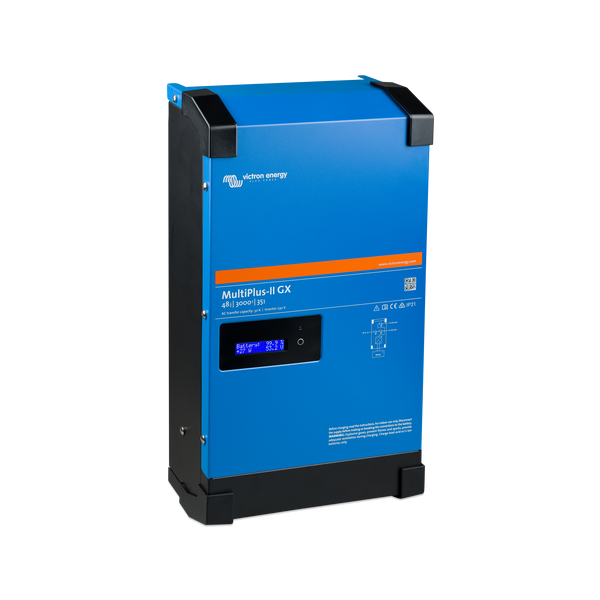

Victron MultiPlis-II Inverter Charger 48V / 3000VA / 35A, Battery Charger with 32A AC Transfer Switch GX, 5 Year Warranty.
FEATURES
Inverter/charger with GX inside:
PowerAssist A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
A MultiPlus-II with LCD and GX functionality:
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.
Display and Wi-Fi:
The display reads battery, inverter, and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
GX device:
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
- A USB port.
- An Ethernet port.
- A VE.Direct port.
SPECIFICATIONS
| Product Name | Victron Multiplus-II Inverter Charger 48/3000/35-32 230V GX PMP482306000 |
| SKU | PMP482306000 |
| GTIN (Global Trade Item Number) | 8719076046448 |
| Brands | Victron |
| Product Category | Power Inverter Chargers |
| Model | MultiPlus 48/3000/35 |
| Product Type | Inverter and charger in one package |
| Output Current Rating (Amps) | 35.0 Amps |
| Wattage | 2400W |
| Peak Power | 5500W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 65°C) |
| Input Voltage | 38-66V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz |
| Inverter Output Continuous Watts | 2400W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 57.6V |
| Charge Voltage Float - Wet (25 degrees)** | 55.2V |
| Charge voltage 'storage' | 52.8V |
| Inverter Output Nominal Efficiency | 96% (maximum) |
| No load power consumption | 11W | 2W in search mode |
| Product Dimensions (mm) LxWxH | 147 x275 x 506 |
| Net Weight (kg) | 19.0 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
