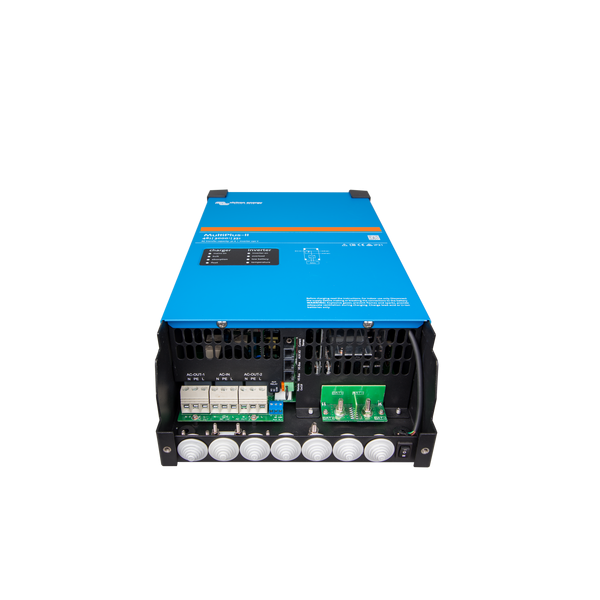

Victron Multiplus-II Inverter Charger 24/3000/70-32 230V PMP242305010

Warranty Option: Standard 5 Years Warranty
Sale price$2,285.00



The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.

Uninterrupted AC power (UPS function):
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control:
Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto-starting a back generator and more...


Product Name Victron Multiplus-II Inverter Charger 24/3000/70-32 230V PMP242305010
SKU PMP242305010
GTIN (Global Trade Item Number) 8719076048084
Brands Victron
Product Category Power Inverter Chargers
Model MultiPlus 24/3000/70-32
Product Type Inverter and charger in one package
Output Current Rating (Amps) 70.0 Amps
Wattage 2400W
Peak Power 5500W
Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%
Output Power 2400W (continuous output power at 25­­°C) | 2200W (continuous output power at 40­­°C) | 1700W (continuous output power at 65­­°C)
Input Voltage 19 - 33V
Operating Temperature Range -40 to +65°C (fan assisted cooling)
AC Input
Inverter Output Continuous Watts
Inverter Output Continuous Watts 2400W (continuous output power at 25­­°C)
Charge voltage 'absorption' 28.8V
Charge Voltage Float - Wet (25 degrees)** 27.6V
Charge voltage 'storage' 26.4V
Inverter Output Nominal Efficiency 94% (maximum)
No load power consumption 13W | 3W in search mode
Product Dimensions (mm) LxWxH 147 x 275 x 506
Net Weight (kg) 18.0 Kg


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
