Description

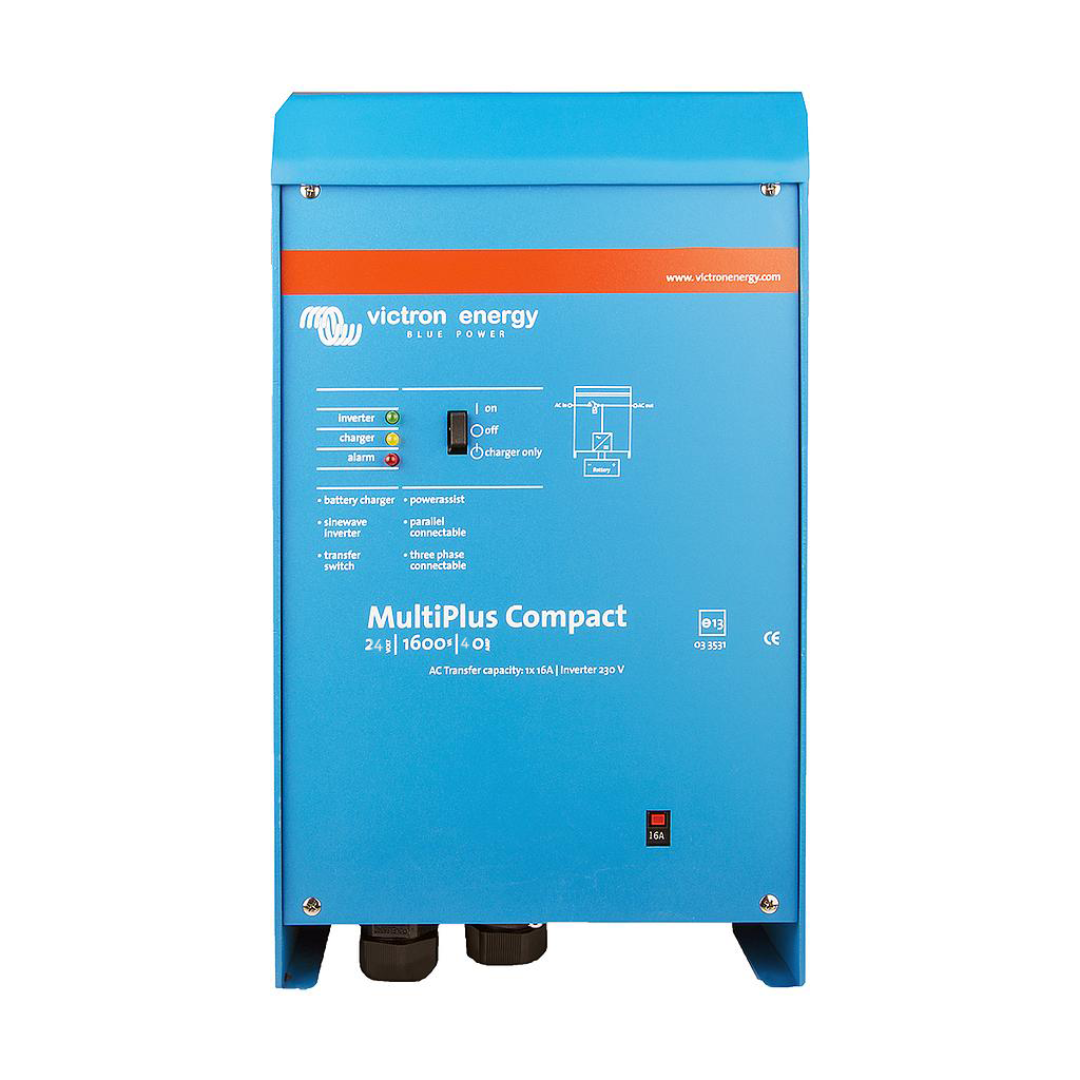

Victron Multiplus Compact Inverter Charger 24/1600/40-16 with 16A AC Transfer Switch, 5 Year Warranty. The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
WARRANTY
FEATURES
Unique PowerAssist Feature:
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC Power (UPS Function):
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads.
Virtually unlimited power thanks to parallel operation:
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.
Remote Monitoring and Control:
Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems.
Two AC Outputs
The main output has no break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected.
Virtually unlimited power thanks to parallel operation:
Up to 6 Multis can operate in parallel to achieve higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 Amps charging capacity.
Three phase capability:
In addition to parallel connection, three units of the same model can be configured for three phase output.
PowerControl - Dealing with limited generator, shore side or grid power:
The MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel a maximum generator or shore current can be set.
PowerAssist - Boosting the capacity of shore or generator power:
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source.
Solar energy: AC power available even during a grid failure:
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.
System configuring:
In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
On-site Monitoring and control:
Several options are available: Battery Monitor, Multi Control Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
Remote Monitoring and control:
Victron Ethernet Remote, Venus GX and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
Remote configuring:
When connected to the Ethernet, systems with a Color Control panel can be accessed remotely and settings can
be changed.
SPECIFICATIONS
| Product Name |
Victron Multiplus Compact Inverter Charger 24/1600/40-16 CMP241620000 |
| SKU | CMP241620000 |
| GTIN (Global Trade Item Number) | 8719076022039 |
| Brands | Victron |
| Product Category | Power Inverter Chargers |
| Model | MultiPlus 12/1600/70 |
| Product Type | Inverter and charger in one package |
| Output Current Rating (Amps) | 40.0 Amps |
| Wattage | 1300W |
| Peak Power | 3000W |
| Output Voltage and Frequency | 230 Vac ± 2% / 50 Hz ± 0.1% |
| Output Power | 1300W (continuous output power at 25°C) | 1200W (continuous output power at 40°C) | 800W (continuous output power at 65°C) |
| Input Voltage | 19-33V |
| Operating Temperature Range | -40 to +65°C |
| AC Input | 187-265VAC | 45-65Hz | 1 |
| Inverter Output Continuous Watts | 1300W (continuous output power at 25°C) |
| Charge voltage 'absorption' | 28.8V |
| Charge Voltage Float - Wet (25 degrees)** | 27.6 |
| Charge voltage 'storage' | 26.4V |
| Inverter Output Nominal Efficiency | 94% (maximum) |
| No load power consumption | 10W | 3W in search mode |
| Product Dimensions (mm) LxWxH | 214 x 110 x 375 |
| Net Weight (kg) | 10.0 Kg |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
