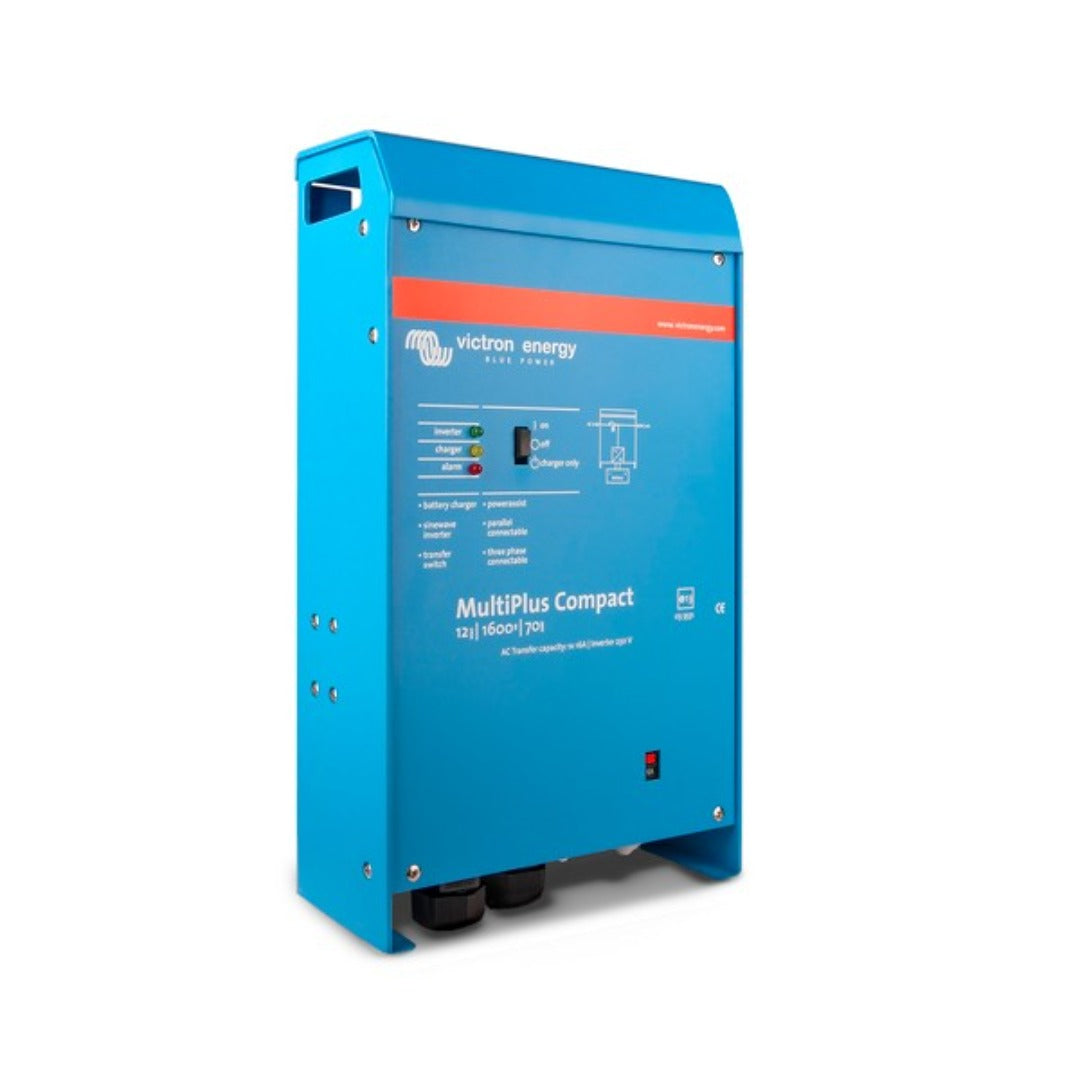

Victron MultiPlus Compact Inverter Charger 12/1600/70-16 230V VE.Bus CMP121620000

Warranty Option: Standard 5 Years Warranty
Sale price$1,560.00


Multi-functional, with intelligent power management

The MultiPlus is a powerful true sine wave inverter , a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.


Two AC Outputs

The main output has no-break functionality.  The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when short/generator power is disconnected.  This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.  The second output is live only when AC is available on one of the inputs of the MultiPlus.  Loads that should not discharge the battery, like a water heater for example, can be connected to this output (second output available on models rated at 3kVA and more).

Virtually unlimited power thanks to parallel operation

Up to 6 Multis can operate in parallel to achieve higher power output.  Six 24/5000/120 units, for example, will provided 25kVA / 30 KVA output power with 720 Amps charging capacity.

Three phase capability

In addition to parallel connection, three units of the same model can be configured for three-phase output.  But that's not all: up to 6 sets of three units can be parallel connected for a huge 75 kVA / 90 kVA inverter and more than 2000 Amps charging capacity.


Product Name
Victron MultiPlus Compact Inverter Charger 12 1600VA 12V 70A Battery charger
Cont. AC power at 25 C (VA) 1600
Cont power at 25C/40 C (W) 1300
Peak power 3000
Output AC voltage/frequency 230VAC +/- 2% 50Hz +/- 0.1%
Input voltage range (V DC) 9.5 – 17 19 – 33 38 – 66
Max. efficiency (%) 93/94
Zero-load power (W) 08-Oct
Protection a-g
Operating temperature range -20 C to 50 C (fan assisted cooling)
Humidity (non condensing) max 95%


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.


The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
