Victron Inverter RS 48/6000 230V Smart Solar with 450V/4000W PV Input PIN482601000

Warranty Option: Standard 5 Years Warranty
Sale price$3,520.00


The Victron Inverter RS 48/6000 (6KVA | 4.8KW) 230VAC, Inbuilt 80-450VDC 4kW MPPT Smart Solar Charger Off-Grid Solar Inverter with High Frequency technology and Inbuilt Display and Bluetooth connectivity to the the VictronConnect App.

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger.

The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect App. In addition to this, the inverter has a VE.Direct and a VE.Can Port, for connection to a GX device for system monitoring.
Off-Grid solar inverter
The Inverter RS Smart Solar 48/6000 is a 48V 6kVA Inverter with 450VDC 4kWp PV input. It is used in off-grid solar applications where AC power is required.


Combination of an inverter, bi-directional DC-DC converter and MPPT
The inverter produces a perfect sine wave, able to supply high powered appliances. It is supplied by a bi-directional DC-DC converter, that can either charge the battery when excess solar power is available or convert from the battery when it is needed.
Wide MPPT voltage range
80 – 450VDC, with a 120VDC PV startup voltage.

Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device.

Support for AC and DC coupled PV battery charging
The Inverter RS supports the connection of AC coupled PV inverters on the AC output up to 6kVA, and a total battery charging capacity of up to 100A. Frequency Shift Power Control is enabled out of the box, without the need for configuration, reducing installation time.

VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates.

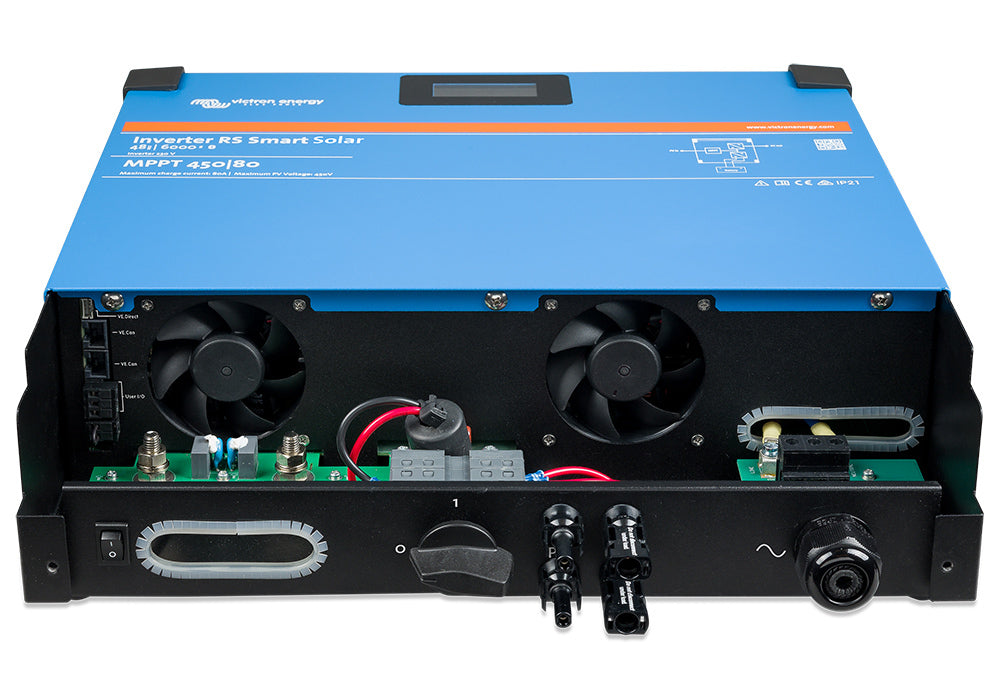

Built in PV isolator
Both parallel PV strings connected to the MC4 plugs can be safely isolated with the large built-in switch on the bottom of the unit.

I/O Connections
I/O Connections Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron mini BMS.


Inverter RS Smart Solar 48/6000

DC Input voltage range Output 38 – 64 V (6)
Continuous output power at 25°C Output voltage: 230 VAC ± 2%
  Frequency: 50 Hz ± 0.1% (1)
  Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
Continuous output power at 40°C 4500W
Continuous output power at 65°C 3000W
Peak power 9 kW for 3 seconds
Short-circuit output current 50A
Maximum efficiency 96.5% at 1 kW load
94% at 5 kW load
Zero load power 20W
Maximum DC voltage 450V
Nominal DC voltage 300V
Start-up voltage 120V
MPPT operating voltage range 80 – 450V (5)
DC input current limit Maximum DC input current 18A (4)
Maximum PV input power 4000W
Maximum DC charging power 4000W
Earth leakage trip level 30 mA
Charge voltage 'absorption' (V DC) 57.6V
Charge voltage 'float' (V DC) 55.2V
Maximum charge current 100A
Battery temperature sensor Yes
Parallel and 3-phase operation No
Programmable relay (3) Yes
Protection (2) a - f
Data Communications Ports VE.Direct port and VE.Can port
General purpose analogue/digital Yes, 2x
in port
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Material & Colour steel, blue RAL 5012
Protection category IP22
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Weight 11 kg
Dimensions (hxwxd) 425 x 440 x 125 mm
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
