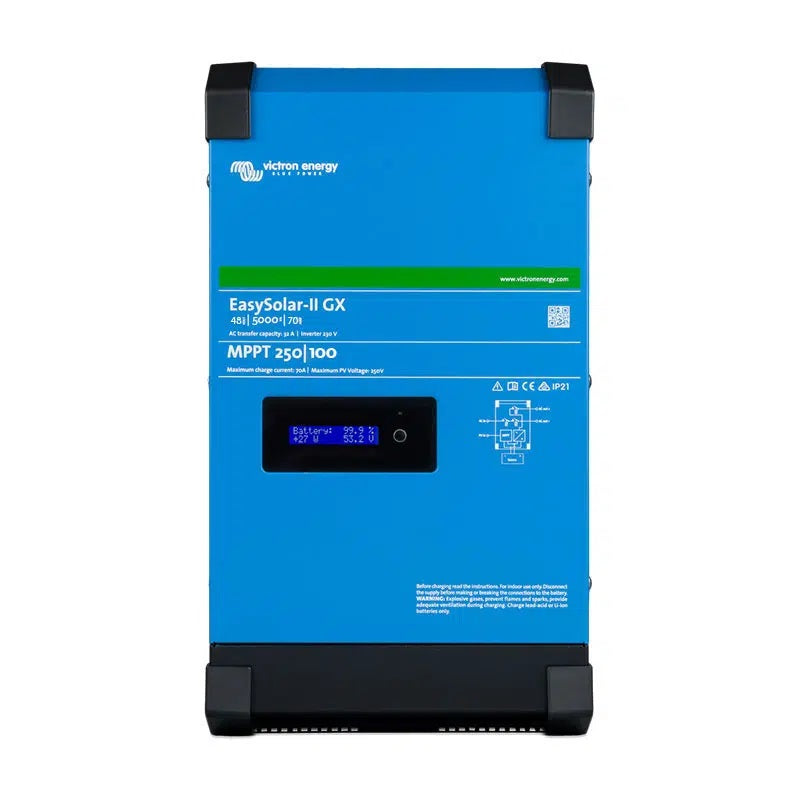

Victron Energy EasySolar-II 48V 5000VA PSW Inverter Charger 70/50 MPPT 250/100 GX (PMP482507010)

Warranty Option: Standard 5 Years Warranty
Sale price$5,200.00



The all-in-one solar power solution:

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger

• A SmartSolar MPPT -Tr solar charge controller

• A GX device with a 2 x 16 character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and wifi:

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.

Solar charge controller:

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device:

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

• A USB port

• A Ethernet port

• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.


EasySolar-II GX EasySolar-II 48/5000/70-50 MPPT 250/100 GX
PowerControl & PowerAssist Yes
Transfer switch 50A
Maximum AC input current 50A
Auxiliary output Yes (50A)
Input voltage range 38 – 66V
Output Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (3) 5000VA / 4000W
Cont. output power at 40°C / 65°C 3700W / 3000W
Maximum apparent feed-in power 4400W / 5000VA
Peak power 9000W
Maximum efficiency 96%
Zero load power 18W
Zero load power in AES mode 12 W
Zero load power in Search mode 2W
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 57,6V
Charge voltage 'float' 55,2V
Storage mode 52,8V
Maximum battery charge current (4) 70A
Battery temperature sensor Yes
Programmable relay (5) Yes
Protection (2) a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Model SmartSolar MPPT 250/100-Tr
Maximum output current 100A
Maximum PV power 5800W
Maximum PV open circuit voltage 250V
Maximum efficiency 99%
Self-consumption 20mA
Charge voltage 'absorption', default 57,6V
Charge voltage 'float', default setting 55,2V
Protection (2) a – e
Interfaces BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
Remote on-off Yes
Operating temp. range -20 to +45°C (fan assisted cooling) Max. altitude 2000m
Humidity (non-condensing): max 95%
Material & Colour aluminum (blue RAL 5012)
Protection category IP21
Battery-connection M8 bolts
PV connection M6 bolts
230 V AC-connection Screw terminals 16 mm2 (6 AWG)
Weight 38.6kg
Dimensions (hxwxd) 604 x 323 x 253 mm



Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.


The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
