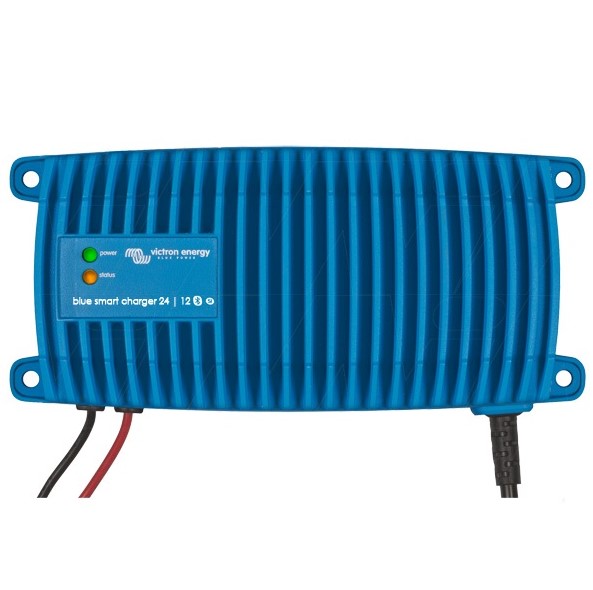

Victron Blue Smart IP67 Charger 24/12(1) 230V AU/NZ (BPC241247016)


Warranty Option: Standard 5 Years Warranty
Price:
Sale price$314.00

Description

FEATURES

Bluetooth Smart enabled

The Blue Smart IP67 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available. With Bluetooth, the functionality of the IP67 charger is enhanced and is similar to that of our IP22 and IP65 chargers

Completely encapsulated: waterproof, shockproof and ignition protected

Water, oil or dirt will not damage the Blue Smart IP67 Charger. The casing is made of cast aluminum and the electronics are moulded in resin.

The highest efficiency ever!

Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat. And once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard

Adaptive 5-stage charge algorithm: bulk – absorption – recondition – float – storage

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The ‘adaptive’ feature will automatically optimize the charging process relative to the way the battery is being used.

Storage Mode: Less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Also charges Li-ion (LiFePO₄) batteries

LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm

Protected against overheating

Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60°C, but the charger will not fail.

Two LEDs for status indication

Yellow LED: bulk charge (blinking fast), absorption (blinking slow), float (solid), storage (off) Green LED: power on.

SPECIFICATIONS

Blue Smart IP67 Charger 24/12
Input voltage range and frequency 180-265 VAC    45-65 Hz
Efficiency 96%
No load power consumption 0.5W
Charge voltage 'absorption' Normal: 28,8V High: 29,4V Li-ion: 28,4V
Charge voltage 'float' Normal: 27,6V High: 27,6V Li-ion: 27,0V
Charge voltage ‘storage’ Normal: 26,4V High: 26,4V Li-ion: 27,0V
Charge current, normal mode 12A
Charge current, LOW 4A
Charge algorithm 5-stage adaptive
Can be used as power supply yes
Protection Battery reversepolarity(fuse)    Outputshortcircuit             Overtemperature
Operating temp. range -20 to +60°C (full rated output upto 40°C)                                     Derate 3% per °C above40°C
Humidity Up to 100%
Start interrupt option (Si) Short circuit proof, current limit 0,5 A
Output voltage: max one volt lower than main output
ENCLOSURE
Material & Colour aluminium (blue RAL 5012)
Battery-connection Black and red cable of 1,5 meter
230 V AC-connection Cable of 1,5 meter with CEE 7/7 plug
Protection category IP67
Weight (kg) 2.4
Dimensions (h x w x d in mm) 99 x 219 x 65
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission Immunity EN 55014-1, EN 61000-6-3, EN 61000-3-2
Automotive Directive EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

WARRANTY

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.

NOTE:

The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
