Description
FEATURES

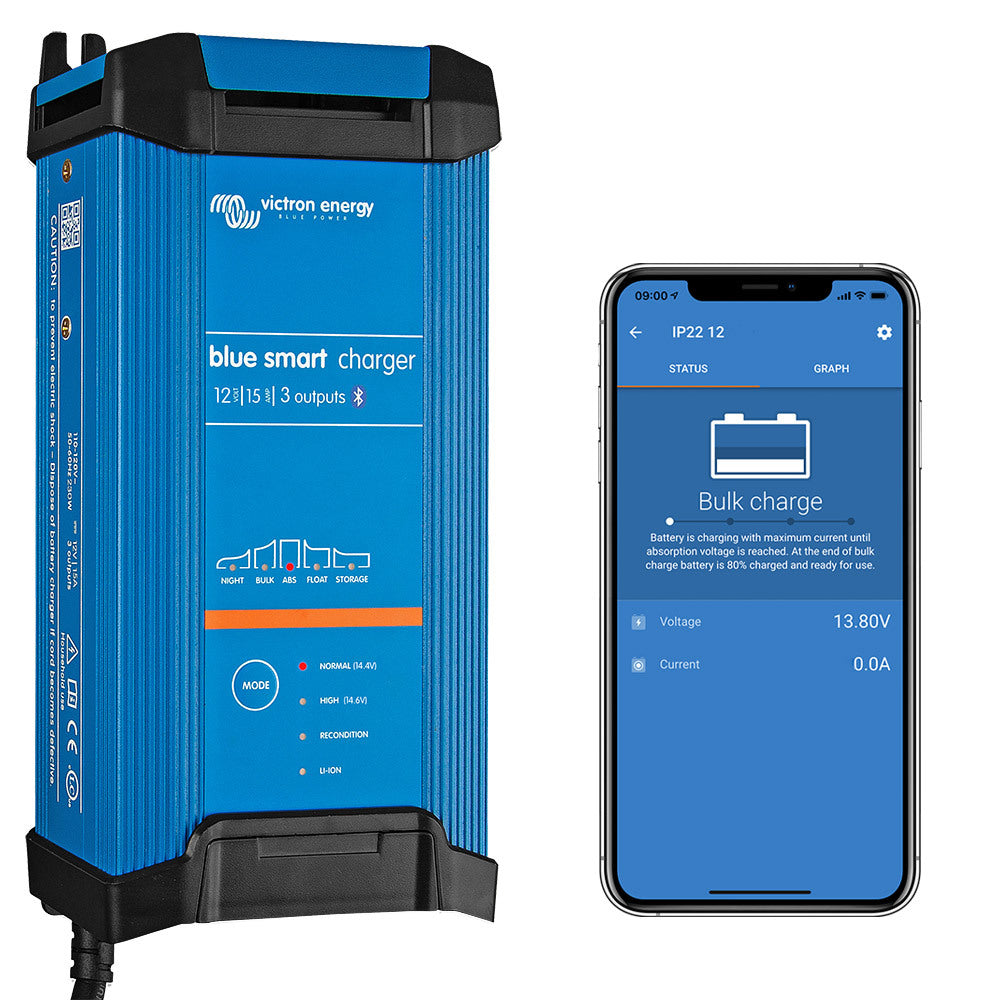

Victron Blue Smart Bluetooth 12-volt 15-amp three output battery charger with IP22 rating suitable for AGM, Gel and Lithium Ion battery charging (AU/NZ model).
Bluetooth Enabled - The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.
High Efficiency - With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard
Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage. The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
Storage Mode - less maintenance and aging when the battery is not in use. The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Li-ion (LiFePO₄) batteries - LiFePO₄ batteries are charged with a simple bulk – absorption – float algorithm.
NIGHT and LOW setting - When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating - Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication - Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
Please Note: As these are typically used for custom installations, the IP22 Range does not include any DC cable or connectors.
SPECIFICATIONS
| Product Name | Victron Blue Smart IP22 Charger 12/15 (3) 240V, 5 Year Warranty |
| SKU | BPC121544012 |
| GTIN (Global Trade Item Number) | 8719076055297 |
| Brands | Victron |
| Product Category | Battery Chargers |
| Output Current Rating (Amps) | 15.0 Amps |
| Efficiency | 93% |
| Operating Temperature Range | -40 to +60 °C (full rated output up to 40 °C) |
| Humidity | Max 98% |
| Output | 1 Output |
| Output System Voltage | 12V |
| Charge current | 15A |
| Dimensions | 235 x 108 x65 mm (H x W x D) |
| Net Weight (kg) | 1.3 Kg |
| Charge voltage 'absorption' | Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V |
| Charge Voltage Float - Wet (25 degrees)** | Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V |
| Charge voltage 'storage' | Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V |
| Protection | Battery reverse polarity (fuse) | Output short circuit | Over temperature |
| Charge current in low current mode | 15A |
| No load power consumption | 0.5W |
| Protection category | IP22 |

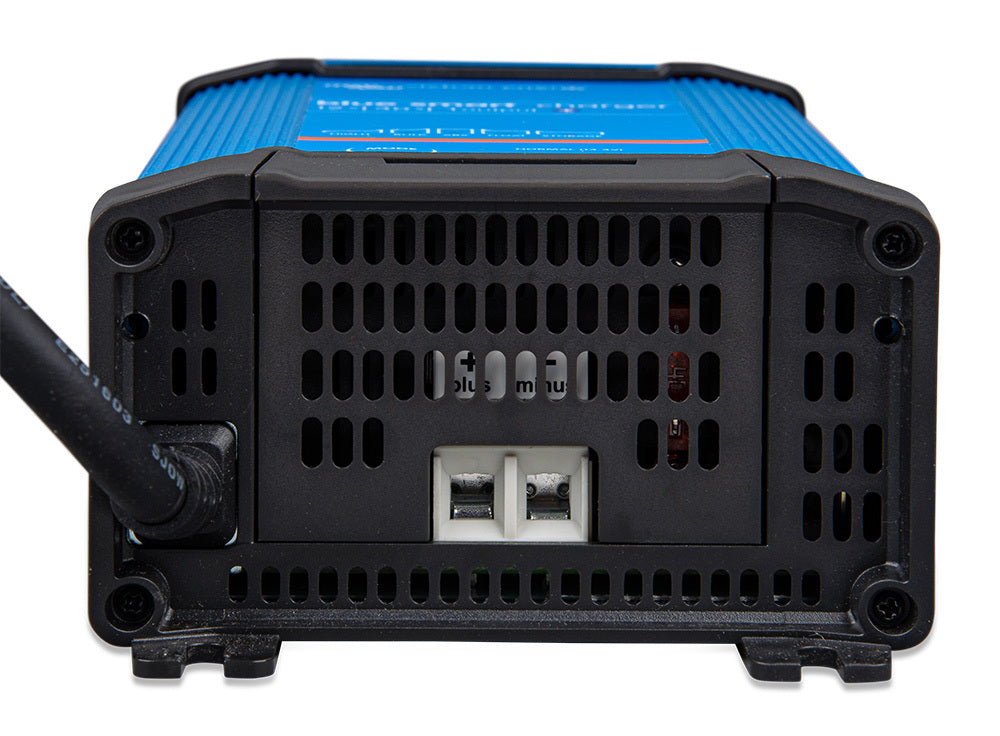

| Battery-connection | Screw terminals 16 mm² / AWG6 |
| Input Voltage | 180 - 265 VAC |
| Manufacturers Warranty | 5 Years |
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
