Description

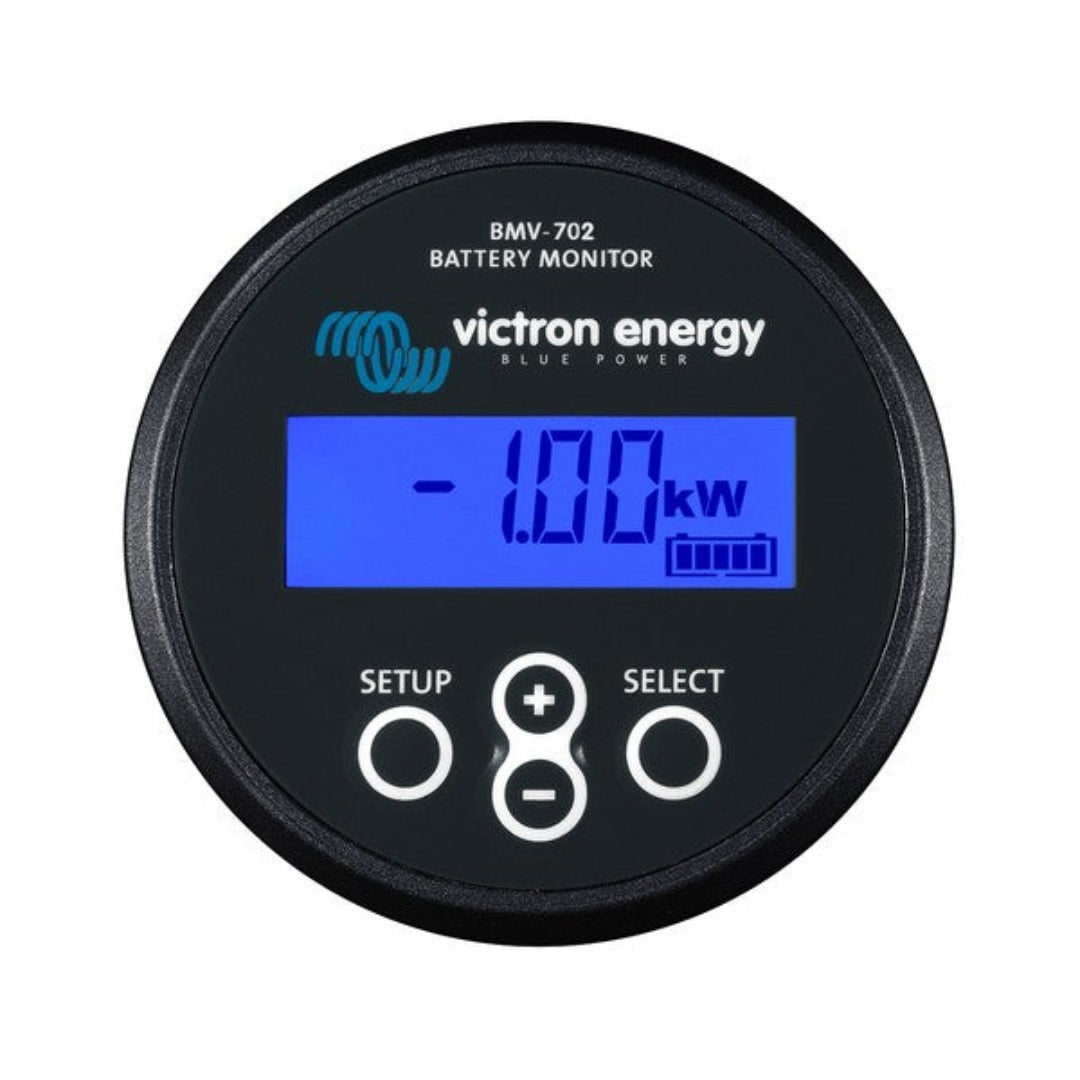

Victron Battery Monitor BMV-702 BLACK, 5 year warranty. The BMV-702 (Black) is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery.
Battery ‘fuel gauge’, time-to-go indicator, and much more:
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.
The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), battery temperature or midpoint voltage.
FEATURES
Bluetooth Smart:
Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Easy to install:
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Easy to program (with your smartphone!):
A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
Midpoint voltage monitoring (BMV-702 only):
This feature, which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.
A battery bank consists of a string of series connected cells.
Standard features:
Battery voltage, current, power, ampere-hours consumed and state of charge
Remaining time at the current rate of discharge
Programmable visual and audible alarm
Programmable relay, to turn off non critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 6,5 – 95V
High current measurement resolution: 10 mA (0,01A)
Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
BMV-702 additional features:
Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.
Other battery monitoring options:
VE.Net Battery Controller
Lynx Shunt VE.Net
Lynx Shunt VE.Can
More about midpoint voltage:
One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage.
SPECIFICATIONS
| Product Name |
Victron Battery Monitor BMV-702 Black BAM010702200R |
| SKU | BAM010702200R |
| GTIN (Global Trade Item Number) | 8719076020127 |
| Brands | Victron |
| Product Category | Batteries Other |
| Supply Voltage Range | 6,5 - 95 VDC |
| Current Draw | < 4mA |
| Relay | 60V / 1A normally open (function can be inverted) |
| Operating Range (temp) | -40 +50°C (-40 - 120°F) |
| Battery Capacity | 1 - 9999 Ah |
| Dimensions | Front: 63 mm diameter | Front bezel: 69 x 69 mm | Body diameter: 52 mm | Body depth: 31 mm |
| Temperature Range | -20 +50°C |
| Current | ± 0,01A |
| Voltage | ± 0,01V |
| Amps | ± 0,1 Ah (hours) |
| State of Charge (0-100%) | ± 0,1% |
| Time to go | ± 1 min |
| Accuracy of current measurement | ± 0,4% |
| Accuracy of voltage measurement | ± 0,3% |
| Input Voltage | 6,5 - 95 VDC |
| Installation | Flush mount |
| Safety | EN 60335-1 |
| Emission / Immunity | EN 55014-1 / EN 55014-2 |
| Battery Automotive | ECE R10-4 / EN 50498 |
| NOTE | Measure voltage of second battery, temp, or midpoint: Yes | VE.Direct Communication port: Yes |
| Included | Shunt (500A / 50mV), Cable (10 m, 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection) |
| Manufacturers Warranty | 5 Years |
WARRANTY
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2-year limited warranty Li-ion batteries: 3-year limited warranty All other products: 5-year limited warranty.
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
