Description

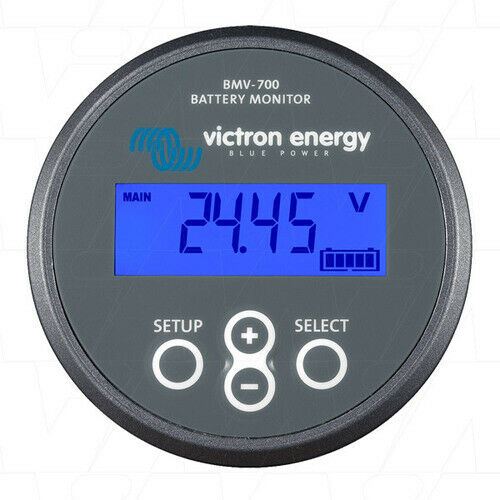

Victron Battery Monitor BMV-700, 5 year warranty. The BMV-700 is Victron's newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
Battery ‘fuel gauge’, time-to-go indicator, and much more:
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature, and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.
FEATURES
Bluetooth Smart:
Use the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Easy to install:
All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
Easy to program (with your smartphone!):
A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
Standard features:
Battery voltage, current, power, ampere-hours consumed and state of charge
Remaining time at the current rate of discharge
Programmable visual and audible alarm
Programmable relay, to turn off non critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 6,5 – 95V
High current measurement resolution: 10 mA (0,01A)
Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
BMV-702 additional features:
Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.
BMV-700HS: 60 to 385 VDC voltage range:
No additional parts needed. Note: suitable for systems with grounded minus only (battery monitor is not isolated from shunt).
Other battery monitoring options:
VE.Net Battery Controller
Lynx Shunt VE.Net
Lynx Shunt VE.Can
More about midpoint voltage:
One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information.
Victron recommend their Battery Balancer (BMS012201000) to maximize service life of series-connected batteries.
SPECIFICATIONS
Product Name: Victron Battery Monitor BMV-700, 5 Year Warranty
SKU BAM010700000R
GTIN (Global Trade Item Number) 8719076020073
Brands Victron
Product Category Batteries Other
Supply Voltage Range 6,5 - 95 VDC
Current Draw < 4mA
Relay 60V / 1A normally open (function can be inverted)
Operating Range (temp) -40 +50°C (-40 - 120°F)
Battery Capacity 1 - 9999 Ah
Dimensions Front: 63 mm diameter | Front bezel: 69 x 69 mm | Body diameter: 52 mm | Body depth: 31 mm
Temperature Range -20 +50°C
Current ± 0,01A
Voltage ± 0,01V
Amps ± 0,1 Ah (hours)
State of Charge (0-100%) ± 0,1%
Time to go ± 1 min
Accuracy of current measurement ± 0,4%
Accuracy of voltage measurement ± 0,3%
Input Voltage n.a.
Installation Flush mount
Safety EN 60335-1
Emission / Immunity EN 55014-1 / EN 55014-2
Battery Automotive ECE R10-4 / EN 50498
NOTE VE.Direct Communication port: Yes

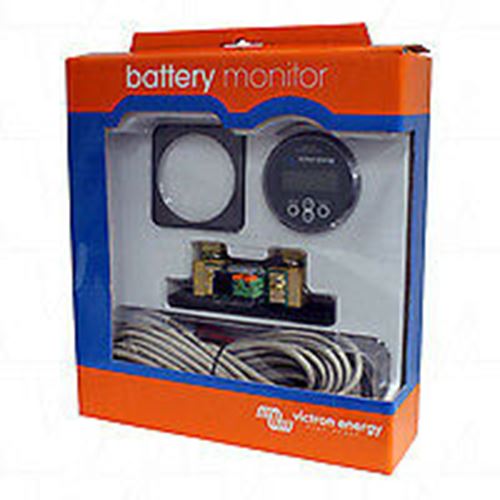

Included Shunt (500A / 50mV), Cable (10 m, 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection)
Manufacturers Warranty 5 Years
NOTE:
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
