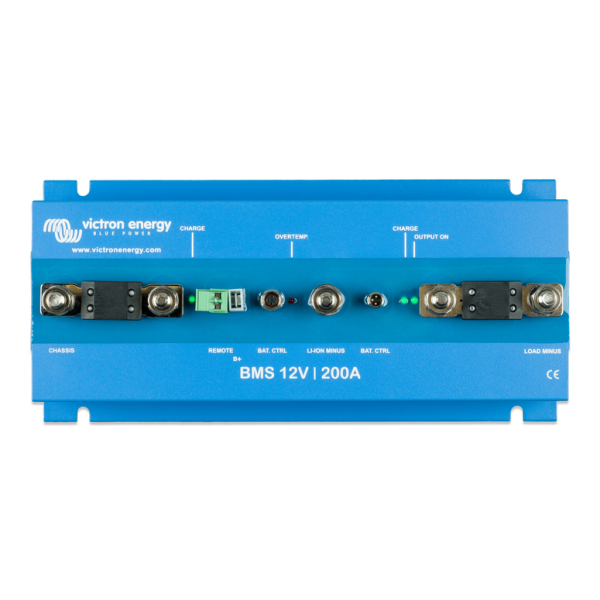

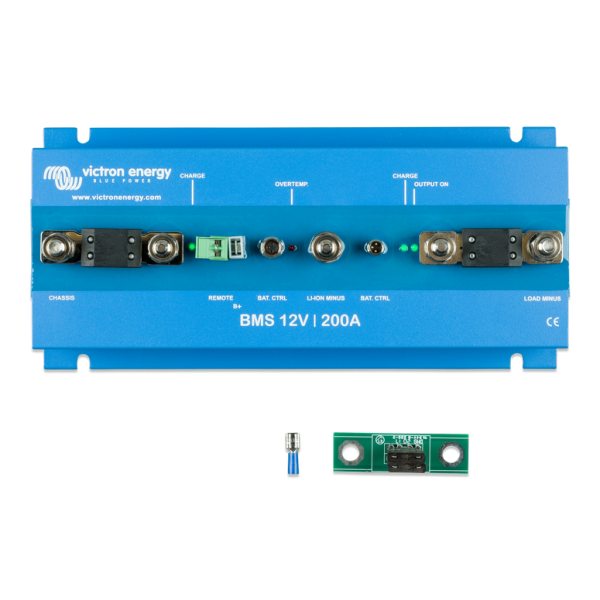

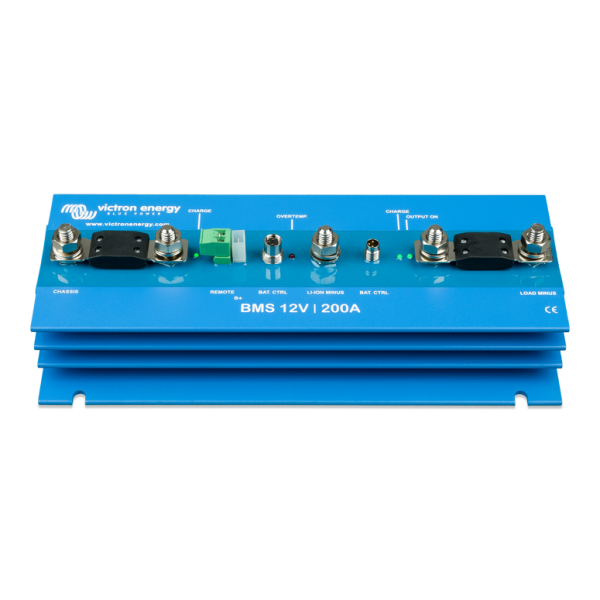

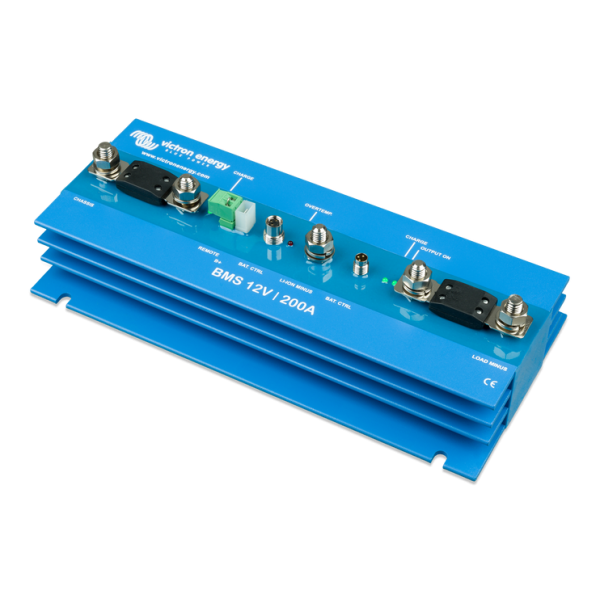

Victron Battery Management System BMS 12/200 BMS012201000

Warranty Option: Standard 5 Years Warranty
Sale price$375.00


Victron 12V/200A Battery Management System, 5-Year Warranty. The BMS 12/200 lets you safely connect any size 12V alternator (and start battery) to Victron LiFePO4 Smart Batteries. This all-in-one Battery Management System, Current Limiter, Battery Combiner, and Battery Protector is a robust and compact solution, specifically designed for 12V systems with 12V alternators, such as vehicles and boats.


The BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources, or DC loads in case of low battery voltage, high battery voltage, or over temperature.

The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries and the starter battery is protected from excessive discharge.

The dedicated load connection will disconnect loads and charge in case of low battery voltage, high battery voltage, or over temperature.

The BMS is also equipped with a remote on-off connector, to turn the BMS (and the system) off via a remote switch.


Product Name Victron 12V/200A Battery Management System, 5-Year Warranty
SKU BMS012201000
GTIN (Global Trade Item Number) 8719076021025
Brands Victron
Product Category Power Systems
Operating Temperature Range -40 to +60°C
Humidity 95% (Average) | 100% (Maximum)
Protection IP65
Maximum Charge Current 80A @ 40°C (Power Port AB) | 200A @ 40°C (Power Port LB)
Maximum Discharge Current 200A @ 40°C
Charge Cut-off Voltage 11V
Dimensions 65 x 120 x 260 (H x W x D)
Net Weight (kg) 1.8 Kg
Manufacturers Warranty 5 Years


Victron Energy warrants its products to be free from defects in workmanship and materials for a period of: Batteries: 2 year limited warranty Li-ion batteries: 3 year limited warranty All other products: 5 -year limited warranty.
The option of a 10-year limited warranty can only be applied during the actual purchase of the product.
