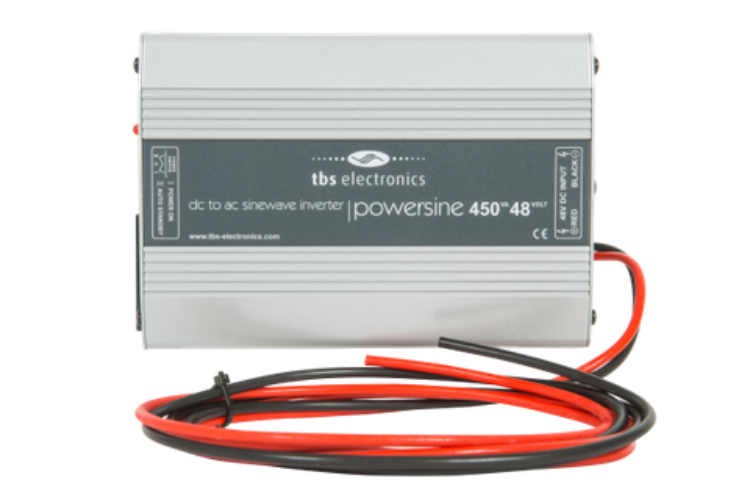

TBS 450W PSW Inverter 48 230 GPO A-450I-48

Sale price$635.00



The TBS inverter series features an advanced microprocessor control system that controls all the system workings. This control is done by fast and efficient software algorithms dedicated to protecting the inverter and your system, while the real power of the unit is delivered via the low loss toroidal transformer. This toroidal transformer is designed to generate surge loads well in excess of the rated power output for long periods of time. The transformer and microprocessor both work together to provide a reliable inverter output under all conditions (including harsh, vibration prone applications). You could call the TBS range of inverters Built like a Tank.

Besides the advanced inbuilt diagnosis system that monitors the inverter, there is also an efficient Power Save Mode (PSM) system that makes it possible to drastically reduce the inverters own power consumption when no AC load is present. This power level can be adjusted as required to suit the users low power threshold values, all that is required is to switch the on / off switch to the desired threshold point.

All TBS inverters are simple to use, simply connect to the battery bank and away you go. Although they are slightly heavier than microprocessor controlled power inverters, the long term benefits of using a toroidal transformer make the TBS a far better choice. Each TBS inverter features solid mounting points to make your installation easy.

  • Delivers Pure sine wave output
  • 200, 300, 600, 1600 & 2000watt @ 12volts
  • 200, 350, 800, 1800 & 2500watt @ 24volts
  • 450, 800 & 1800watt @ 48v
  • Low Frequency Toroidal transformer design for high power surges and design safety
  • Exceptional power output per size and weight
  • Easy to use power save mode for low stand by current
  • High quality, European designed power inverters packed with advanced components for long term reliability


Model 450Watt 48v 800Watt 48v 1800Watt 48v
Output Power (continuous) @25°C 300W 600W 1400W
Output Power P10 Mins 450W 800W 1800W
Surge Capacity (Peak) @25°C 800W 1250W 3000W
Output Voltage 230Vac ±2% (115Vac ±2% optional)
OutPut Frequency 50Hz ±0.05% (60Hz ±0.05% optional)
Output Waveform True sinewave (THD < 5% @ Pnom)
Peak Efficiency 95% 94%
No Load Current Draw < 0.135amp < 0.170amp
Input Voltage Range 41-60 Vdc
Operating Temperature Range -20 to + 50° C
Display LED
Battery Connection 2 wire 1.5mtr / 4mm² 2 wire 1.5mtr / 10mm² 2 wire 1.5mtr / 25mm²
Mounting Bracket Built In
Internal DC Fuse Yes – Not User Replaceable
Dimensions (H x W x L) 98 x 130 x 184mm (w/o mnt brkts) 113 x 163 x 228mm (w/o mnt brkts) 114 x 210 x 351mm (w/o mnt brkts)
IP Rating IP21
Weight 3.5kg 6.2kg 10.5kg
Warranty 2 Years
