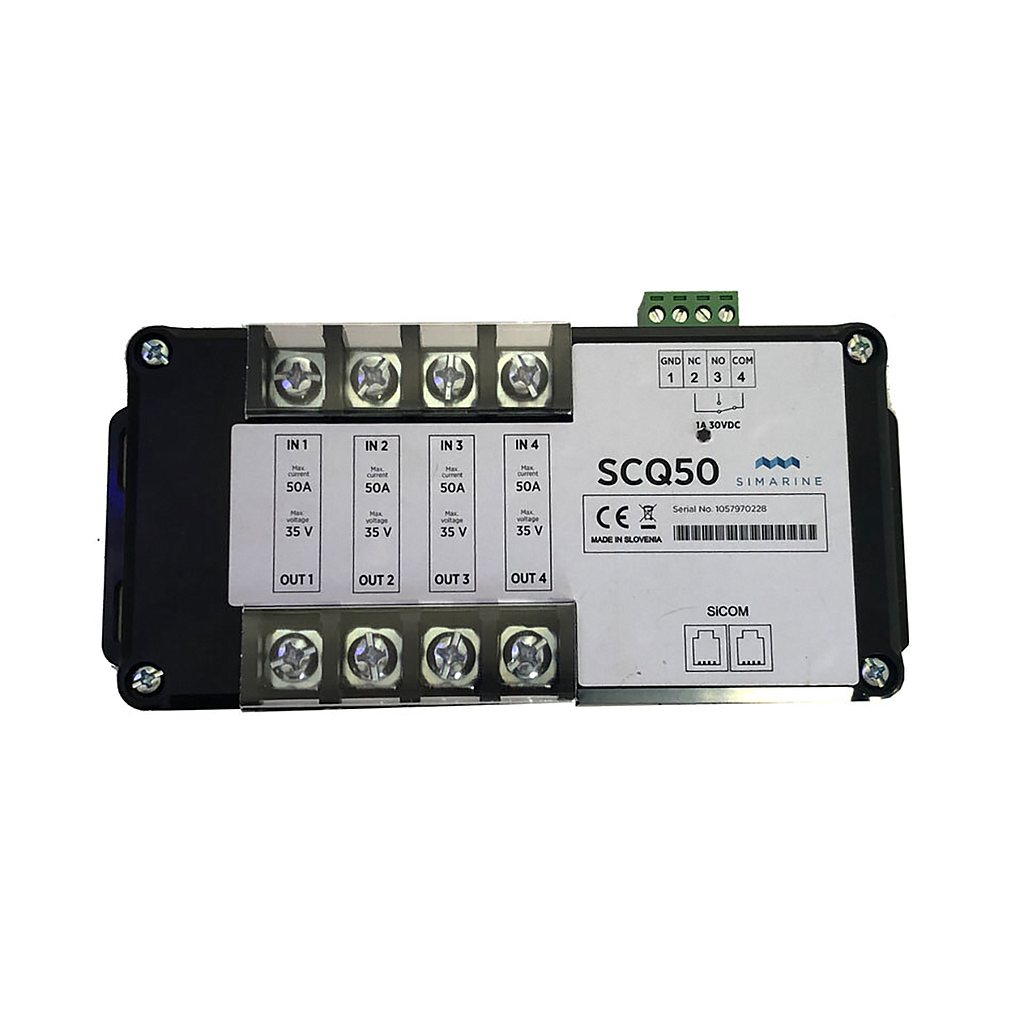

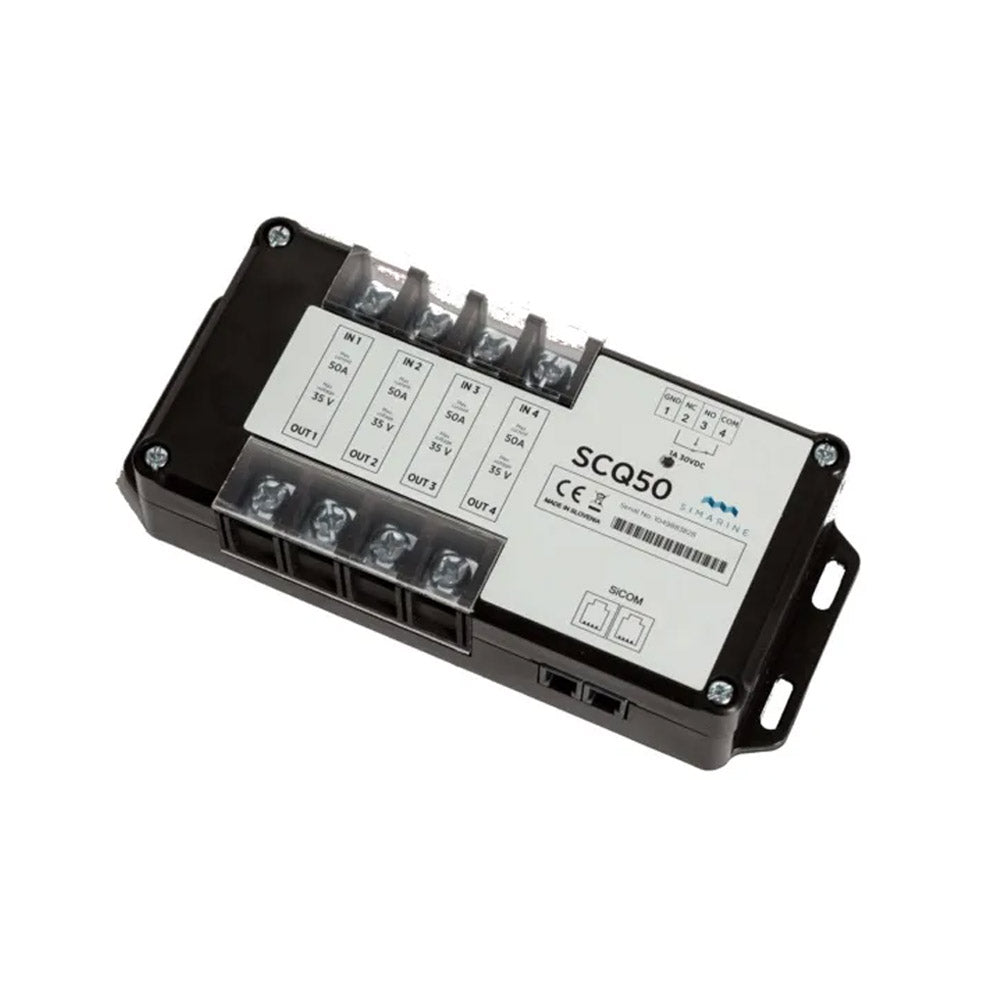

Active shunt for PICO battery monitor with 4x current sensors up to 50A each. For 12V and 24V systems.
Highly versatile digital shunt module for monitoring consumer devices and/or generators up to 50A current per channel. The channels can be combined to reach higher amperage if necessary. Up to four SCQ50/SCQ50T modules can be connected to a PICO system.
FEATURES
- Four inputs for monitoring individual consumer and generator continuous currents up to 50A (70A peak) per input
- Can handle 12V or 24V systems, (same voltage used per device)
- Innovative protected architecture allows wiring in either negative (low) or positive (high) side. (same system used per device)
- Very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power.
- Current channels can be combined for higher amperage, meaning 2 x 50A channels can be used for measuring up to 100A.
- Up to five modules can be connected simultaneously to monitor up to 20 current channels with PICO Battery Monitor.
- Assignable NO or NC output relay.
SPECIFICATIONS
| Operating | |
| Voltage Range | 6-35 V |
| Temperature Range | -20 to +70°C |
| Power Consumption at 12V | |
| Operating | 3,5 mA |
| Current Measuring Channels | 4 |
| Current Measuring Range | |
| Per Channel | 0,01 – 50A |
| Accuracy | ±0,6% |
| Resolution | 0,01A |
| Sampling Rate | 100ms |
| Maximal Current | |
| Continuous | 50A |
| Peak Current (<1 min) | 70A |
| Peak Current (<5 sec) | 100A |
| Voltage Drop at 25 A | 35 mV |
| Maximal Voltage on Connections | 35 V |
