Description
Active shunt for PICO battery monitor with 4x current sensors up to 25A each, combined with 3x voltage and 4x resistance inputs. For 12V and 24V system.
Looking for a highly versatile digital shunt module for monitoring smaller consumers like refrigerator and/or generators like solar, wind, hydro or shore power?

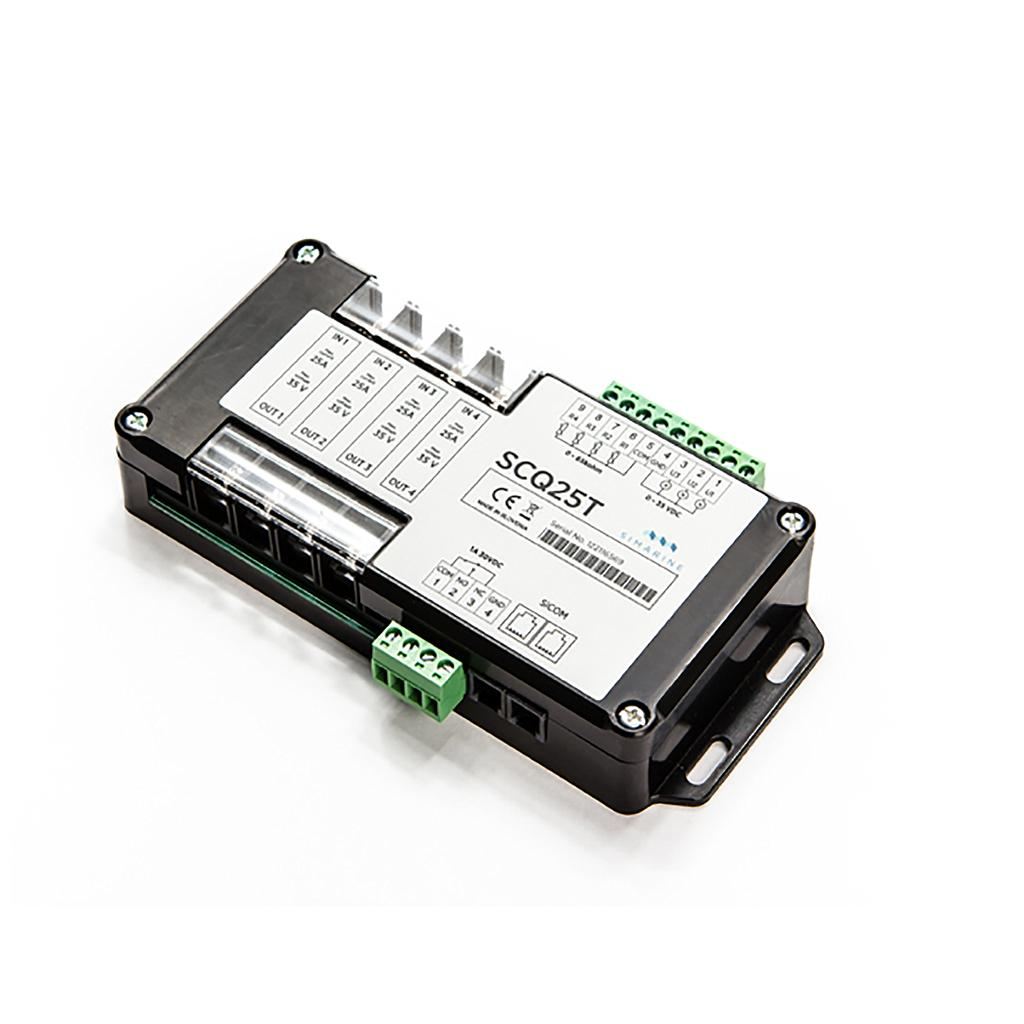

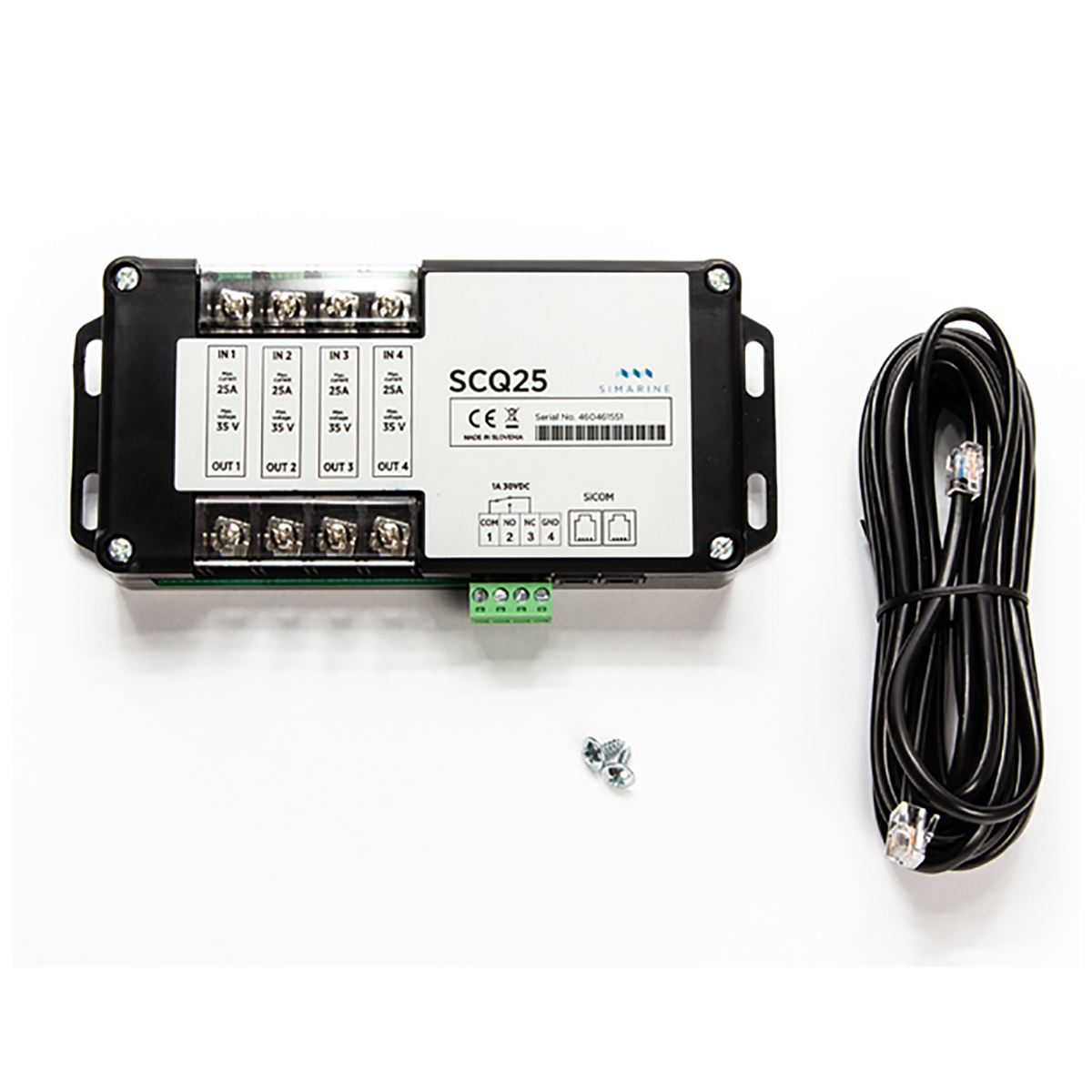

SCQ25T its an innovative combination of shunt, tank interface and voltage module with wide range of monitoring possibilities.
FEATURES
- Four current inputs for monitoring individual consumer and generator continuous currents up to 25A (35A peak) per input
- Can handle 12V or 24V systems, (same voltage used per device)
- Innovative protected architecture allows wiring in either negative (low) or positive (high) side. (same system used per device)
- Very convenient for monitoring smaller consumers like refrigerator or generators like solar, wind, hydro or shore power.
- Current channels can be combined for higher amperage, meaning 2 x 25A channels can be used for measuring up to 50A.
- Up to five modules can be connected simultaneously to monitor up to 20 current channels with PICO Battery Monitor.
- Assignable NO or NC output relay.
Plus it is equipped with:
Four resistance inputs for resistance-type tank level or temperature sensors and
- Three voltage inputs for voltage-type tanks sensors and battery voltages allows wide connection possibilities.
- Assignable relay output NO or NC.
It receives its power to operate via the twisted pair communication cable from the splitter power block.
It is a versatile module for monitoring:
- Tanks of all descriptions
- Temperature sensors
- Battery voltage
- Inclinometer inputs (x and Y need an input each)
- AC current sense
- Irradiation sensor for solar performance
SPECIFICATIONS
|
Operating |
|
|
Voltage Range |
6-35 V |
|
Temperature Range |
-20 to +70°C |
|
Power Consumption at 12V |
|
|
Operating |
3,5 mA |
|
Current Measuring Channels |
4 |
|
Current Measuring Range |
|
|
Per Channel |
0,01 – 50A |
|
Accuracy |
±0,6% |
|
Resolution |
0,01A |
|
Sampling Rate |
100ms |
|
Maximal Current |
|
|
Continuous |
25A |
|
Peak Current (<1 min) |
35A |
|
Peak Current (<5 sec) |
50A |
|
Voltage Drop at 25 A |
35 mV |
|
Maximal Voltage on Connections |
35 V |
|
Voltage Inputs |
|
|
Range |
0-35 V |
|
Resolution |
1 mV |
|
Accuracy |
±0,2% |
|
Sampling Rate |
100ms |
|
Resistance inputs |
|
|
Range |
0 ohm – 65 kohm |
|
Accuracy |
±3,0% |
|
Number of Connections |
Total number of 7 voltage and resistance inputs + 4 x 25A current inputs |
|
Tank level sensors |
7 (both Voltage and Resistance). If resistance used for temperature then only 3 Tank Sensors |
|
Temperature sensors |
4 (resistance only) |
