Description

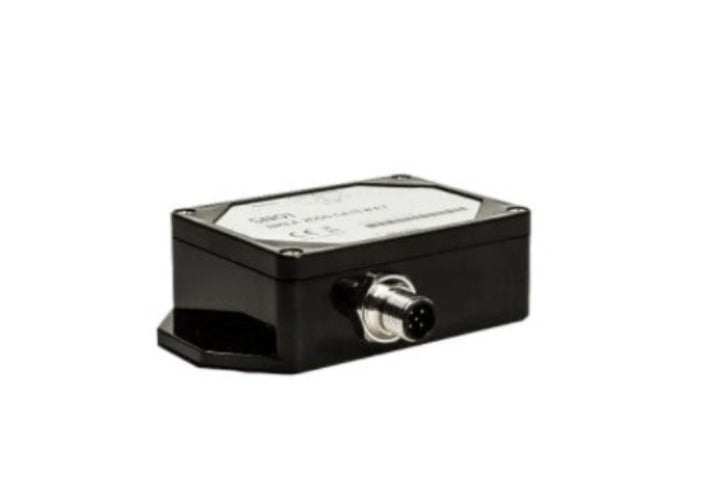

Simarine SN01 SiCOM NMEA 2000 gateway module allows your PICO to transmit and receive information from certain devices connected to an existing NMEA 2000 network. It allows control of switch banks, transmitting battery status, tank levels and some environmental information. Using the gateway, PICO can also display a range of engine and transmission parameters if they are connected to the NMEA network.
Operating
- Power source voltage range 6 – 35
- Temperature range -20 – +70 °C
- Power consumption at 12 V
- Operating 0.8 mA
- Dimensions 183x91x34 mm
Connectivity Up to
- NMEA 2000 backbone 1
- SICOM port 2
PGN PGN Name receiving transmitting
- 59904 ISO Request Yes No
- 60928 ISO Address Claim Yes Yes
- 126996 Product Information No Yes
- 127257 Attitude No Yes
- 127502 Switch Bank Control No Yes
- 127505 Fluid Level No Yes
- 127506 DC Detailed Status No Yes
- 127508 Battery Status No Yes
- 130310 Environmental Parameters No Yes
- 130314 Actual Pressure No Yes
