Description
FEATURES

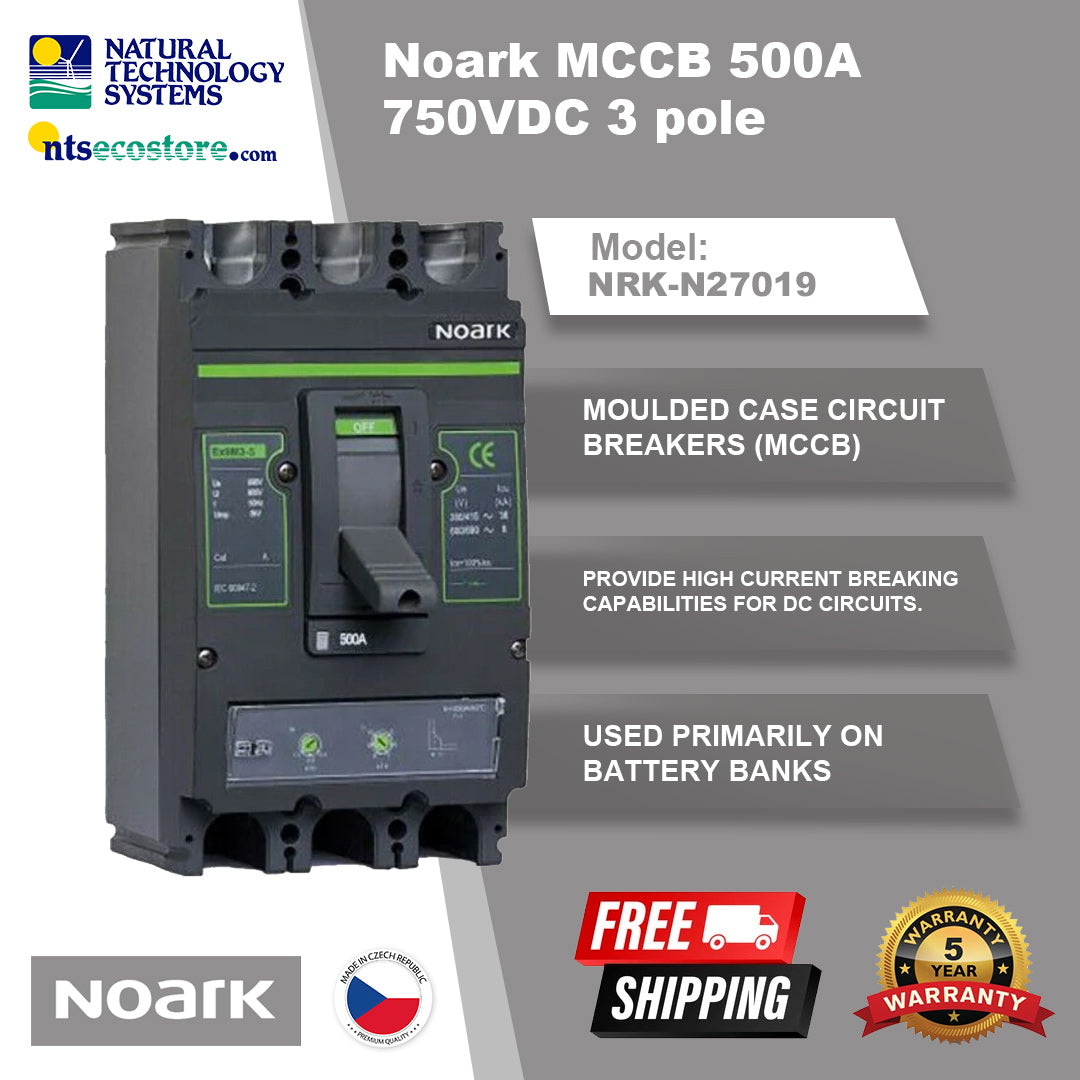

Noark Moulded Case High Current DC Circuit Breakers (Non-Polarized)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standards NH fuse bases.
Model No: N27019-3P-MCCB 500A/750 VDC
Selling Unit: Each
Categories: DC Circuit Breakers
Moulded Case Circuit Breakers
Noark Moulded Case Circuit Breakers

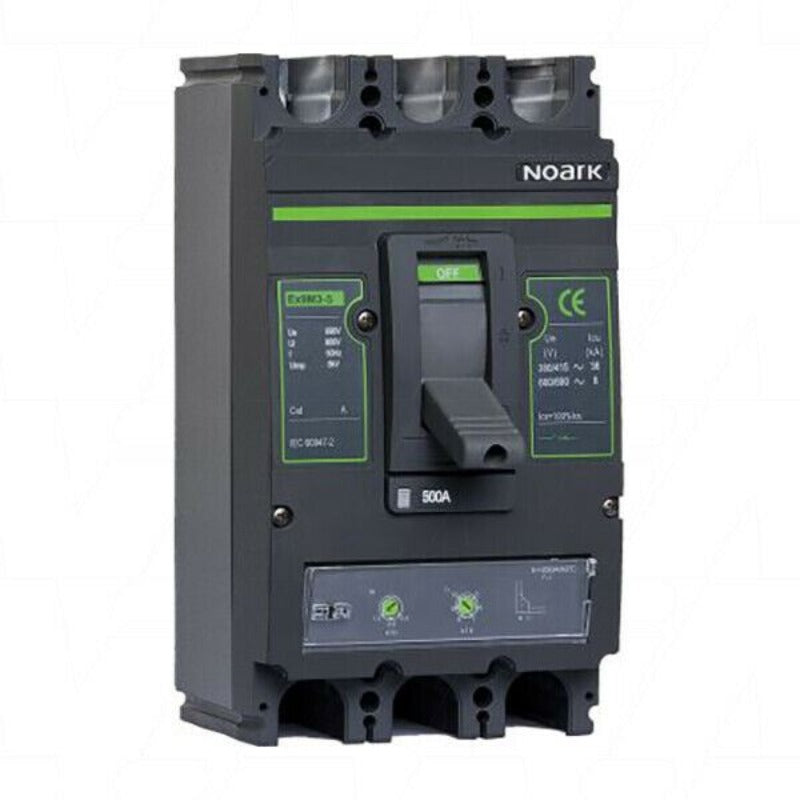

Description: N27019 MCCB EX9MD4B 500A 750V 3 Pole DC Circuit Breaker
Application: Battery Bank, Solar, Automation, Control, Telecommunications, DC Circuit applications
SPECIFICATIONS
Voltage: 750V
Brand: Noark
Size: 500A
Width: 300mm
Height: 142mm
Length/Breadth/Depth 195mm
Weight: 10200g
Noark Series: EX9MD4B TM DC500 3P
Poles: 3 (250VDC per pole)
Current Ratings (A): 500A
Voltage (Max.): 750VDC
Rated Insulation Voltage (VDC)Ui: 1000 VDC
Rated Breaking Capacity: 25kA
Release Technology: Thermo Magnetic
Frame Size: 4
Frame Rating: 630A
IP Rating (All sided/terminals): IP40 / 20
Standards: IEC/EN/AS60947-2
