Description
FEATURES

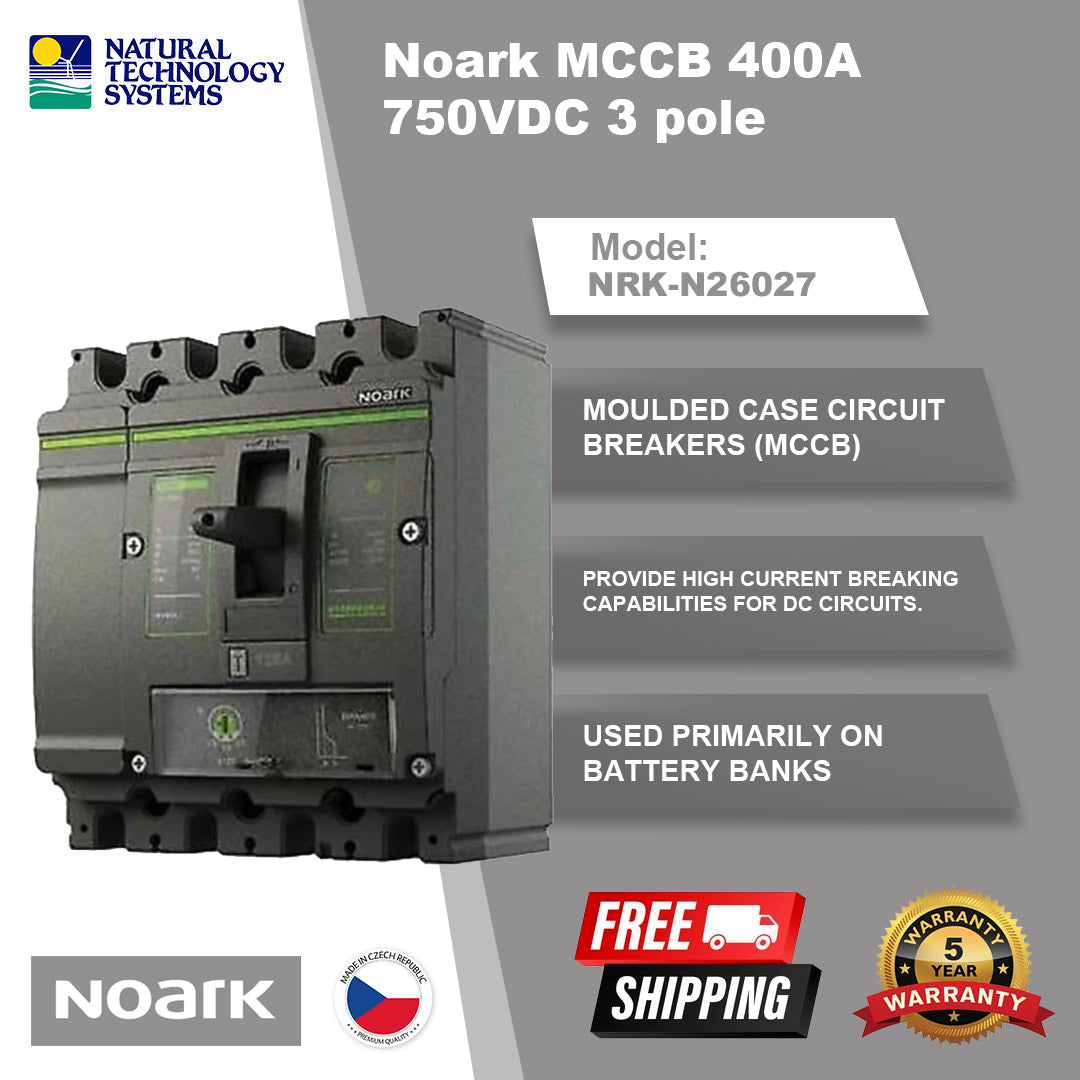

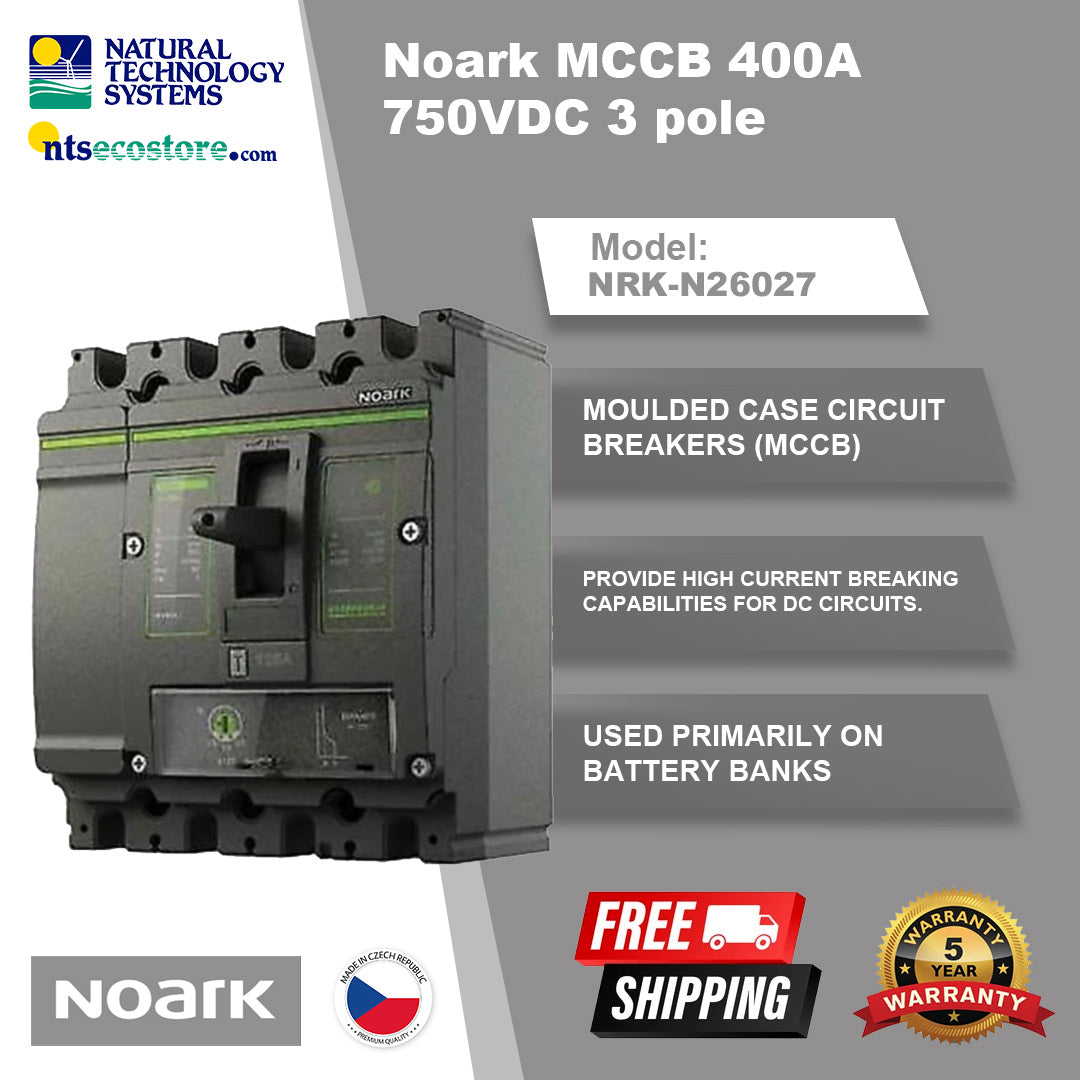

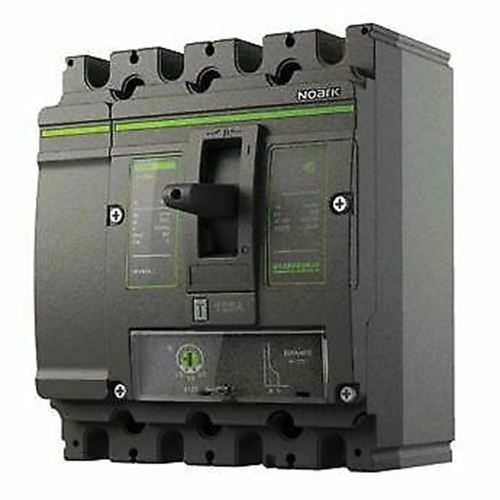

Noark Moulded Case High Current DC Circuit Breakers (Non-Polarized)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standards NH fuse bases.
Model No: N26027-3P-MCCB 400A/750VDC
Selling Unit: Each
Categories: DC Circuit Breakers
Moulded Case Circuit Breakers
Noark Moulded Case Circuit Breakers
Description: N26027-3P-MCCB 400A/750VDC 3 Pole DC Circuit Breaker
Application: Battery Bank, Solar, Automation, Control, Telecommunications, DC Circuit applications
SPECIFICATIONS
Voltage: 750V
Brand: Noark
Size: 400A
Width: 255mm
Height: 118.5mm
Length/Breadth/Depth: 140mm
Weight: 5000g
Noark Series: EX9MD3B TM DC400 3P
Poles: 3 (250VDC per pole)
Current Ratings (A): 400A
Voltage (Max.): 750VDC
Rated Insulation Voltage (VDC)Ui: 1000 VDC
Rated Breaking Capacity: 25kA
Release Technology: Thermo Magnetic
Frame Size: 3
Frame Rating: 400A
IP Rating (All sided/terminals): IP40 / 20
Standards: IEC/EN/AS60947-2
