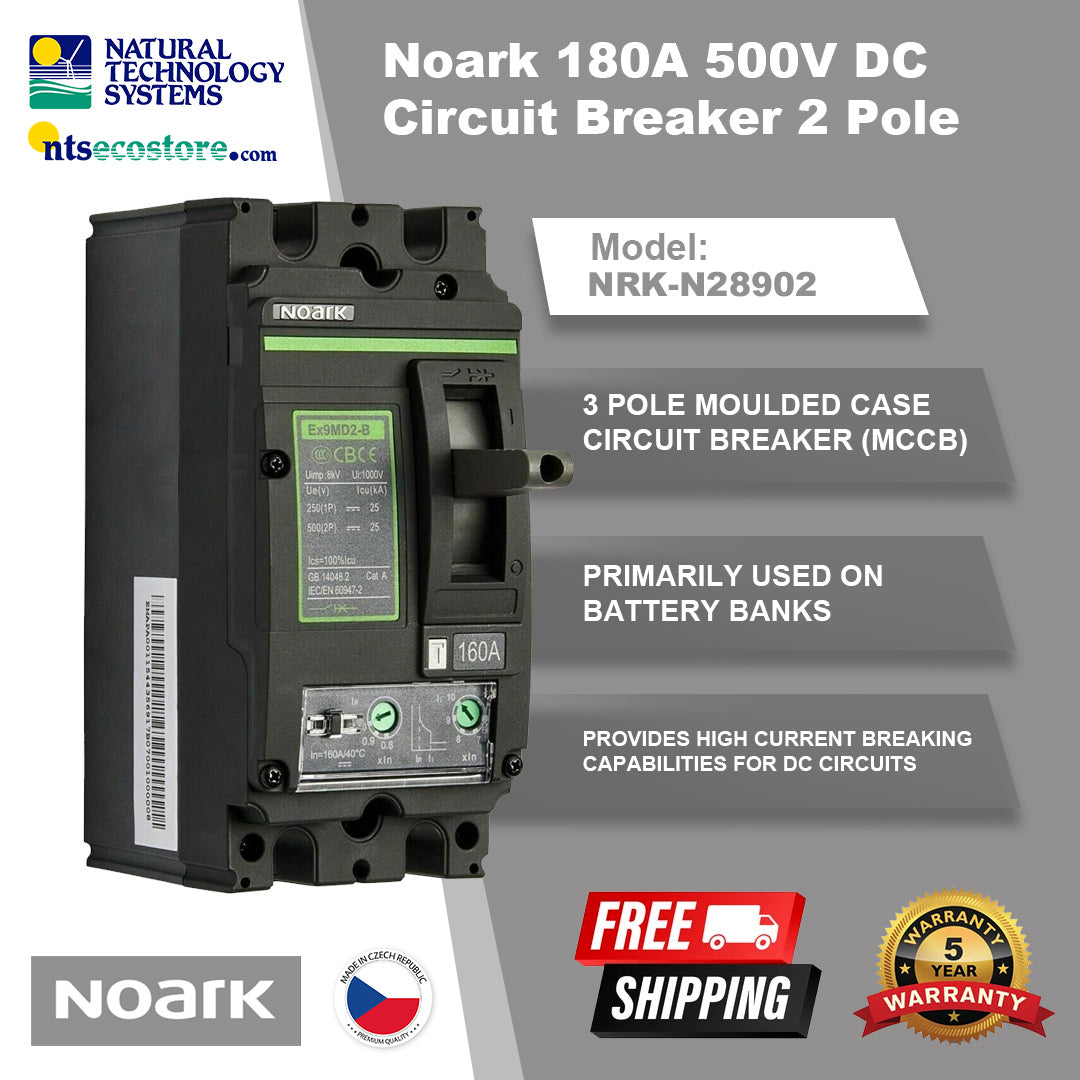

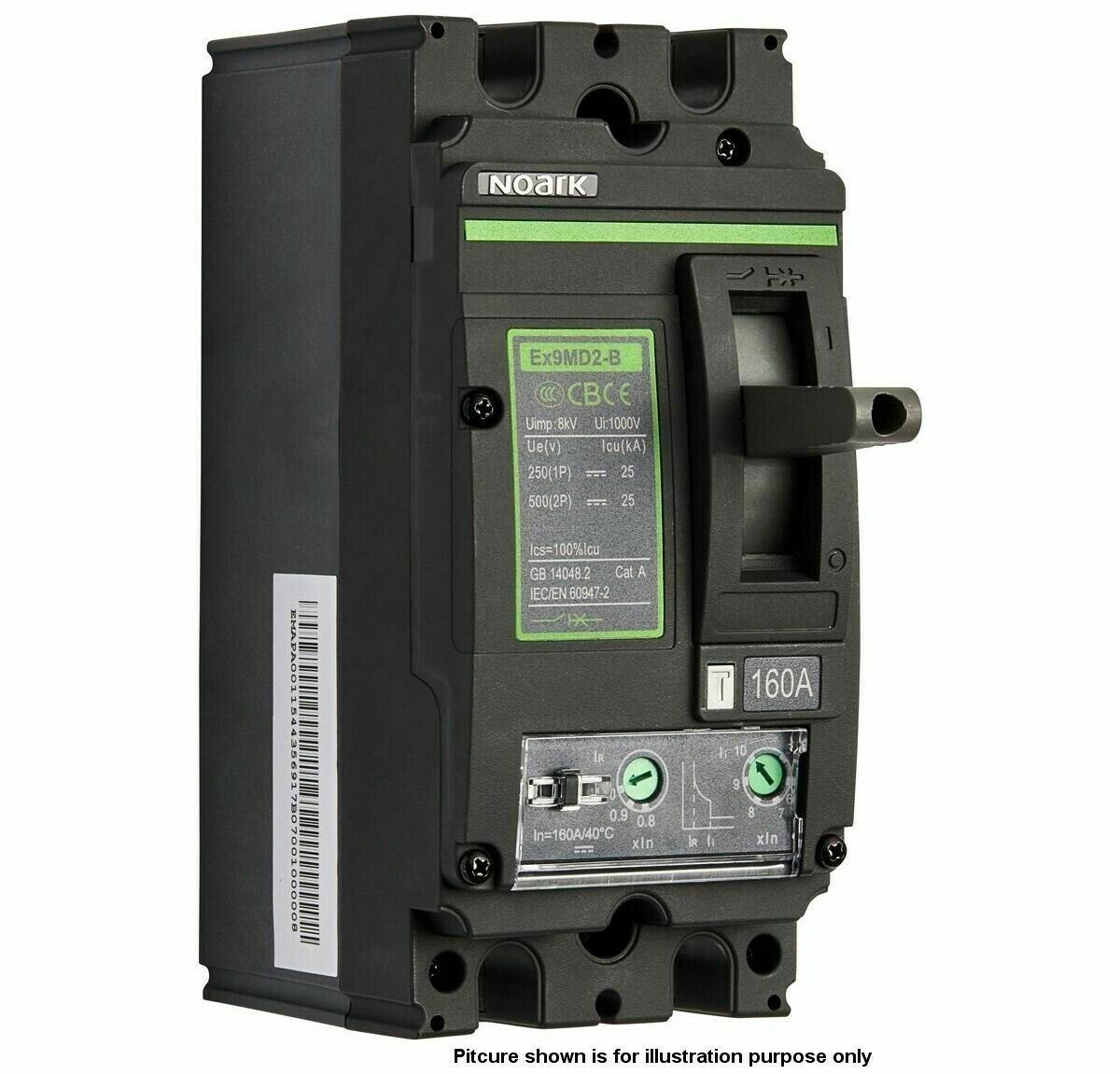

Noark 180A 500V DC Circuit Breaker 2 Pole (NRK-N28902)

The Noark 180Amp 500V DC 2 Pole Moulded Case Circuit Breaker (MCCB) primarily used on battery banks, provides high current breaking capabilities for DC circuits.



180A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarized - EX9MD2B TM DC180 2P

FEATURES

The Ex9 Series - M offers:

Frame size 2 - 105 x 157 x 126mm

High-breaking capacity and a new patented arc extinguishing design

New patented technology reduces the manual operating force

High quality compact modular with energy saving and environmentally friendly design

Installation flexibility: Bus Bar Connection, Lug Line/Load Side Connection, Plug-In and Rear Connection

SPECIFICATIONS

Fixed and adjustable trip setting units

Certified to EN 60947

DC switching voltage:

250V DC per pole e.g. 2 pole = 500V DC

Rated Voltage: 500V DC

Insulation Rated Voltage: 1000V

Frame Size 2: to 250A

Breaking Capacity: 25kA

Release Technology: Thermo-magnetic

IP Protection: IP40 All Side | IP20 Terminal

Poles 2
