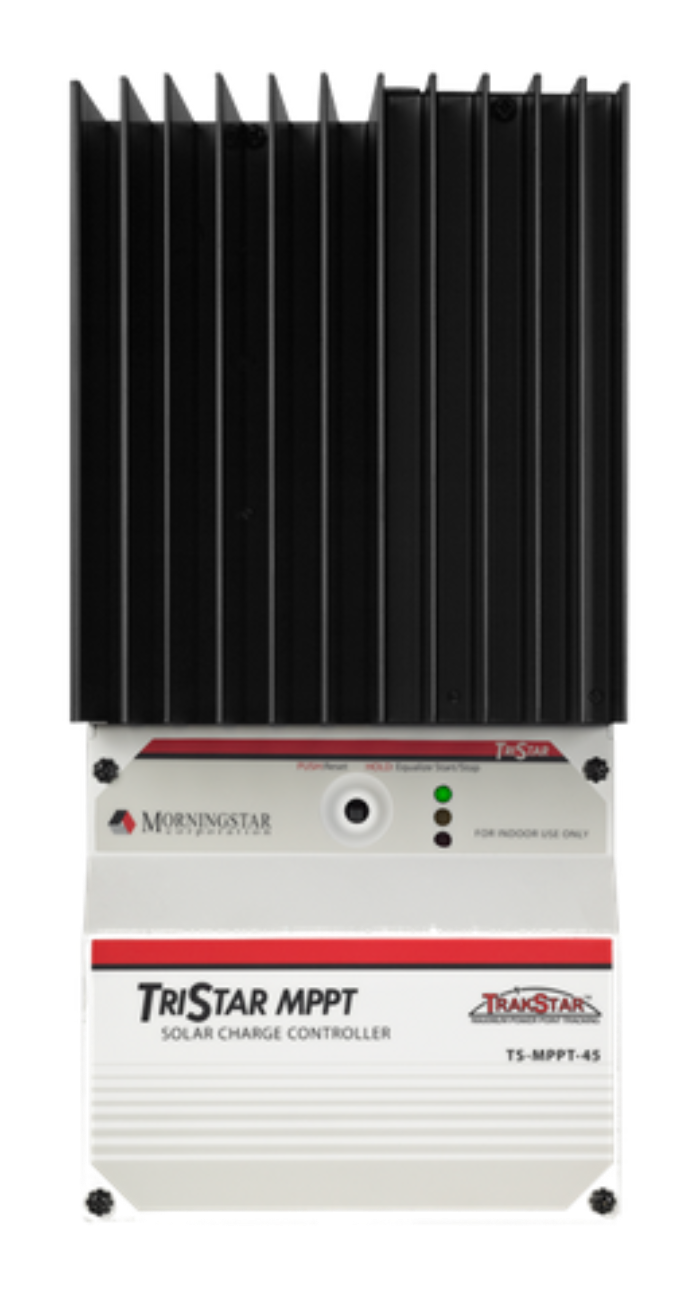

Morningstar TriStar MPPT Controller 45Amp Reg SR-TS-MPPT-45

Sale price$1,320.00



Morningstar TriStar MPPT Controller. 30, 45 or 60 amps / 12 to 48 volts.

The Morningstar TriStar MPPT with TrakStar Technology is an advanced maximum power point tracking controller for off-grid solar systems up to 3kWp.

  • Maximizes Energy Harvest – Better peak power tracking than other MPPT controllers.
  • Very High Efficiency – the industry’s highest peak efficiency of 99% for off-grid charge controllers.
  • Extensive Networking & Communications – Enables system monitoring, data logging and adjust ability. On board Ethernet is included on the TS-MPPT-60.


Model TS-MPPT-30 TS-MPPT-45 TS-MPPT-60
Maximum Battery Current 30A 45 A 60 A
Nominal Max. Solar Input
12V 400Wp 600Wp 800Wp
24V 800Wp 1200Wp 1600Wp
48V 1600Wp 2400Wp 3200Wp
Peak Efficiency 99%
Nominal System Voltage 12/24/36 or 48VDC
Max. Solar Open Circuit Voltage 150VDC
Battery Operating Voltage Range 8 – 72VDC
Max. Self-consumption 2.7 Watts
Transient Surge Protection 4500 Watts / port
Ambient Operating Temperature –40°C to +60°C
Terminal 35 mm
Weight 4.20 kg
Dimensions 29.1 x 13.0 x 14.2 cm
Warranty 5 year
