Latronics LS Inverter 24V 4000W LS4024

Sale price$4,102.00


**Please Note: Effective from April 2020**

(a) All Medium sized Latronics Inverters (1000W-1800W) come with an option of Junction Box or GPO.

(b) All Small sized Latronics Inverters (500W-600W) come with the standard GPO.
(c) All Large/X-Large Latronics Inverters (2000W-8000W) come with the standard Junction Box.

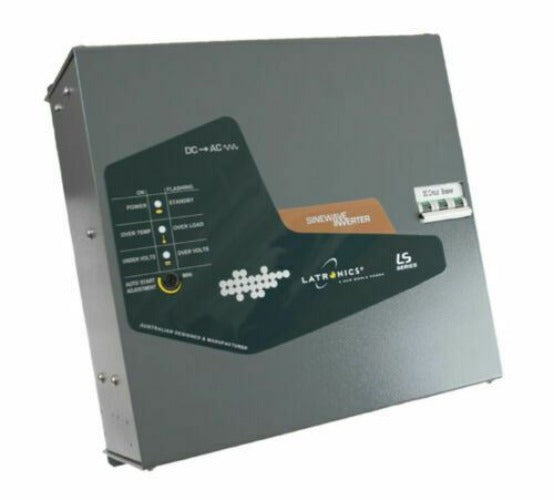

The Latronics LS Series Stand-alone inverters are powerful, and reliable and utilise advanced microprocessor algorithms to ensure your power conversion is pure and stable.

Wall Mounted Design

A wall mount design allows flexibility and ease of installation.

A true sinewave output with excellent surge power capacity enables the operation of demanding appliances, such as fridges, microwaves, washing machines and pumps.

Pure Sinewave Waveform

Pure sinewave output provides the ideal power source for modern electronics.

Robust design that protects itself against AC shorts.

Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.

Sophisticated circuitry provides protection against overload, short circuit, over temperature and battery low voltage shutdowns.

Fully selectable between 50/60Hz via a set of internal dip switches for international use. Auto-start circuitry automatically switches the inverter ON and OFF with applied appliances. The auto-start is an important feature as it maximizes valuable battery capacity. Sensitivity of the auto-start can be easily adjusted to either start small appliances or run continuously.

Latronics LS Series inverters are a quality industrial product customizable to withstand vibration and constant movement in mobile or marine installations, as well as the diverse range of home or commercial applications.

Latronics LS Series inverters are built for extreme environments using a recyclable powder coated aluminum casing.

High Efficiency Toroidal Transformer

Toroidal transformers provide outstanding efficiency and durability.

When sized correctly, our high surge rating allows easy starting of motors and high inrush current devices.

DC Circuit Breaker / Battery Isolator Switch

DC Circuit Breaker protects the inverter and cables from becoming a potential fire hazard under fault conditions, as well as providing isolation from your batteries while switched OFF.

The circuit breaker is designed for ease of operation and safety. If the Inverter shuts down due to Overload, Undervolts or Overvolts it can be reset. Full 3500V AC/DC isolation.

High quality, high current, heavy duty DC leads for low loss power delivery.

Simple at-a-glance LED lights keep the user informed of its status at all times.

A large range of options from custom voltages and alarm contacts to vibration proofing and conformal coatings are available.


INVERTER MODEL LS3024 LS3548 LS4024 LS5048 LS7048 LS8048
Nominal DC Voltage 24V 48V 24V 48V 48V  48V
Continuous Power 3000W 3500W 4000W 5000W 7000W  8000W
1/2 Hour Rating 3700W 4100W 4500W 6000W 8500W  9000W
Surge Rating (5secs) 9000W 10500W 12000W 15000W 20000W  22000W
Imput Voltage Range 21-34V 42-68V 21-34V 42-68V 42-68V  42-68V
Standby Current 50mA 40mA 60mA 55mA 60mA  60mA
Inverter ON-no Load 0.6A 0.33A 1.1A 0.47A 0.49A  0.50A
Peak Efficiency 93% 94% 94% 95% 95%  95%
Weight 22Kg 22Kg 37Kg 35Kg 38Kg  42Kg
Dimensions                                                   370mm(L) x 386mm (W) x 180mm (H)                                                                               475mm x 458mm x 187mm
Output Voltage 230Vac +/-4%
Output Frequency 50Hz +/-0.1%
Output Waveform True Sinewave
THD <4%
Power Factor All Conditions
Autostart Sensitivity 0 - 20W Adjustable
Operating Temperature -20° C to +40°
DC to AC Isolation 3500 V
Protection Circuitry Overtemperature, Overload/Short Circuit, Battery Undervoltage/Overvoltage
Battery Leads 1.5M Long with 10mm Mounting Lugs
AC Output Wiring 3 Terminal Hardwired Junction Box, Labelled 'AC Output'
AC Input Wiring Only with KX Option - 3 Terminal Hardwired Junction Box, labelled 'AC Input'
AC Transfer Switch Only with KX opton - 240Vac, 40 Amps, 50Hz, (Surge 80A 0.5Seconds)
Chassis Powder Coated 3mm Aluminium                                                                                                        P.C  4mm Aluminium
Warranty 3 Years Parts and Labour
Standards IEC62109-1, IEC62109-2, AS3100, EN55014 & RCM


Latronics LS Series Stand-alone inverters are backed by our manufacturer’s warranty: two years for 500W-1800W models and three years for 2000W-7000W models.
